Model: LG GH22LP20 22x "Super-Multi" DVD±RW/RAM
Manufacturer: LG Electronics
Provided By: LG Electronics USA
LG Electronics has been a leader in the industry for nearly 50 years. Since the introduction of their first radio in 1959, the company has grown to become one of the world's top electronics manufacturers, offering everything from large home appliances to tiny mobile phones. LG is no stranger to the optical storage industry either. Working closely with companies like Hitachi, they've lead the way in this area, developing and manufacturing a wide range of products, including the industry's first "Super-Multi" drives.
While Blu-ray is slowly gaining momentum, the DVD has a lot of life left in it. Companies like LG continue to push the limits of the format, developing drives with new features and faster DVD writing speeds. This spring, LG introduced one of the world's first 22x DVD writers, the GH22LP20. This new "Super-Multi" drive is capable of 22x DVD±R, 16x DVD±R DL, 8x DVD+RW, 6x DVD-RW and 12x DVD-RAM writing speeds and a maximum DVD read speed of 16x. The GH22LP20 also boasts an impressive list of features including HP's LightScribe Direct Disc Labeling system and LG's new SecurDisc technology. With SecurDisc, users can protect their data against unauthorized access and increase the chances of it being recovered should the disc become damaged.
With features and specs like this, it's hard not to be impressed by LG's new "Super-Multi" drive. To give you an idea of what to expect from the GH22LP20 we'll take a look at its features and then see how it compares to some of the 20x DVD±RW drives from the competition. Does LG's new drive have what it takes? Is it the fastest DVD writer around? We'll answer these questions and more as we take a look at the LG GH22LP20.
The GH22LP20 we received from LG was the bulk, or OEM, version. While they were able to provide a copy of the "Quick Set-Up Guide" and the software CD, the drive did not come with anything else.
Physical Features:
The drive that LG sent us for this review was manufactured in April of 2008 and had firmware version 1.00. At the time of this review, this is the only official firmware available for the GH22LP20.
From the front, the GH22LP20 looks very similar to LG's previous "Super Multi" drives. It shares the same basic design and has many of the same logos. Along with the large "LG" logo, you can see a few showing support for Ultra Speed CD-RW media and theDVD+ReWritable and DVD Multi specifications.
The look of LG's "Super Multi" drives hasn't changed much over the last few years. While they've gotten new features and faster speeds, the basic design has remained the same. As you can see, the GH22LP20 is no exception. Aside from the new "SecurDisc" logo, there really isn't much of a difference between it and LG's previous "Super Multi" drives.
Below the tray you can see the GH22LP20's single LED. Off by default, this LED lights up green whenever the drive is reading or writing.
The rear of the GH22LP20 is fairly straight forward. By looking at the picture below you can see the drive's IDE interface, power connector and audio output connectors.
Starting from the left of the IDE connection you'll see the jumper switch for master, slave and cable select. By default the drive's jumper position is set to master. Next to the jumper block is the analog audio connector. The connector on the far left is the digital audio output.
Technical Specs:
Most of the specs below have been taken from LG's website and the guide that came with the drive.
LG GH22LP20 22x DVD±RW/RAM | |
CD Write Speeds | 48x, 40x (CAV) 24x (Z-CLV) 16x (CLV) |
CD Rewrite Speeds | 32x, 24x (Z-CLV) 16x, 10x, 4x (CLV) |
DVD+R Write Speeds | 22x, 20x, 16x (CAV) 12x (P-CAV) 8x (Z-CLV) 4x, 2.4x (CLV) |
DVD+RW Write Speeds | 8x (Z-CLV) 6x, 4x, 2.4x (CLV) |
DVD-R Write Speeds | 22x, 20x, 16x (CAV) 12x (P-CAV) 8x (Z-CLV) 4x, 2x (CLV) |
DVD-RW Write Speeds | 6x (Z-CLV) 4x, 2x, 1x (CLV) |
DVD+R DL Write Speeds | 16x (CAV) 12x, 10x (P-CAV) 8x, 6x (Z-CLV) 4x, 2.4x (CLV) |
DVD-R DL Write Speeds | 16x (CAV) 12x, 10x (P-CAV) 8x, 6x (Z-CLV) 4x (CLV) |
DVD-RAM Write Speeds | 12x, 8x, 6x, 5x (P-CAV) 3x, 2x (CLV) |
CD Read Speeds | 48x Max (CD-ROM/CD-R) 40x Max (CD-RW) |
DAE Speed | 40x Max |
DVD Read Speeds | 16x Max (DVD-ROM Single Layer) 12x Max (DVD-ROM Dual Layer) 16x Max (DVD±R) 12x Max (DVD±RW) 12x Max (DVD±R DL) 6x Max (DVD-Video) 12x, 5x, 3x, 2x (DVD-RAM) |
Buffer Size | 2MB |
Access Times |
120 ms (CD-ROM) 140 ms (DVD-ROM) 200 ms (DVD-RAM) |
CD Formats | CD-Audio CD-ROM CD-ROM/XA CD-R CD-RW Photo CD Video CD CD-Extra CD-Bridge CD-I FMV CD-Text |
DVD Formats | DVD-ROM DVD-R/RW DVD+R/RW DVD+R DL DVD-R DL DVD-RAM |
CD Recording Modes | Disc At Once Session At Once Track At Once Packet Writing |
DVD+R Recording Modes | Sequential Recording |
DVD+RW Recording Modes | Random Write |
DVD+R DL Recording Modes | Sequential Recording |
DVD-R Recording Modes | Disc At Once Incremental Recording |
DVD-RW Recording Modes | Disc At Once Incremental Recording Restricted Overwrite |
DVD-R DL Recording Modes | Disc At Once Incremental Recording Layer Jump Recording |
DVD-RAM Recording Modes | Random Write |
SecurDisc:

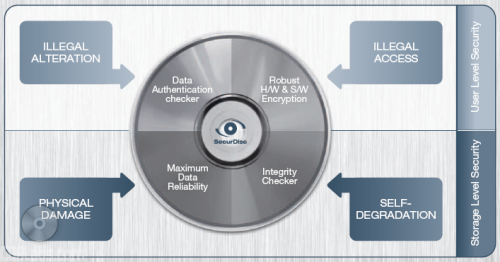

Developed by LG Electronics and Nero, SecurDisc protects data on optical media at both the user and storage levels. At the user level, it uses password protection and AES-128 encryption to prevent unauthorized access. While this concept is nothing new, SecurDisc adds an extra layer of security by utilizing a hardware and software-based solution. To prevent modification, a digital signature can be applied to data so that its authenticity can be verified.
At the storage level, SecurDisc uses checksums to verify data integrity and readability. Using this feature, you can check to see if your data has been altered due to the physical decay of the media. SecurDisc also increases reliability through a redundancy-based defect management system. By fully utilizing the empty space on a disc, the technology can greatly increase your chances of reading a damaged disc.
Nero recently expanded SecurDisc's capabilities to include the ability to copy-protect PDF files. When protected by SecurDisc, PDF's can only be read from the original DVD and cannot be copied to other media without the correct duplication password.
Right now, the only software capable of creating a SecurDisc CD or DVD is Nero Express 7. When you launch the program, you can see that there are two options on the "Data" menu. If you're writing to a CD-R or CD-RW disc, you'll want to create a SecureDisc Data CD. Likewise, you'll want to create a SecureDisc Data DVD when using DVD±R, DVD±RW, DVD±R DL and DVD-RAM media.

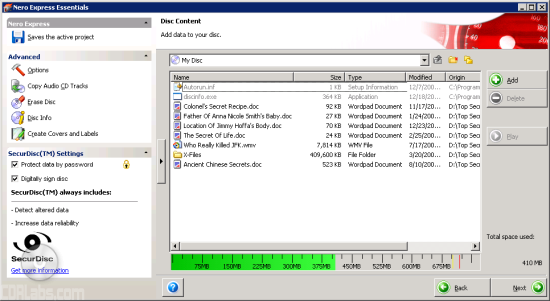

To add files to your compilation, click on the "Add" button or drag and drop them directly into Nero Express from Windows Explorer or My Computer. From here you can also password protect your files or digitally sign the disc using a private key. If you do not have a key, Nero Express can generate one for you.
Once you've provided the necessary information, Nero will burn the data to disc. During the burn process, SecurDisc's defect management system will fill the disc's empty space with redundancy and checksum data. This can add a considerable amount of time to the burn process. However, it will also increase the data reliability level. The higher the number, the greater the chance that you'll be able to recover your data if the disc becomes damaged.
As long as you're not using the PDF copy protection, nearly any drive can be used to read a disc burned with SecurDisc. Files that are not password protected can also be read without any special software. However, if you want to verify the authenticity of the disc's contents or access password protected files, you will need to install a compatible version of InCD or InCD Reader.
LightScribe:
Note: We took a much closer look at LightScribe technology in our review of the BenQ DW1625. In this review we'll just go over some of the basics and see how the GH22LP20 performs with the bundled software.
The GH22LP20 is one of the latest drives from LG to feature LightScribe technology. Developed by HP, LightScribe lets you burn durable, silk screen quality labels directly onto your CD's and DVD's using the same drive that burned the data. According to HP, it's as simple as burning the data, flipping the disc, and then burning the label.
Of course you can't do this with just any drive, media or software. While LightScribe capable drives use the same laser when burning both the data and label, they have to be able to accurately control the laser's focus and position as well as the spindle speed. They also must be able to recognize LightScribe media. These special discs have a thin dye coating on the label side that absorbs laser light. This triggers a chemical reaction that produces a color change, allowing the user to print text, artwork or graphics.
Even if you have a LightScribe capable drive and media, you will need software that supports it. Most major software companies have pledged support for the technology. However, at the time of this review, the list of compatible software is still relatively short. For the GH22LP20, LG turned to Nero. Using the bundled software you can both create and burn LightScribe disc labels.

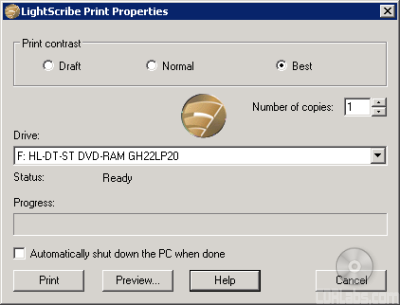

Once you've created your LightScribe label, you're ready to print it. Before you can do this though, you will need to choose the contrast. Keep in mind this option not only changes the level of detail, it affects the amount of time it takes to print the label. The higher the quality, the longer the process will take.

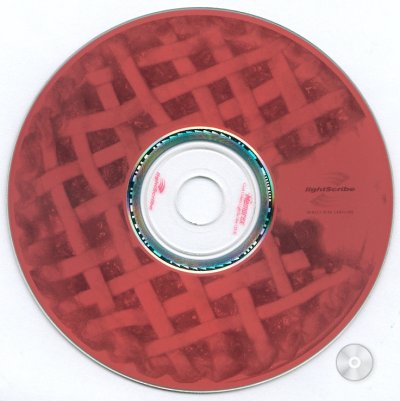

How long does it take to print a label? For testing purposes, we printed a disc using Memorex's LightScribe Cool Colors (v1.2) CD-R media, and the quality was set to "best". The results are shown below.
Memorex LightScribe CD-R (v1.2) - 23 minutes |
More Features:

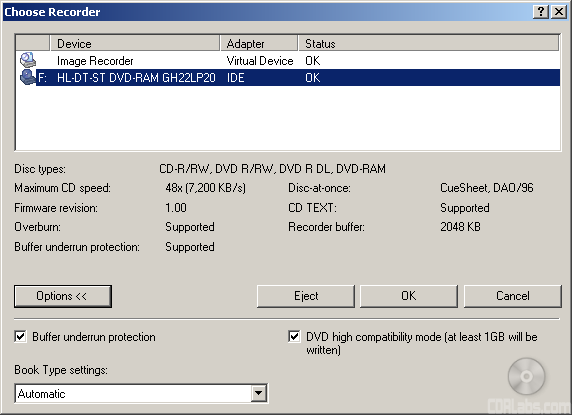

By looking at the picture below, you can see that LG's new DVD writer is identified as an "HL-DT-ST DVD-RAM GH22LP20".
The Nero screenshot also shows that the GH22LP20 has a maximum CD writing speed of 48x and a 2048KB buffer. This buffer is also backed up by some form of buffer underrun protection. In this case, the technology used is "Super Link." According to Nero, LG's new DVD writer can also write CD-Text and overburn. When testing the drive's capacity I found that the drive was able to overburn up to 93:54with CompUSA's 99 minute CD-R media.
Using Alex Noe's Weak Sector Utility we were able to determine that the GH22LP20 is a "two sheep" burner. This means that LG's drive is capable of backing up titles protected by SafeDisc 2, including version 2.51.
Here is a screen shot from Nero's InfoTool. This program queries the drive to see what its reading and writing capabilities are. InfoTool had no problems detecting the GH22LP20's maximum reading and writing speeds, recording modes, buffer underrun protection and 2MB buffer.
InfoTool also shows that the GH22LP20 is an RPC-2 DVD drive. This means that the drive's region is stored in the firmware. The drive's region can be changed five times and after that it cannot be changed anymore. Unfortunately, a patched RPC-1 firmware is not yet available for the GH22LP20.
While InfoTool gives us a quick glance at the GH22LP20's features, DVDINFOpro provides a little more information on some of the drive's reading and writing capabilities. By looking at the screenshot above you can see that while LG's new drive can read and write to DVD+R DL, DVD-R DL and DVD-RAM media, it does not support the Mt. Rainier format.

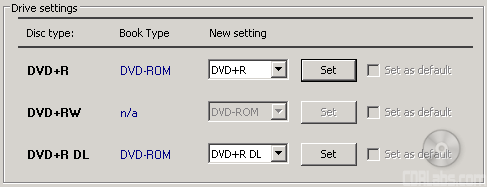

The GH22LP20 also supports a feature called "bitsetting." Using programs like Nero or CD Speed, you can set the book type of both DVD+R and DVD+R DL media to "DVD-ROM". For whatever reason though, the drive does not let you set the book type of DVD+RW discs.
The GH22LP20's software bundle is very similar to what LG has included with their previous DVD writers. The CD that comes with the drive contains a number of different applications from Nero including Nero Express 7, Nero BackItUp 2 and InCD 5 as well as PowerProducer 3.7 and PowerDVD 7 from CyberLink.
Nero Express 7 - With Nero Express, Nero has taken the features and performance people have come to expect from Nero Burning Rom and combined them with a user friendly interface. Redesigned to maximize ease-of-use, Nero Express gives users the ability to quickly and easily burn audio, data and video to CD or DVD.
The version of Nero Express that LG included with their new "Super Multi" drive is 7.11.3.0. You can download the latest version of the software from Nero's website.
Nero BackItUp 2 - If you're looking for a way to quickly and easily backup your data, Nero BackItUp is the answer. This program from Nero lets you backup your data to CD/DVD, hard drive, image recorderor another computer on your LAN.
InCD 5 - InCD is Nero's packet writing software. Like Roxio's Drag-to-Disc or Sonic's DLA, it allows a person to use their CD-RW or DVD±RW drive as a big floppy disk. The person can then drag and drop files onto a CD-RW or DVD±RW disc. Many people consider InCD to be one of the best packet writing tools because of its simplicity and performance.
CyberLink PowerProducer 3.7 - If you're looking for a quick and easy way to capture and edit your video, look no further than PowerProducer from CyberLink. Right from the start, this wizard-based software gives you a number of options to select from. From here you can choose to create a new movie disc, edit an existing one or transfer video directly to DVD.
While you can capture your own video, PowerProducer gives you the ability to import video files in a number of different formats. Once added to your production, you can use the built-in editor to trim, merge or split your video clips. PowerProducer also allows you to set chapters within the video content and add your own custom menus, backgrounds, fonts and titles.
CyberLink PowerDVD 7 - CyberLink's PowerDVD is one of the more popular software DVD players on the market right now. PowerDVD offers a complete set of navigation commands, including features like multi-angle viewing, dual subtitle display, digital zoom and parental controls.
PowerDVD can also be used to play back your VCD's, SVCD's or whatever video files you might have on your hard drive. Unfortunately, the version of PowerDVD bundled with the GH22LP20 only supports 2 speaker output. If you want to play DVD's with surround sound, you'll need to buy an upgrade first.
With the GH22LP20, LG has delivered one of their most feature packed DVD writers to date. Their new "Super Multi" drive not only supports all major DVD formats, it sports some of the fastest DVD reading and writing speeds available. The GH22LP20 is capable of 22x DVD±R, 16x DVD±R DL, 8x DVD+RW, 6x DVD-RW and 12x DVD-RAM writing speeds and a maximum DVD read speed of 16x. LG's new drive also supports technologies like LightScribe and SecurDisc and includes a great software bundle from Nero and CyberLink. With all this, it's easy to see why the LG GH22LP20 gets the full 10 points for its features.
Like the other LG drives we've reviewed, the GH22LP20 was very easy to install. From start to finish, the entire process took only a few minutes. I took the drive out of its bag, left the jumper set to master and installed it on the secondary IDE chain by connecting the IDE cable and power connector. When I turned on the computer the BIOS detected it as a drive supporting UDMA 66. After making sure that DMA was enabled in the Device Manager, I was ready to start installing the software.
Software Installation:
As I mentioned earlier, the GH22LP20 comes with a CD full of software from CyberLink and Nero. If you have autorun enabled, the menu pictured below will automatically come up when you insert the disc. From here you can read about the various applications, check out the manual or install the two software suites.
Installing Nero 7 Essentials is pretty straightforward. By default the setup program will install the entire suite onto your computer. If you don't want to install everything, select the custom installation. From here you can choose the components you want. Once you reboot, you'll be ready to start burning your own discs.
The software CD also contains the CyberLink DVD Suite. To start the setup process, select "Install CDS" from the main menu. From there, it's as simple as choosing the components you want, clicking next a few times and then waiting for the files to be copied over.
The Documentation:
Most of the GH22LP20's documentation is located on the software CD in electronic format. While LG has gone out of their way to provide a nice interface, the documentation is in PDF format and will require you to install Adobe Acrobat before it can be read.
Electronic format aside, the manual is a good example of what we've come to expect from LG. It starts out by going over the system requirements and the functions of the various buttons and connectors located on the front and back of the GH22LP20. While the diagrams are small, they are clearly labeled and easy to understand.
From here, the manual jumps into the physical installation of the drive. The instructions cover all the basics including how to set the jumpers, install the drive into an empty drive bay and hook up the cables. LG also provides a number of small diagrams showing what exactly a master or slave configuration should look like. The manual finishes up by going over the basic operation of the GH22LP20. It explains how to insert and eject DVD's and how to get a disc out of the drive in case of an emergency. Unfortunately, the manual doesn't include any information on the GH22LP20's LightScribe and SecurDisc technologies.
The GH22LP20 also comes with a "Quick Set-Up Guide." Like the manual, this fold out guide contains a good amount of information, including the drive's features, specs and system requirements. The guide also contains a set of instructions that take you step by step through the installation process. While a little short on words, there are plenty of diagrams showing what to do. For most people, the "Quick Set-Up Guide" will be all they'll need to get the drive up and running.
In the end, installing the GH22LP20 was very easy. I had no problems getting the drive or the software installed and working. If you do run into trouble, the documentation LG has provided is more than sufficient. However, I would have liked to have seen a little more information on LightScribe and SecurDisc. With this in mind, I give the installation an 8 out of a possible 10.
While CPU, memory, OS and other variables don't often make a huge difference, there are some nonetheless. We have a computer that is used only for testing hardware. We do this so all tests can be compared reliably.
Test System:
CPU: | AMD Athlon 64 X2 4600+ 2.4GHz | |
Motherboard: | Lite-On M2N-SLI Deluxe with BIOS 0304 | |
Memory: | Corsair TWIN2X2048-6400 | |
Video Card: | MSI NX7900GT-T2D256E - ForceWare v93.71 | |
Hard Drive: | Seagate Barracuda 7200.10 SATA 3.0Gb/s 320GB | |
Operating System: | Windows XP SP2 - NVIDIA nForce v9.16 |
For DVD writers the performance tests are broken down into four sections: CD read, CD write, DVD read and DVD write tests. Each benchmark test has been run three times. The score given is an average of the three. DMA has been enabled in device manager for all IDE devices supporting it.
CD Read Tests: For the read performance section of the CD-ROM benchmarks, CD WinBench 99 and CD Speed are used to test transfer speeds, seek times and CPU usage. For DAE testing, CD Speed is used to give an overall speed rating and is used in combination with CD DAE to see how well a drive reads scratched and dirty discs.
CD Write Tests: To test the write speeds, Nero Burning Rom is used to write 700MB to our test media. Times are recorded. To test rewrite scores, Nero is used again to time how long it takes to write 400MB of random files and directories. Then Sonic's DLA is used to test packet writing speeds. The same files are copied and pasted in Windows Explorer and timed.

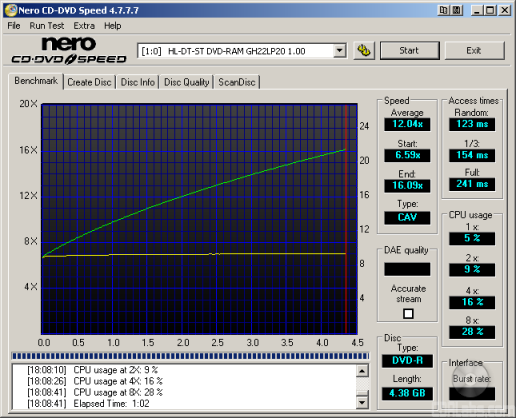

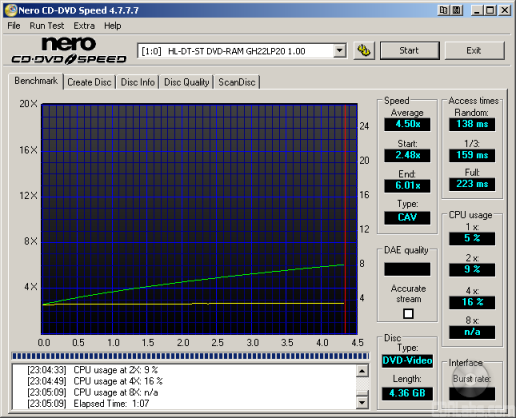

DVD Read Tests: For the read performance section of the DVD benchmarks CD Speed is used to test read speeds, seek times, and CPU usage.
DVD Write Tests: To test the DVD write speeds, Nero Burning Rom is used to write 4GB to our test media. Times are recorded. Then Sonic's DLA is used to test packet writing speeds. The same files are copied and pasted in Windows Explorer and timed.
CD Winbench 99 Scores:
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
CD Winbench 99 | 2047 KB/sec | 2140 KB/sec | 2037 KB/sec | 1638 KB/sec |
Transfer Rate: Inside | 3170 KB/sec | 3040 KB/sec | 3040 KB/sec | 3060 KB/sec |
Transfer Rate: Outside | 6470 KB/sec | 6450 KB/sec | 6420 KB/sec | 6390 KB/sec |
Random Access Time | 93ms | 96ms | 91ms | 100ms |
CPU Utilization | 4.27% | 3.12% | 0.46% | 0.45% |
The CD Winbench test is as close as we can get to testing every day usage. It fires off eight different applications using scripts. This tries to mimic the activities of a person loading these programs onto their own computer.
LG's new "Super-Multi" drive performed pretty well in our CD Winbench tests. While the GH22LP20's overall score wasn't as high as the Samsung's, it had a low access time and some fairly good transfer rates. It started reading at about 21.1x (3170 / 150) on the inside and reached a maximum speed of about 43.1x (6470 / 150) on the outside.
CD Speed v4.7.7.7 - Pressed CD:
For this test I used a pressed CD containing one Mode 1 data track. The disc is 74:38 in size and is full of data and directories.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
35.59x 20.56x 47.15x |
35.96x 20.75x 47.55x |
35.81x 20.82x 47.36x |
35.57x 20.47x 47.04x |
Seek Times Random: 1/3: Full: |
101ms 107ms 171ms |
102ms 105ms 177ms |
98ms 110ms 184ms |
103ms 104ms 174ms |
CPU Usage 1x: 2x: 4x: 8x: |
0% 1% 2% 4% |
0% 1% 2% 4% |
6% 1% 2% 4% |
0% 1% 2% 4% |
When reading pressed CD's, the GH22LP20 is rated at 48x. Unfortunately, like the GSA-H55L, it came up short of this mark. In our tests, the drive started reading at 20.56x but reached a maximum transfer speed of only 47.16x. Nevertheless, the GH22LP20's seek times were pretty good.
CD Speed v4.7.7.7 - CD-R Media:
For this test I made a copy of our pressed test CD. I used 12x rated Memorex Gold 74 minute media for the tests.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
36.36x 20.74x 48.20x |
31.30x 17.98x 41.48x |
36.59x 21.12x 48.50x |
36.35x 20.75x 48.16x |
Seek Times Random: 1/3: Full: |
102ms 111ms 175ms |
96ms 104ms 174ms |
105ms 116ms 181ms |
108ms 119ms 178ms |
CPU Usage 1x: 2x: 4x: 8x: |
0% 1% 2% 4% |
0% 1% 2% 5% |
6% 4% 3% n/a |
0% 1% 2% 4% |
The GH22LP20 was a little faster when reading CD-R media.While this wasn't enough to top the drive from Lite-On, it had no problems reaching a maximum transfer speed of 48x in our tests. Looking at the other scores, you can see that the drive's seek times were again quite good.
LG's new DVD writer had no problems recognizing our 99 minute CompUSA media. The GH22LP20 read our test disc from start to finish, reaching a maximum transfer speed of 51.87x.
CD Speed v4.7.7.7 - CD-RW Media:
For this test I made a copy of a pressed test CD. I used some PNY 80 minute CD-RW media for the tests.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
31.25x 18.11x 41.29x |
30.74x 17.86x 40.60x |
30.12x 17.61x 39.78x |
31.24x 18.10x 41.27x |
Seek Times Random: 1/3: Full: |
102ms 111ms 171ms |
97ms 106ms 176ms |
102ms 112ms 182ms |
106ms 118ms 177ms |
CPU Usage 1x: 2x: 4x: 8x: |
0% 1% 2% 4% |
0% 1% 2% 5% |
0% 4% 3% 93% |
0% 1% 2% 4% |
While the GH22LP20 can read pressed and CD-R media at 48x, its CD-RW read speeds are limited to only 40x. As you can see, the drive had no problems reaching this speed in our tests.
CD DAE and CD Speed v4.7.7.7 (DAE) - Pressed CD:
For this test I used Pure Funk. The CD is almost exactly 74 minutes. This helps to squeeze the maximum performance out of the CD.
Exact Audio Copy can tell us a lot about a drive's capabilities. You can see from the screen shot that while the LG GH22LP20supports accurate stream, it does not cache audio data nor does it have the ability to retrieve C2 error information from the CD.
CD Speed | LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
Average: Start: End: DAE Quality: Accurate Stream: |
31.44x 18.21x 41.56x 10 Yes |
30.93x 17.76x 40.86x 10 Yes |
30.30x 17.64x 40.03x 10 Yes |
31.43x 18.12x 41.52x 10 Yes |
The GH22LP20 did fairly well in our DAE tests. While not nearly as fast as some of the other DVD writers we've tested, it hadno problems ripping pressed audio CD's at 41x.
CD DAE and CD Speed v4.7.7.7 (DAE) - CD-R Media:
For this test I used a copy of the Pure Funk CD. It's burned onto the same Memorex Gold 74 minute media I used in the CD Speed tests.
CD Speed | LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
Average: Start: End: DAE Quality: Accurate Stream: |
31.15x 18.15x 41.04x 10 Yes |
30.64x 17.74x 40.40x 10 Yes |
30.02x 17.51x 39.59x 10 Yes |
31.14x 18.16x 41.08x 10 Yes |
While the GH22LP20 was a little slower when extracting audio from CD-R media, this didn't keep it from reaching amaximum DAE speed of 41x. So how did it do in CD Speed's advanced DAE tests? Take a look below.

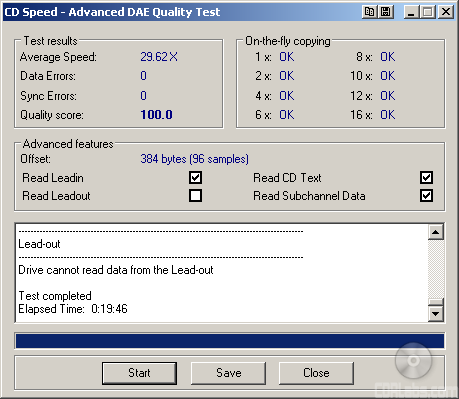

LG's new DVD writer completed CD Speed's advanced DAE tests with an average score of 29.62x. The drive had no problems passing all of the on-the-fly tests and did not create any errors. If you look at the advanced features, you can see that the GH22LP20 was able to read the CD-Text, subchannel data and lead in but failed to read the lead out section of the CD.
To see how well the GH22LP20 can read scratched and dirty discs, I used CD Speed's ScanDisc utility to see how many sectors were damaged or unreadable. This is a very rough, but good way to test the drive's error correcting abilities.

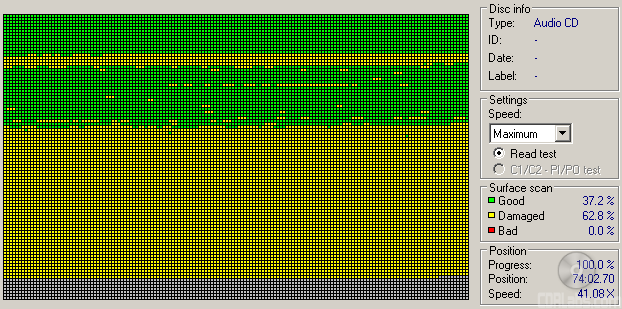

CD Speed - ScanDisc
LG's new drive handled scratched discs relatively well. By looking at the screenshot, you can see that the GH22LP20 considered only 62.8% of the CD to be "damaged". More importantly, none of the sectors on the disc were unreadable.
You can also get an idea of how well the drive can read scratched and dirty discs by using CD DAE. The application extracts the audio tracks twice and then compares them. From this information we can see what the drive's average speed was and how many errors it generated.
CD DAE | Avg. Speed | Errors | % of Disc |
LG GH22LP20 |
28.2x | 613565 | 1.71% |
Samsung SH-S203N |
29.0x | 2365653 | 0.30% |
Lite-On DH-20A3H |
2.2x | 2543386 | 0.33% |
LG GSA-H55L |
10.6x | 2136523 | 0.27% |
Here too, the GH22LP20 did pretty well. The scratches on the disc had little effect on the drive's speed and the number of errors remained relatively low.
CD Write and ReWrite Tests - Nero Burning Rom 7.11.10.0 andDLA 5.20:
For this test I randomly generated 700MB of files and directories to test the time it takes the drive to write and close a CD. All of the files are between 1MB and 25MB in size and no more than 10 directories deep. All of the times below include not only the actual writing time, but the lead in and out times too. This gives a more realistic idea of how long it takes to write a CD.
The GH22LP20 has a maximum CD writing speed of 48x. To reach this speed, it uses CAV, or Constant Angular Velocity. With Taiyo Yuden's 52x media, the drive started writing at about 21.41x and reached a maximum speed of 48.23x at the end of the session. This gave LG's new DVD±RW an average writing speed of about 36.55x.
To test the drive's writing times, I wrote our test data to some Taiyo Yudenmedia rated at 52x. The results are below.
Size in MB | Size in Time | LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
701MB | 79:44:21 | 2:41 | 2:55 | 2:46 | 2:44 |
LG's new drive did fairly well in our CD writing tests. Thanks to its 48x CD writing speed, the GH22LP20 was able to write an entire 701MB CD in 2:41.

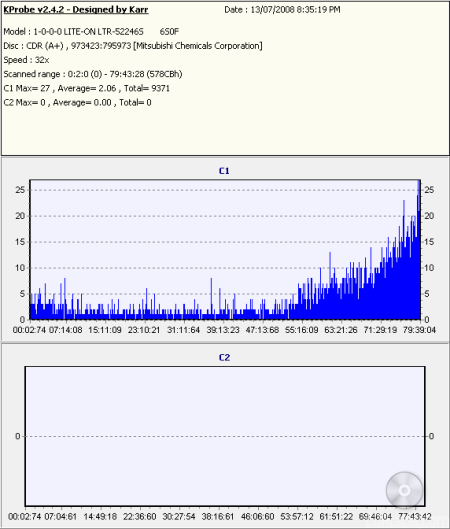

To test the drive's writing quality I used Lite-On IT's KProbe2. Written by Karr Wang, this utility can be used to test the number of C1 and C2 errors on a disc. For these tests I used a Lite-On LTR-52246S (firmware 6S0F) and read the discs at 32x.
The GH22LP20's writing quality was very good. By looking at the KProbe screenshots, you can see that the discs burned by the drive had a low number of C1 errors and there were no C2 errors at all.
For the rewriting tests I created 400MB of files on the hard drive and wrote them in DAO mode using Nero. To test the packet writing speeds I copied and pasted the same files off the hard drive onto a CD-RW disc using DLA from Sonic. Verbatim's 32x Ultra Speed CD-RW media was used for these tests.
While the GH22LP20 uses CAV when writing to CD-R discs, it uses Z-CLV, or Zone CLV, when rewriting at 32x. By looking at the screenshot above, you can see that it uses a total of three "zones" to reach its maximum speed. The drive starts writing at 16x and jumps to 24x at about the 15 minute mark.The GH22LP20 writes at this speed until about the 40 minute mark. When it reaches this point, its writing speed increases to 32x and stays there until the end of the session.
Software | LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
Nero | 2:42 | 2:22 | 2:57 | 2:40 |
DLA Write | 2:34 | 3:26 | 2:50 | 2:33 |
DLA Read | 1:37 | 1:16 | 1:28 | 2:20 |
LG's new DVD writer didn't do as well as some of the other drives in our rewriting tests. Due to its Z-CLV writing method, the GH22LP20 took 2:42 to write 400MB with Nero and 2:34 to do the same with DLA.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Quick Erase | 16 seconds | 18 seconds | 22 seconds | 14 seconds |
Full Erase | 5:07 | 3:14 | 3:50 | 5:01 |
While the GH22LP20's Z-CLV writing method didn't have much of an effect on its quick erase time, it took more than 5 minutes to do a full erase.
Nero CD Speed v4.7.7.7 - DVD-ROM:
For this test I used a single layer, single sided data DVD-ROM disc that is 4.37GB in size.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.00x 6.57x 16.05x |
12.14x 6.70x 16.20x |
12.12x 6.73x 16.20x |
12.00x 6.54x 16.05x |
Seek Times Random: 1/3: Full: |
115ms 135ms 199ms |
97ms 113ms 184ms |
103ms 119ms 173ms |
119ms 148ms 215ms |
CPU Usage 1x: 2x: 4x: 8x: |
4% 8% 15% 26% |
9% 6% 10% 19% |
12% 9% 15% 98% |
5% 9% 18% 34% |
The GH22LP20 was fairly quick when reading single layer DVD-ROM's. In our tests it started reading at 6.57x and reached a maximum transfer speed of 16.05x.Unfortunately, its seek times were not as low as some of the other drives.
Nero CD Speed v4.7.7.7 - DVD-R, DVD-RW and DVD-RAM:
First, we'll look at the drive's DVD-R and DVD-RW reading performance. For this I made copies of our DVD-ROM test disc using some general use 4x DVD-R and 2x DVD-RW media from Verbatim and then ran our usual DVD read tests with CD Speed. For the DVD-RAM tests, media from Maxell was used. The results are below.
Verbatim DVD-R
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.04x 6.59x 16.09x |
12.15x 6.71x 16.25x |
12.15x 6.70x 16.25x |
12.03x 6.59x 16.08x |
Seek Times Random: 1/3: Full: |
123ms 154ms 242ms |
114ms 127ms 203ms |
134ms 146ms 222ms |
127ms 164ms 234ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 16% 28% |
11% 6% 11% 23% |
27% 9% 18% n/a |
6% 10% 19% 36% |
Verbatim DVD-RW
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.12x 5.02x 12.19x |
9.03x 4.97x 12.08x |
9.03x 4.98x 12.08x |
9.13x 5.01x 12.20x |
Seek Times Random: 1/3: Full: |
128ms 166ms 258ms |
122ms 130ms 209ms |
148ms 159ms 256ms |
133ms 182ms 265ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 17% 32% |
9% 6% 11% 19% |
20% 10% 18% 98% |
6% 10% 19% 37% |
Verbatim DVD-R DL
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.19x 5.09x 12.25x |
9.23x 5.12x 12.30x |
9.02x 5.02x 12.02x |
9.08x 5.04x 12.11x |
Seek Times Random: 1/3: Full: |
138ms 163ms 243ms |
125ms 140ms 213ms |
154ms 127ms 259ms |
154ms 193ms 266ms |
CPU Usage 1x: 2x: 4x: |
5% 10% 16% |
12% 8% 15% |
24% 12% 97% |
6% 10% 19% |

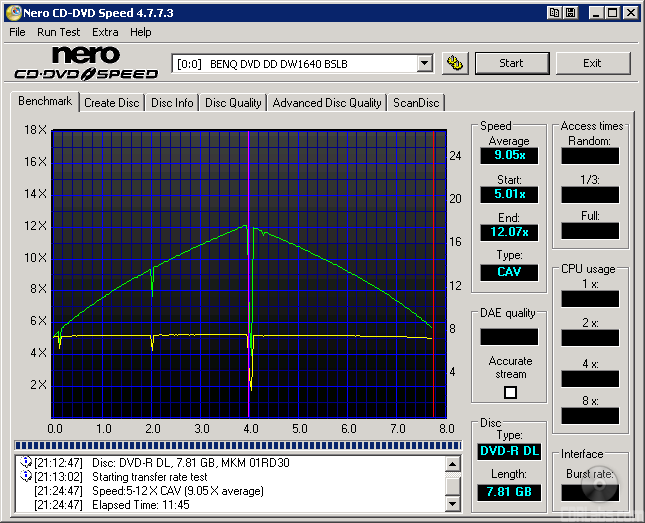

The GH22LP20 had no problems reading DVD-R, DVD-RW and DVD-R DL media. In our tests, the drive read DVD-R discs at 16x, and both DVD-RW and DVD-R DL media at a respectable 12x.
Maxell 12x DVD-RAM
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
10.27x 5.92x 12.02x |
10.19x 5.93x 12.02x |
10.21x 5.94x 12.02x |
10.24x 5.93x 12.03x |
Seek Times Random: 1/3: Full: |
180ms 169ms 243ms |
147ms 152ms 245ms |
122ms 135ms 240ms |
175ms 204ms 274ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 17% 35% |
9% 10% 12% 20% |
12% 9% 20% 34% |
5% 10% 18% 36% |
LG's new drive has a maximum transfer speed of 12x when reading DVD-RAM discs. By looking at the screenshot you can see that it starts reading at 5.92x and accelerates, reaching 12x at the 2.7GB mark.
Nero CD Speed v4.7.7.7 - DVD+R and DVD+RW:
Next we'll look at the drive's DVD+R and DVD+RW reading performance. For this I made a copy of our DVD-ROM test disc using some 4x DVD+R and 2.4x DVD+RW media from Verbatim. I then ran our usual DVD read tests with CD Speed. The results are below.
Verbatim DVD+R
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.03x 6.57x 16.08x |
12.14x 6.71x 16.23x |
12.14x 6.74x 16.23x |
12.04x 6.58x 16.11x |
Seek Times Random: 1/3: Full: |
126ms 157ms 263ms |
125ms 129ms 211ms |
128ms 143ms 209ms |
127ms 162ms 244ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 15% 27% |
13% 11% 20% 34% |
28% 9% 17% n/a |
6% 10% 19% 37% |
Verbatim DVD+RW
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.13x 5.04x 12.20x |
9.03x 4.98x 12.07x |
9.03x 5.01x 12.07x |
9.13x 5.04x 12.20x |
Seek Times Random: 1/3: Full: |
121ms 153ms 244ms |
124ms 134ms 202ms |
136ms 148ms 221ms |
138ms 184ms 268ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 16% 31% |
9% 6% 11% 19% |
19% 9% 17% 96% |
6% 10% 19% 36% |
Verbatim DVD+R DL
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.20x 5.09x 12.26x |
9.22x 5.12x 12.30x |
9.02x 5.01x 12.02x |
9.09x 5.02x 12.11x |
Seek Times Random: 1/3: Full: |
135ms 172ms 246ms |
131ms 146ms 213ms |
136ms 146ms 206ms |
153ms 186ms 273ms |
CPU Usage 1x: 2x: 4x: |
4% 9% 16% |
12% 8% 15% |
23% 12% 98% |
5% 10% 18% |

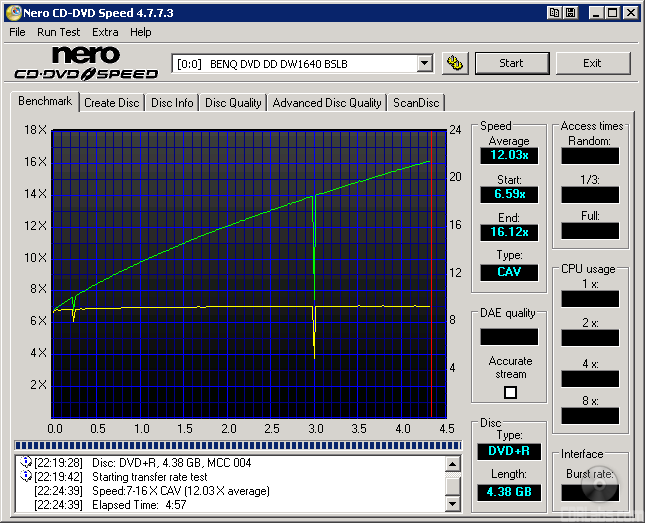

The GH22LP20's performance was very similar to what we saw with DVD-R, DVD-RW and DVD-R DL media.The drive read DVD+R discs at 16x and both DVD+RW and DVD+R DL media at 12x.
Nero CD Speed v4.7.7.7 - DVD-Video:
For these tests I am using the US version of Transformers: The Movie on DVD. The disc is over 4GB and single sided.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
4.50x 2.48x 6.01x |
12.00x 6.63x 16.04x |
12.00x 6.67x 16.04x |
6.03x 3.33x 8.07x |
Seek Times Random: 1/3: Full: |
138ms 160ms 222ms |
95ms 112ms 183ms |
104ms 122ms 174ms |
126ms 153ms 217ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 9% 16% n/a |
9% 6% 10% 21% |
13% 9% 15% n/a |
5% 9% 18% 38% |
The GH22LP20 didn't do as well as the other drives when reading DVD videos. In our tests, it reached a maximum speed of only 6x when reading both single and dual layer discs.
To see how well the GH22LP20 worked as a DVD player, I watched a few scenes from Transformers: The Movie and Star Wars: The Phantom Menace using Nero Showtime. The drive had no problems playing back these movies with either program and was fairly quiet.
DVD Write and ReWrite Tests - Nero Burning Rom 7.11.10.0 andDLA 5.20:
To test the DVD writing performance of Lite-On's new drive I used Verbatim 16x DVD+R, 16x DVD-R, 8x DVD+RW and 6x DVD-RW media. To get the writing times, a 4.38GB image was burned to our test discs using Nero.
When writing to DVD+R and DVD-R media at 20x, the GH22LP20 uses CAV. By looking at the screenshots above, you can see that LG's new drive starts writing at about 9.2x and accelerates, reaching its maximum speed at the end of the disc.
The GH22LP20 also features 8x DVD+RW and 6x DVD-RW writing speeds. While the drive uses CLV when writing to DVD-RW media, it uses Z-CLV to reach its maximum DVD+RW writing speed.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
DVD+R | 4:30 | 4:53 | 5:11 | 5:16 |
DVD-R | 4:22 | 4:42 | 5:07 | 4:47 |
DVD+RW | 7:30 | 7:29 | 7:47 | 7:40 |
DVD-RW | 10:22 | 10:01 | 10:03 | 10:20 |
LG's new "Super-Multi" drive performed very well in our DVD writing tests. While not as fast as some of the other drives when writing to DVD-RW discs, the GH22LP20 turned in some very impressive times with DVD+R, DVD-R and DVD+RW media.
To check the media compatibility of the GH22LP20, I ran a few tests using some of the media available in my area. The media types, along with the average time it took the drive to write our 4.38GB image, are listed below.
Manufacturer ID | Max Write Speed |
Average Write Time |
|
Memorex 16x DVD+R | RICOHJPN R03 | 16x | 5:47 |
Sony 16x DVD+R | SONYD21 | 20x | 4:53 |
Taiyo Yuden 16x DVD+R | YUDEN000T03 | 22x | 4:33 |
Verbatim 16x DVD+R | MCC-004 | 22x | 4:30 |
RiDATA 16x DVD-R | RITEKF1 | 16x | 5:33 |
Sony 16x DVD-R | SONY16D1 | 20x | 4:42 |
Taiyo Yuden 16x DVD-R | TYG03 | 22x | 4:24 |
Verbatim 16x DVD-R | MCC 03RG20 | 22x | 4:22 |

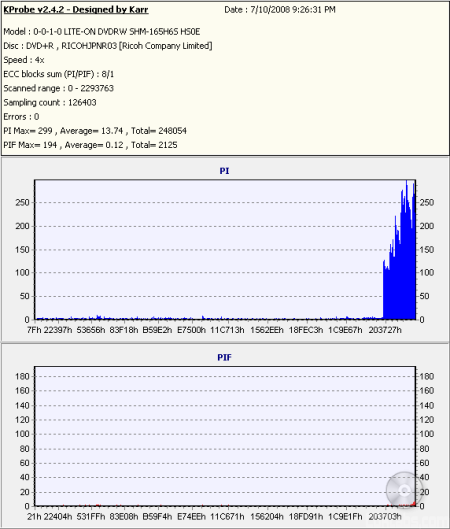

So what about writing quality? Thanks to KProbe, we can test a disc's PI (Parity Inner) and PIF (Parity Inner Fail) rates.For these tests I used a Lite-On SHM-165H6S (firmware HS0E) and read the discs at 4x with the PI and PIF ECC sums set to 8 and 1 respectively. For comparison, I also tested the discs on a BenQ DW1640. When combined with Nero CD Speed, the DW1640 is able to report PI Errors, PI Failures, Parity Outer Failures and even jitter levels. For this test, the discs are read at 8x with both the PI and PIF ECC sums set to 8.
So what are "good" results supposed to look like? With KProbe, the PI errors should not exceed 280 and the number of PIF errors should stay below 4. When testing with CD Speed, the number of PI errors should stay below 280 as well. However, because it scans with an ECC sum of 8, a higher number of PIF errors is acceptable, as long as they do not exceed 32. Since POF errors are uncorrectable, we really don't want to see any of them at all.
I also put these discs through a "stress test" by reading them back at 16x with the DW1640. By reading these discs back at this speed, we can see if there are any readability issues caused by the number of errors or high levels of jitter.

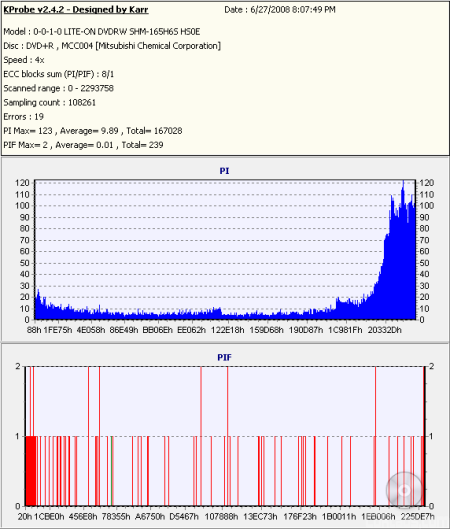

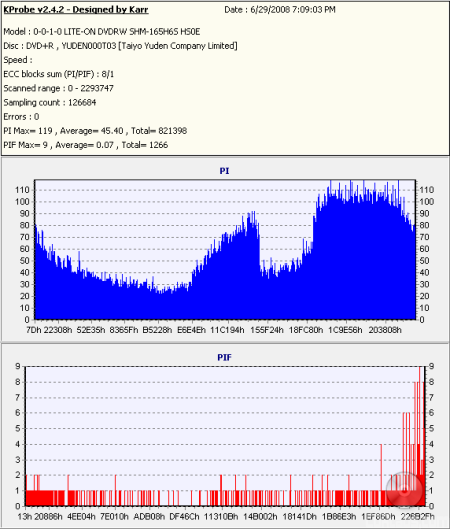

The GH22LP20's writing quality was pretty good with most of the DVD+R media we tested. Aside from a few isolated spikes, the PI/PIF rates stayed within acceptable limits. The only real exception was Memorex's 16x DVD+R media. While written at only 16x, the error rates were very high near the end of the disc.

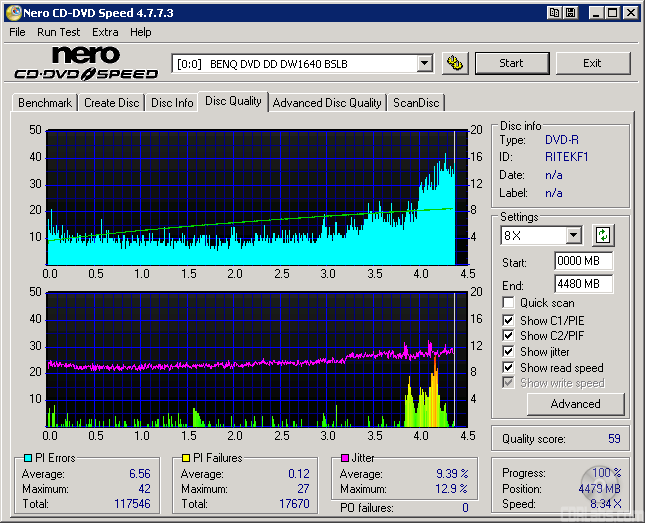

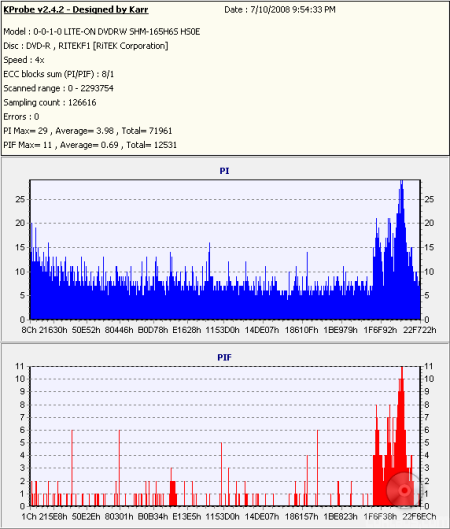

Lastly, here are some results from our DVD-R test media. Looking at the graphs above, you can see that the discs from Sony and Taiyo Yuden yielded some fairly good results. Unfortunately, the error rates were considerably higher with the media from RiDATA and Verbatim.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
DVD+RW Quick | 5 seconds | 3 seconds | 4 seconds | 5 seconds |
DVD+RW Full | 7:29 | 7:28 | 7:46 | 7:31 |
DVD-RW Quick | 29 seconds | 28 seconds | 21 seconds | 27 seconds |
DVD-RW Full | 10:28 | 9:56 | 9:46 | 10:26 |
To test the GH22LP20's packet writing performance I used DLA 5.20. Verbatim 8x DVD+RW, Verbatim 6x DVD-RW and Maxell 12x DVD-RAM media were used once again.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
DVD+RW Write | 6:56 | 6:42 | 7:01 | 7:02 |
DVD+RW Read | 7:15 | 6:11 | 6:19 | 6:38 |
DVD-RW Write | 8:25 | 8:26 | 8:25 | 8:24 |
DVD-RW Read | 6:19 | 6:13 | 6:23 | 6:31 |
DVD-RAM Write | 13:22 | 12:53 | 11:19 | 13:12 |
DVD-RAM Read | 5:39 | 6:25 | 5:31 | 5:32 |
The GH22LP20 performed pretty well in our packet writing tests. While not the fastest drive we've tested, it turned in some respectable times when reading and writing to DVD+RW, DVD-RW and DVD-RAM media.
Double Layer DVD Write Tests - Nero Burning Rom 7.11.10.0:
To test the double layer DVD writing performance of the GH22LP20, I used DVD+R DL and DVD-R DL media from Memorex, Traxdata and Verbatim. I created about 8GB of random files and directories on my hard drive and then burned them to our test discs with Nero.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
DVD+R DL Write | 10:56 | 13:08 | 16:46 | 14:12 |
The GH22LP20 had no problems taking the top spot in this test. Thanks to its 16x DVD+R DL writing speed, the drive took less than 11 minutes to write 8001MB of data. So what about writing quality? Take a look below.

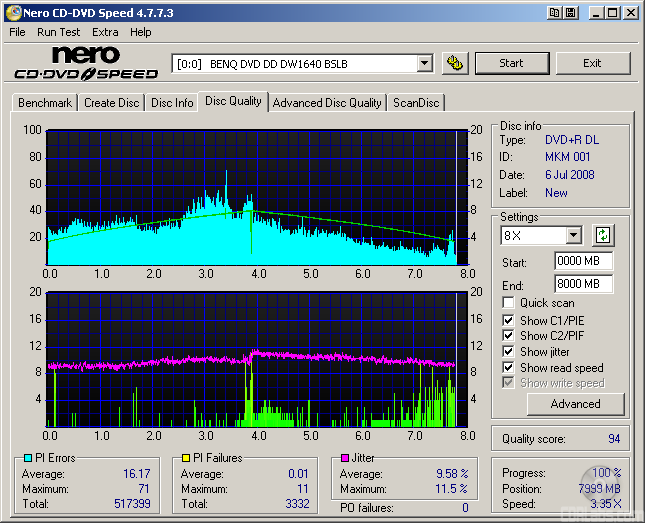

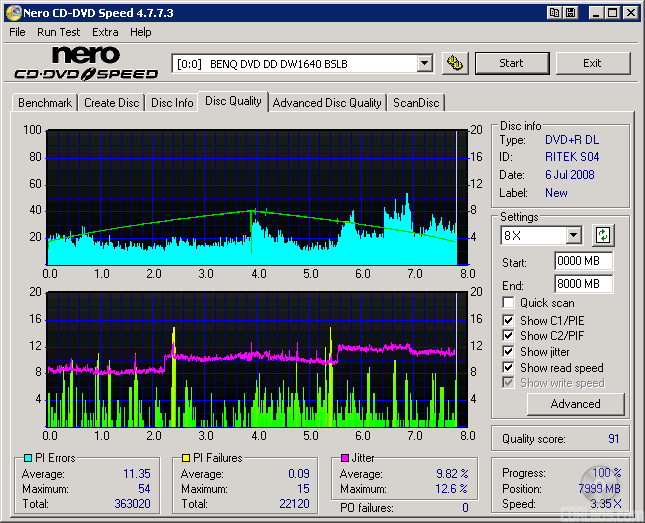

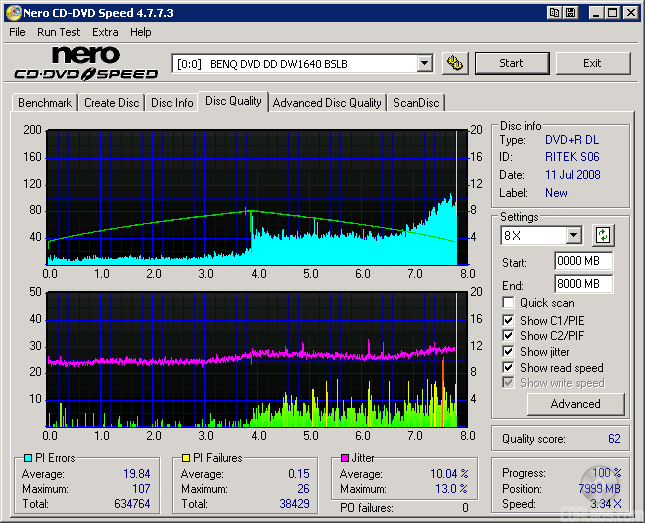

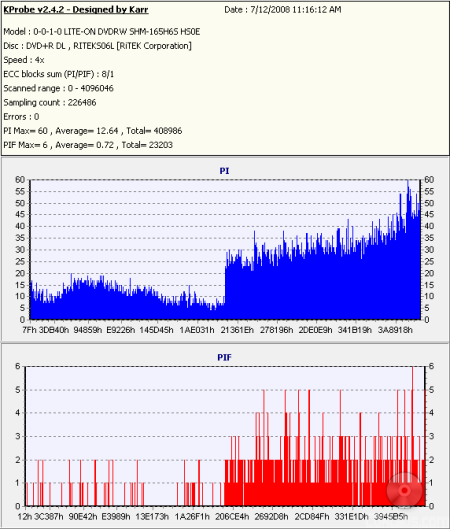

While the quality was pretty good with the DVD+R DL media from Verbatim and Memorex, Traxdata's new 16x rated discs yielded some mixed results. The error rates stayed within acceptable limits when tested with KProbe. However, when scanned by the DW1640, the PIF rate was a bit high throughout the second half of the disc.
The GH22LP20 also features 16x DVD-R DL writing speeds. Unfortunately, media capable of these speeds isn't available yet. Once discs rated at this speed start to ship, I'll go back and rerun these tests. Until then, here are some results with media that is currently available.
LG GH22LP20 |
Samsung SH-S203N |
Lite-On DH-20A3H |
LG GSA-H55L |
|
DVD-R DL Write | 13:30 | 13:33 | 17:02 | 13:26 |
The GH22LP20 performed very well when writing to DVD-R DL media. While not as fast as the GSA-H55L, the drive took only 13:30 to write 8001MB of data. So what about writing quality? Take a look below.

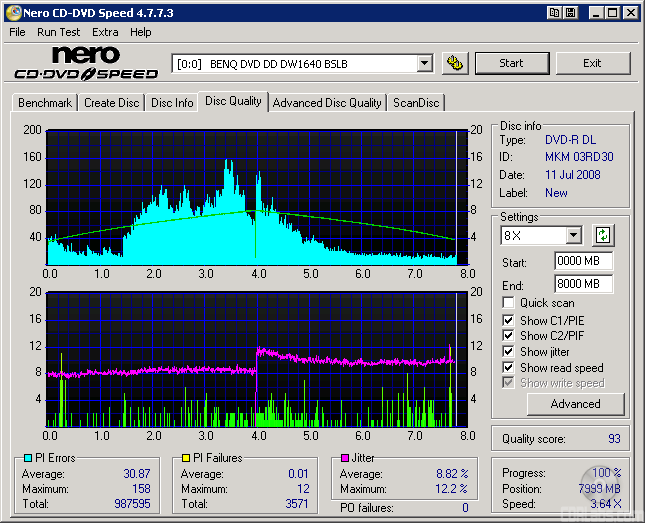

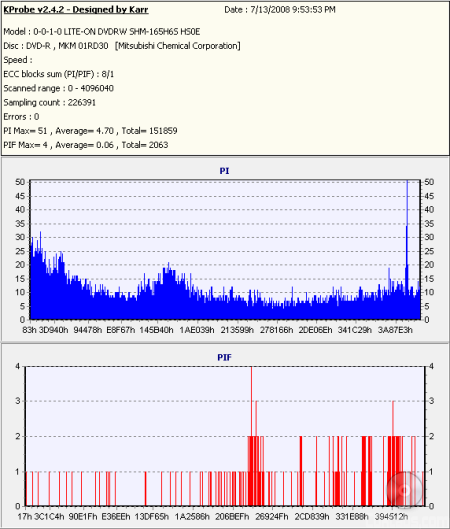

The GH22LP20's writing quality was pretty good with Verbatim's 4x and 8x DVD-R DL media. The error rates stayed within acceptable limits and, aside from a dip at the layer change, there weren't any readability problems.
Performance Revisited:
While LG's new "Super-Multi" drive has a few rough spots, it performed as expected throughout most of our tests. The GH22LP20 flew through our DVD writing tests, turning in some very impressive times with DVD±R and DVD±R DL media. Unfortunately, there were a few cases where the writing quality could have been better. Reading DVD's wasn't a problem for the GH22LP20 either. The drive was able to read single layer data DVD's and DVD±R media at 16x, but slowed to only 6x when reading DVD videos.
The GH22LP20 also did relatively well in our CD read tests. The drive read pressed and CD-R discs at speeds as high as 48x and had some fairly good seek times. When it came to writing CD's, the GH22LP20 gave us some mixed results. While the drive turned in some impressive times when writing to CD-R media, its Z-CLV writing method put it at a slight disadvantage in our rewriting tests. With all things considered, the LG GH22LP20 gets a solid 7 out of 10 for the performance section of this review.
Like many people, I never expected DVD writing speeds to reach 20x, let alone 22x. Nevertheless, LG has pulled off this impressive feat with the GH22LP20. Aimed squarely at enthusiasts, this new "Super-Multi" drive offers features like SecurDisc and LightScribe as well as some of the fastest DVD writing speeds available.
The GH22LP20 is the first drive from LG with the ability to write to both DVD-R and DVD+R media at 22x. At this speed, it took the drive about 4 and a half minutes to burn an entire 4.7GB DVD. This level of performance carried over to our rewriting tests where the GH22LP20 turned in some respectabletimes with DVD-RW, DVD+RW and DVD-RAM media. Writing to DVD±R DL media wasn't a problem for LG's new drive either. Thanks to its 16x writing speed, the GH22LP20took less than 11 minutes to burn 8GB of data.
When it came to media compatibility, the GH22LP20 gave us some mixed results. While the drive wrote tomost of our test media at its rated speed or better, only four types worked at 20x. On the other hand, the GH22LP20's writing quality was fairly good for the most part. However, there is still room for improvement, especially with Verbatim's 16x DVD-R and Traxdata's new 16x DVD+R DL media. Hopefully, LG can address this in a future firmware update.
LG's new "Super-Multi" drive also performed relatively well in our DVD read tests. While the GH22LP20's seek times were a little higher than I would have liked, it was able to read single layer DVD-ROM's and DVD±R media at 16x. The drive also read DVD±RW, DVD±R DL and DVD-RAM media at an impressive 12x, but slowed to only 6x when reading DVD-Videos.
Reading CD's wasn't a problem for the GH22LP20 either. In our tests, the drive read pressed and CD-R media at speeds as high as 48x and CD-RW discs at 40x. LG's new drive wasn't as fast in our DAE tests. However, it still ripped audio CD's at a respectable 40x. When it came to writing CD's, the GH22LP20 performed as expected. The drive had no problems holding its own when writing to CD-R media. However, itsZ-CLV writing method put it at a slight disadvantage in our rewriting tests.
When it comes to features, LG's new drive definitely delivers. To prevent buffer underruns, the GH22LP20 has a 2MB buffer that is backed up by Super Link buffer underrun protection. The drive also supports HP's LightScribe Direct Disc Labeling system and has the ability to set the book type of DVD+R and DVD+R DL media. Most notable though, is the GH22LP20's SecurDisc technology. This hardware and software-based solution not only protects your data against unauthorized access and copying, it ensures maximum reliability through a redundancy-based defect management system.
In the end, it usually comes down to price. For what it offers, LG's new "Super-Multi" drive is surprisingly affordable. Current prices vary depending on the seller, but the OEM, or bulk, version of the GH22LP20 can be picked up for less than $30 on Pricegrabber.
LG GH22LP20 22x DVD±RW/RAM |
|
Features: Installation: Performance: |
10 8 7 |
Overall: | 8 |
Highs:
- Writes to DVD-R and DVD+R media at 22x
- Writes to DVD+RW media at 8x
- Writes to DVD-RW media at 6x
- Writes to DVD+R DL and DVD-R DL media at 16x
- Reads single layer DVD-ROM's at 16x
- Reads DVD±R media at 16x
- Reads DVD±RW and DVD±R DL media at 12x
- Reads and writes DVD-RAM media at 12x
- Features 48x CD-R and 32x CD-RW writing speeds
- Features Super Link buffer underrun protection
- Supports LightScribe and SecurDisc technologies
- Good CD writing quality
- Includes software from Nero and CyberLink
- Supports bitsetting for DVD+R and DVD+R DL media
- Affordably priced
Lows:
- Questionable writing quality with some DVD±R and DVD+R DL media
- Had a hard time reaching its rated speeds when reading pressed discs
- Reads DVD-Videos at only 6x
- Cannot set the book type of DVD+RW media
- Cannot do write quality testing
- Overburns to only 93:54
