Model: Lite-On DH-4B1S 4x Blu-ray Disc Triple Writer
Manufacturer: Lite-On IT
Provided By: Lite-On IT America

Lite-On IT got its start in 1995 when its parent company, Lite-On Technology, gathered a group of scientists and engineers to start an optical storage research and manufacturing business. Lite-On Technology quickly established itself as Taiwan’s largest CD-ROM drive manufacturer and by 1999 the business had spun off into a separate company, Lite-On IT. Since then, Lite-On IT has continued to grow. By working closely with companies like BenQ and Philips, they've expanded into the consumer and automotive electronics markets, becoming the world's second largest ODD manufacturer.

With the format war coming to an end, Lite-On has set its sights on the emerging Blu-ray Disc market. Through their partnership with Philips, the company has been given access to numerous patents, allowing them to produce their own line of Blu-ray drives. This summer, the company introduced its second-generation Blu-ray Disc writer, the DH-4B1S. This Serial ATA equipped drive is capable of 4x BD-R, 2x BD-RE and 2x BD-R DL writing speeds as well as a maximum BD-ROM read speed of 4x. The DH-4B1S also sports an 8MB buffer and is backwards compatible with most major CD and DVD formats. To top it all off, Lite-On has included a full featured software bundle from CyberLink.

This is just a sample of what Lite-On's 4x Blu-ray Disc writer has to offer. Over the next few pages we'll take a look at the DH-4B1S's features and then see how it compares to some of the the Blu-ray Disc writers from LG and Sony. Does the DH-4B1S have what it takes? More importantly, is it the best bang for your buck? Keep reading to find out.





What's in the box?:

  • Lite-On DH-4B1S 4x Blu-ray Disc Triple Writer
  • CyberLink Software CD
  • User's Manual
  • Quick Installation Guide
  • TDK 25GB BD-RE Disc
  • SATA Cable
  • Mounting Screws
  • Warranty Information

Physical Features:

The drive Lite-On sent us for this review was manufactured in December of 2007 and had firmware version 7P5A. This is the newest firmware currently available for the DH-4B1S.

From the front, the DH-4B1S looks identical to Lite-On's 2x Blu-ray Disc writer, the LH-2B1S. The two drives not only share the same bezel design, but have many of the same logos. Along with the large "Blu-ray Disc" logo, you can see a few showing support for Ultra Speed CD-RW media as well as the DVD+ReWritable and DVD-R/RW formats.

Below the tray you can see a strip of clear plastic containing three LED's. Off by default, these LED's will light up blue (BD), red (DVD) or green (CD) to show what type of disc is inserted in the drive.

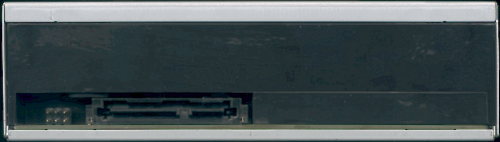

The rear of the DH-4B1S is pretty straightforward. By looking at the picture above you can see the drive's SATA interface and power connector.

Technical Specs:

The specs below have been taken from Lite-On's website and the manual that came with the drive.

   Lite-On DH-4B1S
4x Blu-ray Disc Triple Writer
BD-R Write Speeds 4x (Z-CLV)
2x (CLV)
BD-RE Write Speeds 2x (CLV)
BD-R DL Write Speeds 2x (CLV)
DVD+R Write Speeds 12x, 8x (P-CAV)
4x, 2.4x (CLV)
DVD+RW Write Speeds 8x (Z-CLV)
6x, 4x, 2.4x (CLV)
DVD-R Write Speeds 12x, 8x (P-CAV)
4x, 2.4x (CLV)
DVD-RW Write Speeds 6x, 4x, 2.4x, 1x (CLV)
DVD+R DL Write Speeds 8x (Z-CLV)
4x, 2.4x (CLV)
DVD-R DL Write Speeds 8x (Z-CLV)
4x, 2x (CLV)
CD Write Speeds 40x (CAV)
32x, 24x (P-CAV)
16x (CLV)
CD Rewrite Speeds 24x, 16x (Z-CLV)
10x, 4x (CLV)
BD Read Speeds 4x Max (BD-ROM)
4x Max (BD-R)
2x Max (BD-RE)
2x Max (BD-R/RE DL)
DVD Read Speeds 12x Max (DVD-ROM Single Layer)
8x Max (DVD-ROM Dual Layer)
12x Max (DVD±R)
12x Max (DVD±RW)
8x Max (DVD±R DL)
12x Max (DVD-Video)
CD Read Speeds 40x Max
DAE Speeds 40x Max
Buffer Size 8 MB
Access Times
350 ms (BD-ROM)
160 ms (DVD-ROM)
160 ms (CD)
CD Formats CD-DA
CD-ROM
CD-ROM/XA
CD-Extra
Video CD
Photo CD
Multi-Session
CD-Text
CD-I
CD-R
CD-RW
DVD Formats DVD-ROM
DVD-Video
DVD+R/RW
DVD-R/RW
DVD+R DL
DVD-R DL
BD Formats BD-ROM
BD-R/RE
BD-R/REDL
CD Recording Modes Disc At Once
Session At Once
Track At Once
Fixed And Variable Packet Writing
Multi-Session

More Features:

By looking at the picture below, you can see that Lite-On's new Blu-ray Disc writer is identified as an "ATAPI BD B DH4B1S."

The Nero screenshot also shows that the DH-4B1S has a maximum CD writing speed of 40x and a 2048KB buffer. This buffer is backed up by Seamless Link buffer underrun protection. According to Nero, the DH-4B1S can also write CD-Text and overburn. When testing the drive's capacity, it had no problems overburning up to 99 minutes with our CompUSA media.

Using Alex Noe's Weak Sector Utility we were able to determine that the DH-4B1S is a "two sheep" burner. This means that Lite-On's new drive is capable of backing up titles protected by SafeDisc 2, including version 2.51.

Here is a screen shot from Nero's InfoTool. This program queries the drive to see what its reading and writing capabilities are. InfoTool had no problems detecting the DH-4B1S's maximum reading and writing speeds, recording modes, buffer underrun protection and 2MB buffer.

InfoTool also shows that the DH-4B1S is an RPC-2 DVD drive. This means that the drive's region is stored in the firmware. The drive's region can be changed five times and after that it cannot be changed anymore. Unfortunately, a patched RPC-1 firmware is not yet available and utilities like LtnRPC do not work with the drive.

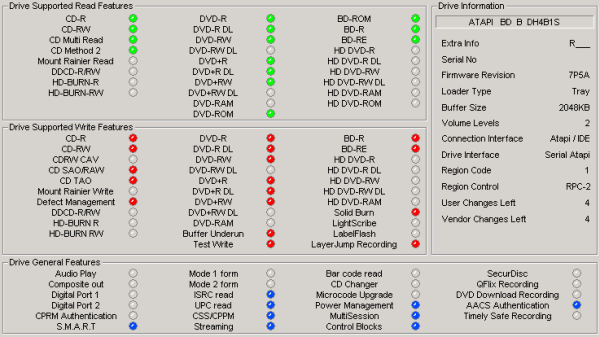

While InfoTool gives us a quick glance at the DH-4B1S's features, DVDINFOpro provides a little more information on some of the drive's reading and writing capabilities. By looking at the screenshot above you can see that Lite-On's new drive can read and write to most BD and DVD formats.

Lite-On's new drive also supports a feature called "bitsetting".The DH-41BS automatically sets the book type of DVD+R and DVD+R DL media to "DVD-ROM" without any input from the user. This feature comes in handy if you have an older DVD player that has problems playing recordable media.




For the DH-4B1S's software bundle, Lite-On has turned to CyberLink. The CD that comes with the drive contains the CyberLink BD Solution suite which includes PowerProducer, PowerDirector Express, Power2Go, PowerBackup, InstantBurn and PowerDVD.

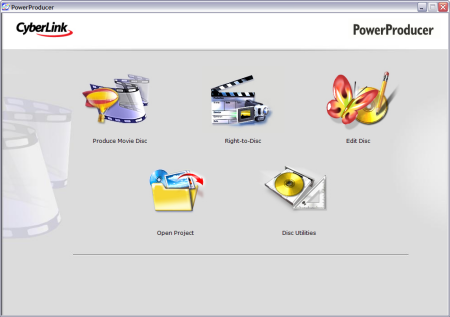

CyberLink PowerProducer 3 - With CyberLink's PowerProducer you can create your own movie discs quickly and easily. Right from the start, this wizard based software gives you a number of options to select from. From here you can choose to produce a new movie disc, edit an existing one or record video directly to DVD or BD.

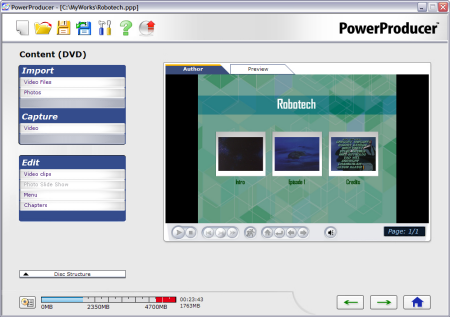

PowerProducer lets you create a number of different movie discs. Looking at the menu below, you can choose to create a CD, DVD, or Blu-ray Disc. The software also supports various disc capacities and formats including DVD-VR, DVD+VR and BDAV.

While you can capture your own video, PowerProducer gives you the ability to import video files in a number of different formats. Once added to your production, you can use the built-in editor to trim, merge or split your video clips. PowerProducer also allows you to set chapters within the video content and add your own custom menus, backgrounds, fonts and titles.

CyberLink PowerDirector 5 Express - The DH-4B1S also comes with the CyberLink's video editing software, PowerDirector. To create your own custom movies, simply drag and drop video footage onto the editing timeline and then add scene transitions, background music, or title effects.

You can also use PowerDirector's "Magic" editing tools to clean up video clips and images, condense long video segments and apply pre-designed style templates. When you're done editing your video, you have the option to save it to your hard drive, create a streaming file or write it back to DV tape.

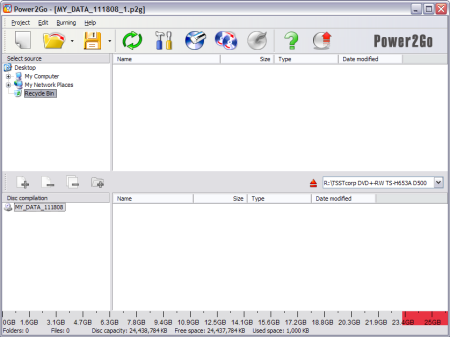

CyberLink Power2Go 5.5 - Power2Go is the main disc burning program included with the DH-4B1S. With this software, users can create various types of CD's, DVD's and BD's or make backups of existing discs. Power2Go also offers enhanced security features, allowing you to password protect and encrypt your data discs.

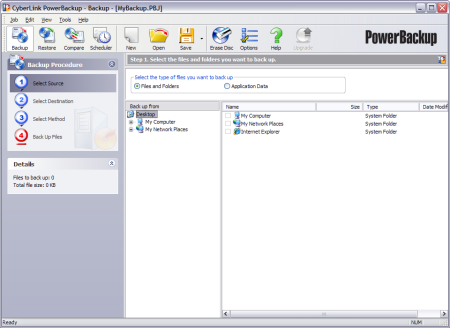

CyberLink PowerBackup 2 - If you're looking for a quick and easy way to backup your data, PowerBackup is the answer. Depending on your needs, PowerBackup can do full, differential, and incremental backups as well as fast stream-to-disc archiving.

Backup jobs can be scheduled to run at regular intervals so the data is always protected. PowerBackup also offers more advanced features like file filtering, compression and password protection.

CyberLink InstantBurn 5 - InstantBurn is CyberLink's packet writing software. Like Roxio's Drag-to-Disc or Nero's InCD, it allows you to use your CD, DVD or BD writer as if it was another hard drive or a huge floppy disk. Once formatted, you can cut, copy, and paste or rename files and folders on a CD-RW, DVD±RW or BD-RE disc.

CyberLink PowerDVD 7 - CyberLink's PowerDVD is one of the more popular software DVD players on the market right now. Along with support for DVD's, it can be used to play back Blu-ray Discs, HD DVD's and other high-def formats including H.264, HD MPEG-2, and WMV-HD. With its support for BD-J and iHD, PowerDVD also gives you the ability to access interactive movie content.

Unfortunately, the version of PowerDVD bundled with the DH-4B1S only supports 2 speaker output. If you want to take advantage of movies encoded with Dolby Digital or DTS, you'll need to buy the retail version of PowerDVD Ultra.

While affordably priced, the Lite-On's new Blu-ray Disc writer delivers a good number of features. The DH-4B1S is capable of 4x BD-R, 2x BD-R DL and 2x BD-RE writing speeds and a maximum DVD read speed of 4x. The drive is also backwards compatible with most CD and DVD formats and includes features like an 8MB buffer, Seamless Link buffer underrun protection and a great software bundle from CyberLink. With all this, it's easy to see why the Lite-On DH-4B1S gets a solid 8 out of 10 for its features.


Along with smaller cable size, one of the biggest benefits of Serial ATA is its ease of installation. Because it uses a point to point connection, setting jumpers has become a thing of the past. In most cases, installation is as simple as plugging in the SATA and power cables and turning the computer on. Needless to say, it took only a couple of minutes to install Lite-On's Blu-ray Disc writer in our test computer. After making sure that the DH-4B1S was recognized by Windows, I was ready to start installing the software.

Software Installation:

As I mentioned earlier, the DH-4B1S comes with a CD full of software from CyberLink. If you have autorun enabled, the menu pictured below will automatically come up when you insert the disc.

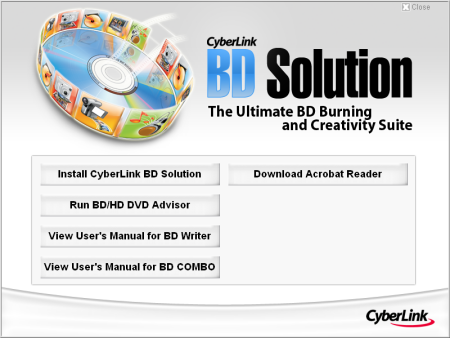

Clicking the "Install CyberLink BD Solution" button will bring up another menu where you can read about the various applications included in the suite. Otherwise, you can start the setup process by clicking the "Install Now" button.

After picking your language of choice, you'll be presented with a number of installation options. From here, you can choose to install PowerDVD, Power2Go, PowerProducer, PowerBackup or InstantBurn. Simply select the components you want and click next a few times. Once the files are copied over, you can start burning your own discs.

The Documentation:

Most of the DH-4B1S's documentation is located in the "User's Manual." Similar to the ones included with Lite-On's other drives, this manual covers a number of topics. It starts out by getting the user familiarized with their new Blu-ray Disc writer. The first section goes over the DH-4B1S'ssupported formats, recording modes and system requirements. The manual also spends a few pages going over the locations and the functions of the buttons and connectors located on the front and back of the drive.

From here, the manual goes right into the physical installation of the DH-4B1S. With no jumpers to configure, this section is relatively brief. Nevertheless, it covers all of the basics including how to install it into an empty drive bay and hook up the cables. The manual finishes up with a few short sections on how to use and maintain the DH-4B1S and troubleshoot any problems that might come up.

Lite-On's Blu-ray Disc writer also comes with a "Quick Installation Guide." While this small, fold out guide contains a set of instructions that take the user step by step through the installation process, it does not include any pictures or diagrams. With this in mind, you're probably going to be better off with the instructions in the manual than the ones in this guide.

Like the other Lite-On drives we've reviewed, the DH-4B1S was very easy to install. Even though Blu-ray is a relatively new technology, there were no problems getting the drive or the software installed and working correctly. If you do run into trouble, the documentation Lite-On has provided is more than sufficient. However, I would have liked to have seen a little more drive specific information. With this in mind, I give the installation an 8 out of a possible 10.


While CPU, memory, OS and other variables don't often make a huge difference, there are some nonetheless. We have a computer that is used only for testing hardware. We do this so all tests can be compared reliably.

Test System:

CPU: AMD Athlon 64 X2 4600+ 2.4GHz
Motherboard: ASUS M2N-SLI Deluxe with BIOS 0304
Memory: Corsair TWIN2X2048-6400
Video Card: MSI NX7900GT-T2D256E - ForceWare v93.71
Hard Drive: Seagate Barracuda 7200.10 SATA 3.0Gb/s 320GB
Operating System: Windows XP SP2 - NVIDIA nForce v9.16

For Blu-ray Disc writers, the performance tests are normally broken down into six sections: CD read, CD write, DVD read, DVD write, BD read and BD write. Each benchmark test has been run three times. The score given is an average of the three. DMA has been enabled in device manager for all IDE devices supporting it.

CD Read Tests: For the read performance section of the CD-ROM benchmarks, CD WinBench 99 v3.0 and CD Speed v4.7.7.16 are used to test read speeds, seek times and CPU usage. For DAE testing, CD Speed is used to give an overall speed rating.

CD Write Tests: To test the write speeds, Nero Burning Rom is used to write 650MB and 700MB to our test media. Times are recorded. To test rewrite scores, Nero is used again to time how long it takes to write 400MB of random files and directories. Then Sonic's DLA is used to test packet writing speeds. The same files are copied and pasted in Windows Explorer and timed.

DVD Read Tests: For the read performance section of the DVD benchmarks CD Speed v4.7.7.16 is used to test read speeds, seek times, and CPU usage.

DVD Write Tests: To test the DVD write speeds, Nero Burning Rom is used to write a 4.38GB image to our test media. Times are recorded. Then Sonic's DLA is used to test packet writing speeds. For this, 4GB of random files and directories are copied and pasted in Windows Explorer and timed.

BD Read Tests: For the read performance section of the BD benchmarks, CD Speed v4.7.7.16 is used to test read speeds, seek times, and CPU usage.

BD Write Tests: To test the BD write speeds, CD Speed's "Create Data Disc" feature is used to burn an entire BD-R/RE disc. Times are recorded.

CD Winbench 99 Scores:

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
CD Winbench 99 1310 KB/sec 1170 KB/sec 939 KB/sec 1465 KB/sec
Transfer Rate: Inside 2560 KB/sec 2900 KB/sec 2300 KB/sec 2410 KB/sec
Transfer Rate: Outside 5580 KB/sec 5900 KB/sec 4560 KB/sec 4770 KB/sec
Random Access Time 131ms 102ms 187ms 132ms
CPU Utilization 2.05% 2.40% 0% 0.41%

The CD Winbench test is as close as we can get to testing every day usage. It fires off eight different applications using scripts. This tries to mimic the activities of a person loading these programs onto their own computer.

Lite-On's new Blu-ray Disc writer performed pretty well in our CD Winbench tests. While the DH-4B1S's overall score wasn't as high as the Sony's, it had some fairly good transfer rates. It started reading at about 17.1x (2560 / 150) on the inside and reached a maximum speed of about 37.2x (5580 / 150) on the outside.

CD Speed v4.7.7.16 - Pressed CD:

For this test I used a pressed CD containing one Mode 1 data track. The disc is 74:38 in size and is full of data and directories.


   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

31.11x
17.72x
41.13x

30.94x
17.80x
40.63x

25.44x
13.94x
33.63x

24.89x
14.39x
32.83x
Seek Times
Random:
1/3:
Full:

133ms
150ms
201ms

114ms
129ms
186ms

183ms
229ms
376ms

137ms
145ms
273ms
CPU Usage
1x:
2x:
4x:
8x:

0%
1%
2%
4%

1%
1%
8%
9%

1%
1%
3%
5%

0%
1%
3%
3%

Lite-On's new drive performed a little better in our CD Speed tests. The DH-4B1S started reading at 17.72x and reached a maximum transfer speed of 41.13x. Looking at the other scores, you can see that its seek times were also pretty good.

CD Speed v4.7.7.16 - CD-R Media:

For this test I made a copy of our pressed test CD. I used 12x rated Memorex Gold 74 minute media for the tests.


   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

31.79x
17.97x
42.18x

31.08x
17.77x
40.83x

25.93x
14.04x
34.40x

25.17x
14.30x
33.29x
Seek Times
Random:
1/3:
Full:

136ms
154ms
204ms

123ms
156ms
229ms

186ms
236ms
366ms

148ms
160ms
242ms
CPU Usage
1x:
2x:
4x:
8x:

0%
1%
2%
4%

1%
1%
8%
10%

1%
1%
3%
5%

0%
2%
3%
4%

Like the other drives, the DH-4B1S was a little faster when reading CD-R media. Thanks to this speed boost, the drive was able to reach a maximum transfer speed of 42.18x.

Lite-On's new Blu-ray drive had no problems recognizing our 99 minute CompUSA media. The DH-4B1S read our test disc from start to finish, reaching a maximum transfer speed of 45.26x.

CD Speed v4.7.7.16 - CD-RW Media:

For this test I made a copy of a pressed test CD. I used some PNY 80 minute CD-RW media for the tests.


   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

31.22x
17.92x
41.21x

30.56x
17.74x
40.00x

18.99x
10.89x
25.08x

18.54x
10.71x
24.43x
Seek Times
Random:
1/3:
Full:

134ms
150ms
202ms

120ms
135ms
203ms

188ms
217ms
351ms

152ms
162ms
244ms
CPU Usage
1x:
2x:
4x:
8x:

0%
1%
2%
4%

1%
1%
8%
10%

1%
1%
2%
5%

0%
2%
3%
4%

The DH-4B1S also reads CD-RW media at 40x. As you can see, the drive had no problems reaching this speed in our tests.

CD Speed v4.7.7.7 (DAE) - Pressed CD:

For this test I used Pure Funk. The CD is almost exactly 74 minutes. This helps to squeeze the maximum performance out of the CD.

Exact Audio Copy can tell us a lot about a drive's capabilities. You can see from the screen shot that while the Lite-On DH-41BS supports accurate stream and caches audio data, it does not have the ability to retrieve C2 error information.


CD Speed Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Average:
Start:
End:
DAE Quality:
Accurate Stream:
31.41x
18.00x
41.55x
10
Yes
30.72x
18.00x
40.30x
10
Yes
25.59x
14.04x
33.84x
10
Yes
18.66x
10.98x
24.75x
10
Yes

The DH-4B1S performed very well when ripping pressed audio CD's. With a maximum DAE speed of 41.55x, it had no problems taking the top spot in our tests.

CD Speed v4.7.7.16 (DAE) - CD-R Media:

For this test I used a copy of the Pure Funk CD. It's burned onto the same Memorex Gold 74 minute media I used in the CD Speed tests.


CD Speed Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Average:
Start:
End:
DAE Quality:
Accurate Stream:
31.12x
17.95x
41.03x
10
Yes
30.44x
17.99x
39.86x
10
Yes
25.40x
14.17x
33.46x
10
Yes
18.46x
10.88x
24.31x
10
Yes

Lite-On's new Blu-ray drive was a little slower when ripping audio CD-R discs. Nevertheless, this didn't keep it from reaching amaximum DAE speed of 41x in our tests. So how did it do in CD Speed's advanced DAE tests? Take a look below.

The DH-4B1S completed CD Speed's advanced DAE tests with an average score of 29.60x. The drive had no problems passing all of the on-the-fly tests and did not create any errors. If you look at the advanced features, you can see that the DH-4B1S was able to read the CD-Text, subchannel data and lead in but failed to read the lead out section of the CD.


CD Write and ReWrite Tests - Nero Burning Rom 7.11.10.0 andDLA 5.20:

For this test I randomly generated 650MB and 700MB of files and directories to test the time it takes the drive to write and close a CD. All of the files are between 1MB and 25MB in size and no more than 10 directories deep.

The DH-4B1S has a maximum CD writing speed of 40x. To reach this speed, it uses CAV, or Constant Angular Velocity. With Taiyo Yuden's 52x media, the drive started writing at about 17.57x and reached a maximum speed of 40.74x at the end of the session. This gave Lite-On's new drive an average writing speed of about 27.18x.

To test the drive's writing times, I wrote our test data to some Taiyo Yuden media rated at 52x. The results are below.

Size in MB Size in Time Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
701MB 79:44:21 3:34 2:52 5:33 4:45

Lite-On's new drive did fairly well in our CD writing tests. While not as fast as the GGW-H20L, the DH-4B1S was able to write an entire 701MB CD in 3:34.

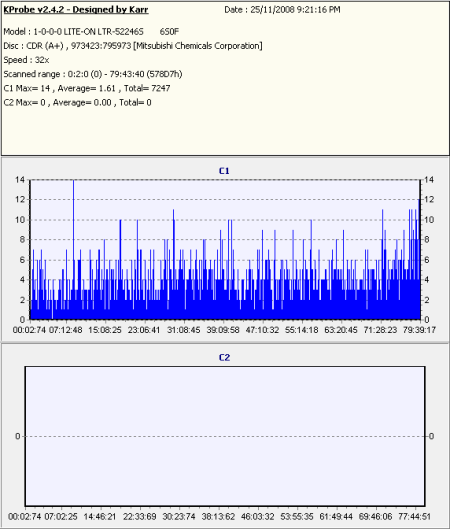

To test the drive's writing quality I used Lite-On IT's KProbe2. Written by Karr Wang, this utility can be used to test the number of C1 and C2 errors on a disc. For these tests I used a Lite-On LTR-52246S (firmware 6S0F) and read the discs at 32x.


Imation 52x (MBI)


Taiyo Yuden 52x


Verbatim 52x

The DH-41BS's writing quality was very good. By looking at the KProbe screenshots, you can see that the discs burned by the drive had a low number of C1 errors. More importantly, there were no C2 errors at all.

For the rewriting tests I created 400MB of files on the hard drive and wrote them in DAO mode using Nero. To test the packet writing speeds I copied and pasted the same files off the hard drive onto a CD-RW disc using DLA from Sonic. Verbatim's 24x Ultra Speed CD-RW media was used for these tests.

While the DH-4B1S uses P-CAV when writing to CD-R discs, it uses Z-CLV, or Zone CLV, when rewriting at 24x. By looking at the screenshot above, you can see that it uses a total of three "zones" to reach its maximum writing speed. The drive starts writing at 10x and jumps to 16x at the 4 minute mark.The DH-4B1S writes at this speed until about the 46 minute mark. When it reaches this point, its writing speed increases to 24x and stays there until the end of the session.

Software Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Nero 3:35 2:27 3:17 3:25
DLA Write 3:23 2:32 3:37 3:34
DLA Read 1:03 1:17 3:18 2:22

Lite-On's new Blu-ray drive didn't do as well as some of the others in our rewriting tests. Due to its Z-CLV writing method, the DH-41BS took 3:35 to write 400MB with Nero and 3:23 to do the same with DLA.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Quick Erase 23 seconds 20 seconds 25 seconds 19 seconds
Full Erase 5:46 3:42 5:03 5:13

The DH-41BS also erases at 24x. While its Z-CLV writing method didn't have much of an effect on its quick erase time, the drive took 5:46 to do a full erase.


Nero CD Speed v4.7.7.16 - DVD-ROM:

A little editorial note here. Like a CD-ROM, you will get different benchmark results depending on what kind of discs you are using. You are probably going to get varying results from a full data disc to a single layer movie disc. You're also going to get different results for single and dual layer discs.

The DVD Speed website recommends using a single layer DVD-ROM disc with a capacity of at least 4GB. If you use a dual layer disc you probably won't get the best results because most DVD-ROM drives slow down to read them. Some even slow down to read single layer DVD-Video discs. To make a long story short, I am using a 4.37GB single layer, single sided disc for this test.


   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.33x
5.12x
12.49x

12.28x
6.80x
16.42x

9.09x
4.97x
12.16x

6.15x
3.41x
8.22x
Seek Times
Random:
1/3:
Full:

138ms
158ms
209ms

121ms
141ms
213ms

183ms
214ms
298ms

140ms
156ms
296ms
CPU Usage
1x:
2x:
4x:
8x:

5%
9%
17%
32%

4%
8%
14%
23%

5%
9%
16%
30%

6%
9%
17%
32%

The DH-41BS performed fairly well when reading single layer DVD-ROM's. In our tests it started reading at 5.12x and reached a maximum transfer speed of 12.49x.Looking at the other scores, you can see that the drive's seek times were also quite good.

Nero CD Speed v4.7.7.16 - DVD-R and DVD-RW:

First, we'll look at the drive's DVD-R and DVD-RW reading performance. For this I made copies of our DVD-ROM test disk using some general use 16x DVD-R and 4x DVD-RW media from Verbatim and then ran our usual DVD read tests with CD Speed. The results are below.


Verbatim DVD-R
   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.35x
5.14x
12.49x

9.23x
5.12x
12.33x

7.62x
4.17x
10.19x

6.15x
3.40x
8.22x
Seek Times
Random:
1/3:
Full:

139ms
158ms
212ms

102ms
125ms
183ms

193ms
238ms
366ms

152ms
166ms
305ms
CPU Usage
1x:
2x:
4x:
8x:

5%
9%
17%
32%

3%
6%
12%
22%

6%
9%
16%
31%

6%
9%
17%
31%


Verbatim DVD-RW
   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.37x
5.13x
12.54x

7.69x
4.23x
10.29x

6.26x
3.42x
8.37x

6.16x
3.41x
8.25x
Seek Times
Random:
1/3:
Full:

138ms
159ms
212ms

110ms
136ms
206ms

213ms
258ms
402ms

153ms
219ms
355ms
CPU Usage
1x:
2x:
4x:
8x:

5%
10%
17%
32%

4%
7%
13%
24%

6%
9%
16%
31%

6%
9%
17%
31%

The DH-41BS performed very well when reading DVD-R and DVD-RW media. In both cases, the drive reached a maximum transfer speed of about 12.5x.


Verbatim DVD-R DL

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

6.04x
3.35x
8.05x

6.16x
3.42x
8.21x

4.64x
2.56x
6.18x

6.17x
3.43x
8.22x
Seek Times
Random:
1/3:
Full:

152ms
171ms
225ms

155ms
186ms
283ms

212ms
260ms
409ms

158ms
172ms
310ms
CPU Usage
1x:
2x:
4x:

7%
15%
93%

4%
8%
n/a

5%
9%
n/a

4%
8%
n/a

Lite-On's new drive had no problems reading Verbatim's 4x DVD-R DL media. The DH-41BS started reading at 3.35x and reached a maximum transfer speed of 8.05x.

Nero CD Speed v4.7.7.16 - DVD+R and DVD+RW:

Next we'll look at the drive's DVD+R and DVD+RW reading performance. For this I made a copy of our DVD-ROM test disk using some 4x DVD+R and 2.4x DVD+RW media from Verbatim. I then ran our usual DVD read tests with CD Speed. The results are below.


Verbatim DVD+R
   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.35x
5.13x
12.51x

9.22x
5.10x
12.33x

7.63x
4.17x
10.20x

6.15x
3.41x
8.22x
Seek Times
Random:
1/3:
Full:

137ms
162ms
213ms

100ms
130ms
196ms

190ms
240ms
382ms

156ms
169ms
313ms
CPU Usage
1x:
2x:
4x:
8x:

5%
9%
17%
32%

3%
7%
15%
24%

6%
9%
17%
31%

6%
10%
17%
32%


Verbatim DVD+RW

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.36x
5.13x
12.50x

7.69x
4.24x
10.29x

6.25x
3.42x
8.36x

6.15x
3.41x
8.22x
Seek Times
Random:
1/3:
Full:

138ms
161ms
213ms

110ms
129ms
191ms

214ms
263ms
402ms

156ms
170ms
338ms
CPU Usage
1x:
2x:
4x:
8x:

5%
10%
17%
32%

4%
7%
12%
23%

6%
9%
16%
31%

6%
10%
17%
32%

The DH-41BS's performance with DVD+R and DVD+RW media was very similar to what we saw with DVD-R and DVD-RW media.Once again, the drive reached a maximum transfer speed of about 12.5x.

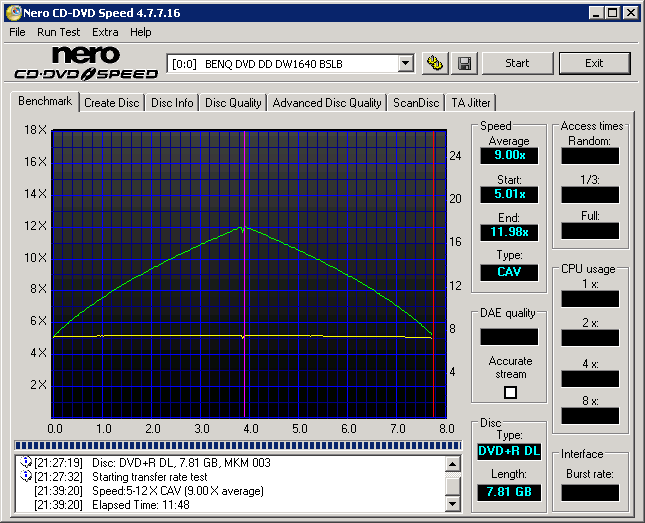

Verbatim DVD+R DL

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

6.04x
3.35x
8.05x

6.17x
3.42x
8.22x

4.64x
2.56x
6.18x

6.18x
3.44x
8.24x
Seek Times
Random:
1/3:
Full:

151ms
174ms
225ms

154ms
189ms
284ms

212ms
260ms
409ms

159ms
170ms
310ms
CPU Usage
1x:
2x:
4x:

7%
14%
94%

4%
8%
n/a

5%
9%
n/a

5%
9%
n/a

Reading Verbatim's double layer DVD+R media wasn't an issue for Lite-On's new drive either. The DH-41BS started reading at 3.35x and reached a maximum transfer speed of 8.05x.

Nero CD Speed v4.7.7.16 - DVD-Video:

For these tests I am using the US version of Transformers: The Movie on DVD. The disc is over 4GB and single sided.



   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

9.24x
5.05x
12.35x

6.06x
3.36x
8.10x

9.01x
4.92x
12.05x

4.61x
2.56x
6.17x
Seek Times
Random:
1/3:
Full:

138ms
160ms
208ms

191ms
231ms
333ms

185ms
224ms
303ms

145ms
162ms
302ms
CPU Usage
1x:
2x:
4x:
8x:

5%
9%
17%
32%

4%
6%
18%
24%

7%
9%
27%
31%

6%
9%
17%
n/a

The DH-41BS didn't slow down very much when reading single layer DVD videos. It started out at about 5.05x and reached a maximum read speed of 12.35x. Lite-On's new drive was also fairly quick when reading dual layer discs. By looking at the screenshot below, you can see that the drive's transfer speeds peaked at about 8x.

To see how well Lite-On's new drive worked as a DVD player, I watched a few scenes from Transformers: The Movie and Star Wars: The Phantom Menace using the bundled version of PowerDVD. The DH-41BS had no problems playing back either movie and was fairly quiet.


DVD Write and ReWrite Tests - Nero Burning Rom 7.11.10.0 andDLA 5.20:

To test the DVD writing performance of Lite-On's new drive I used Verbatim 16x DVD+R, 16x DVD-R, 6x DVD-RW and 8x DVD+RW media. To get the writing times, a 4.38GB image was burned to our test discs using Nero.


Verbatim 16x DVD+R

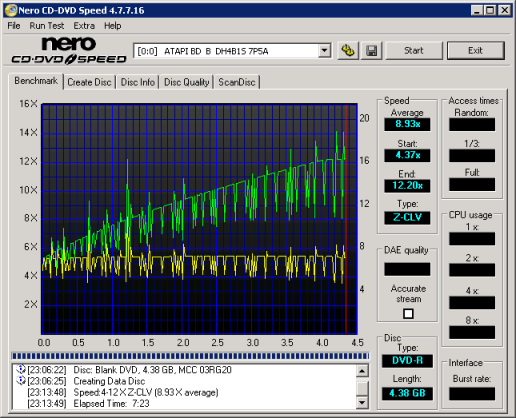

Verbatim 16x DVD-R

The DH-41BS uses P-CAV, or Partial CAV, when writing to DVD+R and DVD-R media at 16x. By looking at the screenshots above, you can see that Lite-On's new drive starts writing at 4.3x and accelerates, reaching its maximum speed at about the 4.1GB minute mark.


Verbatim 8x DVD+RW


Verbatim 6x DVD-RW

The DH-4B1S also features 8x DVD+RW and 6x DVD-RW writing speeds. In both cases the drive uses Z-CLV to reach its maximum writing speed.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
DVD+R 7:12 5:55 10:17 9:29
DVD-R 7:26 5:46 10:11 9:16
DVD+RW 8:28 7:25 7:56 8:24
DVD-RW 10:57 9:59 10:54 10:00

While not nearly as fast as some of the DVD writers we've looked at recently, the DH-41BS performed as expected when writing to both DVD±R and DVD±RW media.

To check the media compatibility of the DH-41BS, I ran a few tests using some of the media available in my area. The media types, along with the average time it took the drive to write our 4.38GB image, are listed below.

   Manufacturer ID Max
Write Speed
Average
Write Time
Memorex 16x DVD+R RICOHJPN R03 12x 7:13
Sony 16x DVD+R SONYD21 12x 7:12
Taiyo Yuden 16x DVD+R YUDEN000T03 12x 7:13
Verbatim 16x DVD+R MCC-004 12x 7:12
RiDATA 16x DVD-R RITEKF1 12x 7:23
Sony 16x DVD-R SONY16D1 12x 7:25
Taiyo Yuden 16x DVD-R TYG03 12x 7:24
Verbatim 16x DVD-R MCC 03RG20 12x 7:26

So what about writing quality? Testing a drive's DVD writing quality isn't easy. Until now, there were very few options, unless you wanted to shell out thousands of dollars for a certified test machine. Thanks to KProbe, we can test a disc's PI (Parity Inner) and PIF (Parity Inner Fail) rates.For these tests I used a Lite-On SOHW-1673S and read the discs at 4x with the PI and PIF ECC sums set to 8 and 1 respectively. For comparison, I also tested the discs on a BenQ DW1640. When combined with Nero CD Speed, the DW1640 is able to report PI Errors, PI Failures, Parity Outer Failures and even jitter levels. For this test, the discs are read at 8x with both the PI and PIF ECC sums set to 8.

So what are "good" results supposed to look like? With KProbe, the PI errors should not exceed 280 and the number of PIF errors should stay below 4. When testing with CD Speed, the number of PI errors should stay below 280 as well. However, because it scans with an ECC sum of 8, a higher number of PIF errors is acceptable, as long as they do not exceed 32. Since POF errors are uncorrectable, we really don't want to see any of them at all.

I also put these discs through a "stress test" by reading them back at 16x with the DW1640. By reading these discs back at this speed, we can see if there are any readability issues caused by the number of errors or high levels of jitter.

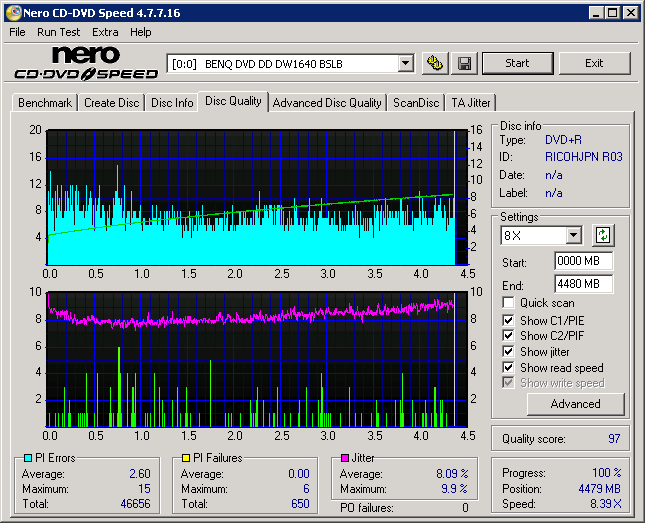

Memorex 16x DVD+R @ 12x
(
RICOHJPN R03)

BenQ DW1640 - CD Speed
Transfer Rate

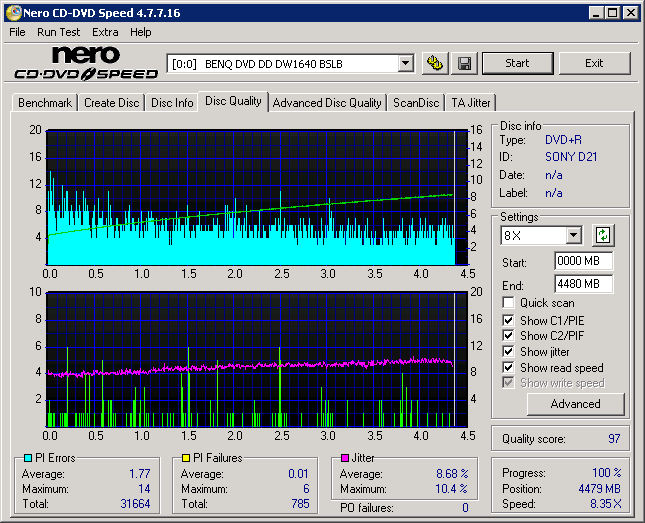

Sony 16x DVD+R @ 12x
(SONYD21
)

BenQ DW1640 - CD Speed
Transfer Rate

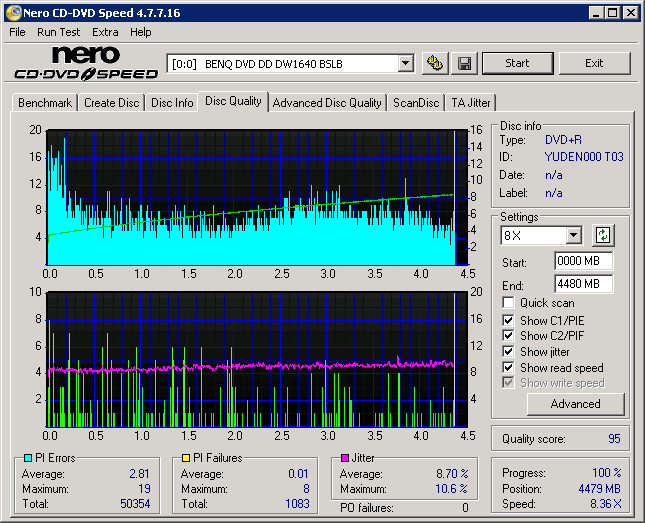

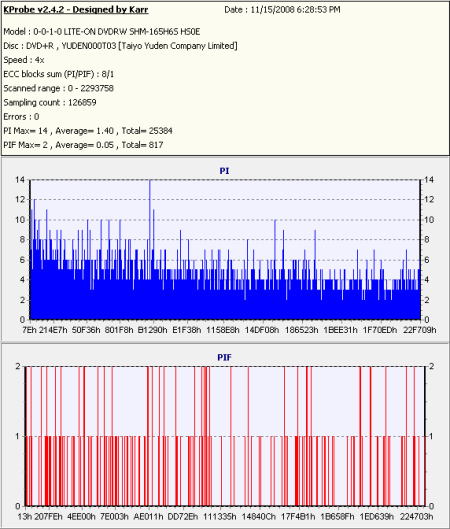

Taiyo Yuden 16x DVD+R @ 12x
(
YUDEN000T02)

BenQ DW1640 - CD Speed
Transfer Rate


Verbatim 16x DVD+R @ 12x
(
MCC-004)

BenQ DW1640 - CD Speed
Transfer Rate

The DH-41BS's writing quality was pretty good with most of the DVD+R media we tested. Aside from a few small spikes, the PI/PIF rates stayed within acceptable limits.


RiDATA 16x DVD-R @ 12x
(RITEKF1)

BenQ DW1640 - CD Speed
Transfer Rate

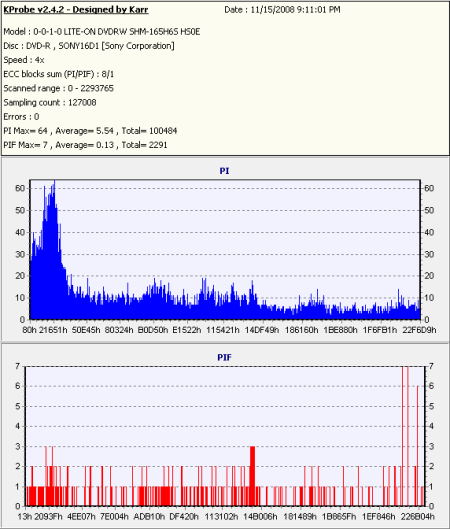

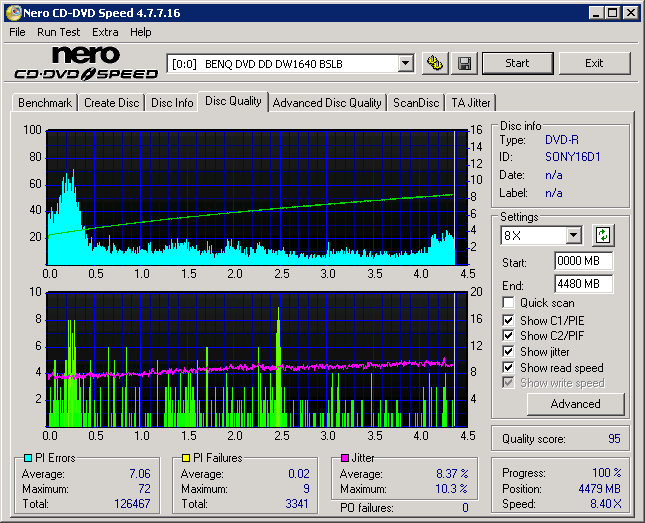

Sony 16x DVD-R @ 12x
(
SONY16D1)

BenQ DW1640 - CD Speed
Transfer Rate


Taiyo Yuden 16x DVD-R @ 12x
(TYG03)

BenQ DW1640 - CD Speed
Transfer Rate

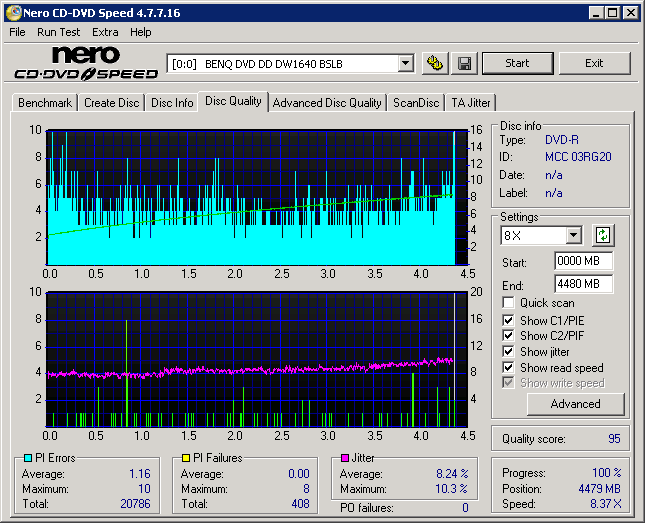

Verbatim 16x DVD-R @ 12x
(
MCC 03RG20)

BenQ DW1640 - CD Speed
Transfer Rate

Lastly, here are some results from our DVD-R test media. While the writing quality varied from one manufacturer to another, the results were pretty good for the most part.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
DVD+RW Quick 4 seconds 3 seconds 4 seconds 3 seconds
DVD+RW Full 8:33 7:22 7:55 8:14
DVD-RW Quick 38 seconds 26 seconds 32 seconds 22 seconds
DVD-RW Full 10:51 9:55 14:48 9:51

To test the DH-41BS's packet writing performance I used DLA 5.20. Verbatim 8x DVD+RW and 6x DVD-RW media was used once again.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
DVD+RW Write 7:38 6:35 8:11 7:32
DVD+RW Read 5:59 9:05 9:52 9:05
DVD-RW Write 9:09 8:24 10:14 8:25
DVD-RW Read 6:04 8:41 10:01 8:33

The DH-41BS performed fairly well in our packet writing tests. While not the fastest drive we've tested, it turned in some respectable times when reading and writing to DVD+RW and DVD-RW media.

Double Layer DVD Write Tests - Nero Burning Rom 7.11.10.0:

To test the double layer DVD writing performance of the DH-41BS, I used DVD+R DL and DVD-R DL media from Verbatim and Memorex. I created about 8GB of random files and directories on my hard drive and then burned them to our test discs with Nero.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
DVD+R DL Write 19:39 27:24 27:31 27:05
DVD-R DL Write 21:28 27:52 27:38 26:54

The DH-41BS had no problems taking the top spot in this test. Thanks to its 8x writing speed, the drive took 19:39 to write 8001MB of data to DVD+R DL media and 21:28 to do the same with DVD-R DL discs. So what about writing quality? Take a look below.

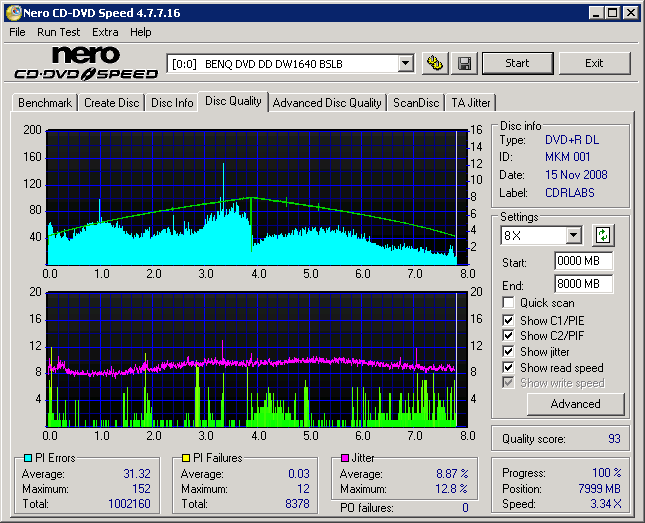

Verbatim 2.4x DVD+R DL @ 2.4x
(MKM 001)

BenQ DW1640 - CD Speed
Transfer Rate

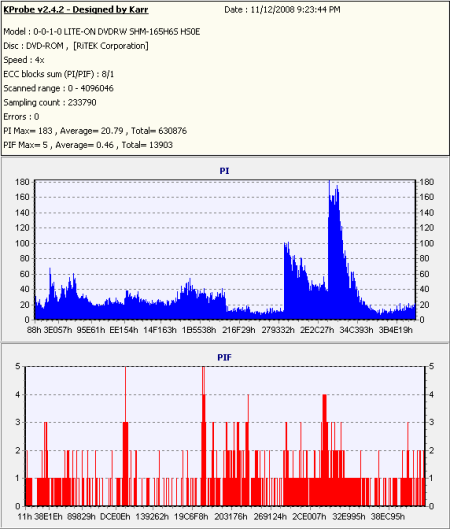

Memorex 8x DVD+R DL @ 8x
(RITEK S04)

BenQ DW1640 - CD Speed
Transfer Rate

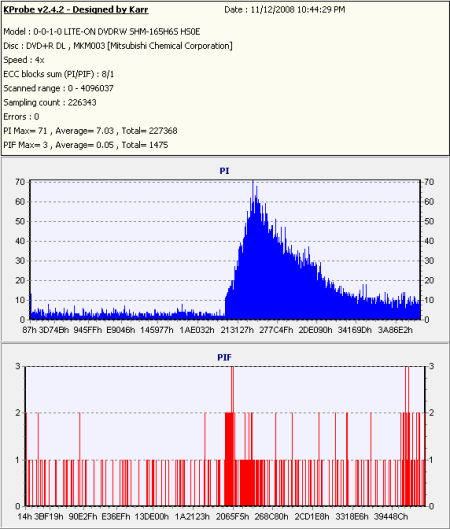

Verbatim 8x DVD+R DL @ 8x
(MKM 003)

BenQ DW1640 - CD Speed
Transfer Rate


Verbatim 8x DVD-R DL @ 8x
(
MKM 02RD30)

BenQ DW1640 - CD Speed
Transfer Rate

The writing quality was pretty good with Verbatim's 2.4x and 8x DVD+R DL media. Aside from a few small spikes, the PI/PIF rates stayed within acceptable limits and there were no readability problems. Memorex's 8x DVD+R DL and Verbatim's 8x DVD-R DL also yielded some fairly decent results with KProbe. However, when scanned with the BenQ DW1640, the error rates were fairly high throughout some sections of the discs.


Nero CD Speed v4.7.7.16 - BD-ROM:

To test the DH-41BS's BD-ROM reading performance, I used the Blu-ray Disc version of The Fifth Element. This single layer disc is about 23GB in size.


   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

3.02x
1.67x
3.99x

3.61x
2.01x
4.82x

3.05x
1.70x
4.07x

2.00x
2.00x
2.00x
Seek Times
Random:
1/3:
Full:

108ms
4ms
3ms

117ms
175ms
223ms

148ms
275ms
385ms

123ms
228ms
407ms
CPU Usage
1x:
2x:
4x:
8x:

2%
1%
3%
4%

0%
1%
1%
2%

0%
1%
2%
3%

0%
1%
2%
3%

The DH-4B1S performed relatively well when reading BD-ROM discs. While not as fast as the drives from LG, it reached a maximum transfer speed of 3.99x.

Lite-On's Blu-ray Disc writer had no problems playing back The Fifth Element and The Simpsons Movie using the bundled version of PowerDVD. Just keep in mind that if your monitor is connected to your video card using DVI or HDMI, both need to be HDCP compliant to play AACS protected titles. If not, you can still play them by switching the connection to VGA or using software like Slysoft's AnyDVD HD.

Nero CD Speed v4.7.7.16 - BD-R and BD-RE:

Next we'll look at the drive's BD-R and BD-RE reading performance. For this I created a few data discs using single layer BD-R and BD-RE media from Memorex and then ran our BD read tests with CD Speed.


Memorex BD-R
   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

3.02x
1.71x
4.03x

4.55x
2.58x
6.04x

3.06x
1.75x
4.07x

2.00x
1.99x
2.00x
Seek Times
Random:
1/3:
Full:

109ms
4ms
3ms

121ms
167ms
217ms

206ms
317ms
441ms

101ms
215ms
390ms
CPU Usage
1x:
2x:
4x:
8x:

2%
1%
3%
5%

0%
0%
2%
2%

0%
1%
2%
3%

0%
1%
2%
4%


Memorex BD-RE

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
Transfer Speed
Average:
Start:
End:

1.99x
1.96x
1.99x

2.30x
2.29x
2.30x

2.51x
1.43x
3.34x

2.00x
1.99x
2.00x
Seek Times
Random:
1/3:
Full:

111ms
10ms
10ms

150ms
263ms
766ms

223ms
330ms
441ms

101ms
219ms
391ms
CPU Usage
1x:
2x:
4x:
8x:

8%
9%
14%
24%

0%
1%
2%
2%

0%
1%
2%
3%

0%
1%
2%
4%

Lite-On's new drive had no problems reading BD-R and BD-RE media. In our tests, the DH-41BS was able to read BD-R discs at 4x and BD-R DL media at about 2x. For whatever reason, the 1/3 and full seek times were much lower than they should have been.


Sony BD-R DL

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Transfer Speed
Average:
Start:
End:

2.00x
1.99x
2.00x

3.67x
2.10x
2.12x

2.52x
1.44x
1.46x
Seek Times
Random:
1/3:
Full:

114ms
9ms
7ms

137ms
181ms
737ms

221ms
334ms
810ms
CPU Usage
1x:
2x:
4x:
8x:

5%
2%
3%
4%

0%
1%
3%
6%

0%
1%
1%
3%

Unfortunately, the DH-4B1S ran into some trouble when reading BD-R DL media. I tried a number of discs and the drive would either not recognize them at all or lock up the computer when I launched CD Speed. I finally found one that worked and as you can see, the DH-4B1S read it at 2x from start to finish.


BD Write and ReWrite Tests - Nero CD Speed v4.7.7.16:

To test the BD writing performance of Lite-On's new drive I used BD-R and BD-RE media from Memorex, Sony, TDK and Verbatim. To get the writing times, CD Speed's "Create Data Disc" feature was used. I also ran the discs through CD Speed's transfer rate test to make sure that the DH-4B1S could read them back. .


Verbatim 25GB BD-R


Verbatim 25GB BD-RE

The DH-4B1S writes to BD-R media at 4x. Looking at the screenshot above, you can see that the drive starts writing at 3.3x and then jumps to 4x at the 1GB mark.

   Lite-On
DH-4B1S
LG
GGW-H20L
LG
GGW-H10N
Sony
BWU-100A
BD-R 24:05 21:25 27:29 45:22
BD-RE 46:25 39:24 45:14 45:03
BD-R DL failed 44:57 90:22 90:34

The DH-4B1S performed fairly well when writing to BD-R media.While not as fast as the GGW-H20L, it took a little more than 24 minutes to burn an entire 25GB disc. Unfortunately, Lite-On's new drive failed when writing to Sony's BD-R DL media. After 90 or so minutes, the DH-4B1S locked up, causing CD Speed and eventually Windows to hang.

   Manufacturer ID Max
Write Speed
Write Time
Memorex 25GB 2x BD-R MEI T01 2x 48:24 Transfer Rate
Sony 25GB 2x BD-RE SONY ES1 2x 46:26 Transfer Rate
TDK 25GB 4x BD-R TDKBLDRBB 4x 24:26 Transfer Rate
Verbatim 25GB 4x BD-R VERBATIMa 4x 24:05 Transfer Rate
Verbatim 25GB 2x BD-RE VERBATIM0 2x 46:25 Transfer Rate

Aside from the problems with Sony's BD-R DL media, burning Blu-ray Discs went off without a hitch. The DH-4B1S wrote to all of our test media at its rated speeds and, looking at the transfer rates, you can see that it had no problems reading the discs back.

Performance Revisited:

While Lite-On's Blu-ray Disc writer has a few rough spots, it performed as expected throughout most of our tests. The DH-4B1S worked well with all of the BD-R and BD-RE media I tried, but had some issues with BD-R DL discs. Reading and writing to CD's and DVD's wasn't a problem for the drive either. The DH-4B1S had no problem reaching its rated read speeds and held its own fairly well in our writing tests. With all things considered, the Lite-On DH-4B1S gets a 7 out of 10 for the performance section of this review.


While the DH-4B1S isn't the fastest or most feature packed Blu-ray Disc writer to come through the 'Labs, it just might be the answer for those on a budget. With a price tag of less than $200 in some places, it is currently one of the most affordable Blu-ray Disc writers on the market.

The DH-4B1S is the first drive from Lite-On with the ability to write to BD-R media at 4x. At this speed, it took a little more than 24 minutes to burn an entire 25GB disc. The DH-4B1S wasn't as fast when writing to BD-RE media. However, its performance was on par with the other Blu-ray Disc writers I've tested. Unfortunately, the drive had some problems writing to BD-R DL media. Hopefully, Lite-On can fix this in a future firmware update.

Using the bundled software, the DH-4B1S played all of the Blu-ray movies I had on hand, including those protected by BD+. The drive also performed fairly well in our transfer rate tests, reading BD-ROM's and BD-R discs at 4x. However, its speeds were limited to only 2x when reading BD-RE and BD-R DL media.

With a maximum DVD±R writing speed of 12x, the DH-4B1S is no match for the current crop of DVD writers. Nevertheless, it was faster than most of the Blu-ray drives I've tested, burning an entire 4.7GB DVD in a little more than 7 minutes. The drive also had no problems holding its own when writing to other types of media. However, the writing quality could have been better with some DVD±R DL discs. The DH-4B1S was fairly quick when reading DVD's. In our tests, it was able to read single layer data and video DVD-ROM's as well as most recordable media at 12x.

Reading and writing CD's wasn't a problem for the DH-4B1S either. In our tests, it read all types of CD media at 40x and had some fairly good seek times. This level of performance carried over to our DAE tests, where the drive ripped audio CD's at speeds as high as 40x.As a writer, the DH-4B1S performed as expected. The drive turned in some very good times with CD-R media and its writing quality was quite good. Unfortunately, due to its Z-CLV writing method, it wasn't as fast as some of the other drives in our rewriting tests.

Lite-On's Blu-ray Disc writer also has its share of features. To prevent buffer underruns, the DH-4B1S has an 8MB buffer that is backed up by Seamless Link buffer underrun protection. While the drive only utilizes 2MB of the buffer when writing CD's, this system worked flawlessly in our tests. The DH-4B1S also has the ability to set the book type of DVD+R and DVD+R DL media and comes with a great software bundle from CyberLink.

In the end, it usually comes down to price. For what it offers, Lite-On's Blu-ray Disc writer is surprisingly affordable. The retail version of the DH-4B1S can be purchased for less than $270 through the vendors listed on Pricegrabber. Otherwise, if you shop around, you can pick up the OEM version of the drive for around $200.

Lite-On DH-4B1S 4x
Blu-ray Disc Triple Writer
Features:
Installation:
Performance:
8
8
7
Overall: 8

Highs:

  • Writes to BD-R media at 4x
  • Writes to BD-RE and BD-R DL media at 2x
  • Writes to DVD-R and DVD+R media at 12x
  • Writes to DVD+RW media at 8x
  • Writes to DVD-RW media at 6x
  • Writes to DVD+R DL and DVD-R DL media at 8x
  • Reads single layer BD-ROM's and BD-R media at 4x
  • Reads single layer DVD-ROM's at 12x
  • Reads DVD±R and DVD±RW media at 12x
  • Reads DVD±R DL media at 8x
  • Features 40x CD-R and 24x CD-RW writing speeds
  • Includes buffer underrun prevention technology
  • 8MB buffer
  • Good CD-R and DVD±R writing quality
  • Supports bitsetting for DVD+R and DVD+R DL media
  • Includes software from CyberLink
  • Supports 99 minute CD-R media
  • Affordably priced

Lows:

  • Problems reading and writing to BD-R DL media
  • Questionable writing quality with some DVD±R DL media
  • Reads BD-RE and BD-R DL media at only 2x
  • Cannot set the book type of DVD+RW media
  • Buffer limited to 2MB when writing CD's
