Model: Sony DRU-840A 20x DVD±RW/RAM
Manufacturer: Sony Electronics
Provided By: Sony America
Sony has been a leader in the consumer electronics industry for as long as I can remember. For more than 50 years, this Japanese company has lead the way, producing innovative products for the audio, video and computer markets. Sony is no stranger to the optical storage industry either. From the development of the first compact disc standards to the introduction of the first dual format DVD writer, Sony has played a major role in much of the technology used today.
Since the introduction of their first dual format DVD writer, Sony has continued to develop drives with new features and faster reading and writing speeds. The latest addition to Sony's already impressive line of DVD writers is the DRU-840A. Announced in August, this new "Super-Multi" drive offers some of the fastest reading and writing speeds available. The DRU-840A is capable of 20x DVD±R, 8x DVD+RW, 6x DVD-RW and 12x DVD-RAM writing speeds and is the first drive from Sony with the ability to write to both DVD+R DL and DVD-R DL media at 12x. The DRU-840A also includes features like 48x CD reading and writing speeds, 32x rewriting speeds, Power-Burn buffer underrun protection and a software bundle from Nero.
With features and specs like this, it's hard not to be impressed by Sony's new "Super-Multi" drive. To give you an idea of what to expect from the DRU-840A, we'll take a look at its features and then see how it compares to some of the 20x DVD±RW drives from the competition. Does Sony's new drive have what it takes? Is it the fastest DVD writer around? Keep reading to find out.
What's in the box?:
- Sony DRU-840A 20x DVD±RW/RAM Drive
- Sony Software Disc v7.90W
- Product Information Guide
- Quick Start Guide (for ATAPI (EIDE) Interface Drive)
- Front Panel Replacement Guide
- Black Replacement Bezel
- Mounting Screws
- Warranty Information
Physical Features:
The drive Sony sent us for this review was manufactured in July of 2007 and had firmware version SS20. At the time of this review, this is the only official firmware available for the DRU-840A.
From the front, the DRU-840A looks very similar to Sony's 18x DVD writer, the DRU-830A. While there are a few slight cosmetic differences, the two drives share the same basic design, including the silver colored tray. The DRU-840A also has many of the same logos. Along with the Sony logo, you can see a few showing support for the DVD+ReWritable and DVD Multi specifications, as well as Ultra Speed CD-RW media.
Below the tray you can see the DRU-840A's single LED. Off by default, this LED lights up green when the drive is reading or writing.
If white and silver aren't exactly your colors, you're in luck. Sony also includes a black replacement bezel with the DRU-840A, but oddly enough, there is no hole for the LED to shine through.

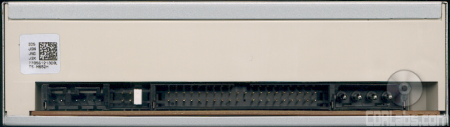

The rear of the DRU-840A is fairly straight forward. By looking at the picture below you can see the drive's IDE interface, power connector and audio output connectors.
Starting from the left of the IDE connection you'll see the jumper switch for master, slave and cable select. Next to the jumper block is the analog audio connector. The connector on the far left is the digital audio output.
It's hard to see, but the label on the back of the drive shows that the DRU-840A is based on the Samsung TS-H652H, otherwise known as the SH-S202H.
Technical Specs:
The specs below have been taken from Sony's website and the documentation that came along with the drive.
Sony DRU-840A 20x DVD±RW/RAM | |
CD Write Speeds | 48x (CAV) 40x, 32x, 24x (P-CAV) 16x, 8x (CLV) |
CD Rewrite Speeds | 32x, 24x (Z-CLV) 16x, 10x, 4x (CLV) |
DVD+R Write Speeds | 20x, 18x, 16x, 12x (CAV) 8x (Z-CLV) 6x, 4x (CLV) |
DVD+RW Write Speeds | 8x (Z-CLV) 6x, 4x, 2.4x (CLV) |
DVD-R Write Speeds | 20x, 18x, 16x, 12x (CAV) 8x, (Z-CLV) 6x, 4x, 2x (CLV) |
DVD-RW Write Speeds | 6x (Z-CLV) 4x, 2x, 1x (CLV) |
DVD+R DL Write Speeds | 12x, 10x, 8x, 6x (Z-CLV) 4x, 2.4x (CLV) |
DVD-R DL Write Speeds | 12x, 10x, 8x, 6x (Z-CLV) 4x, 2x (CLV) |
DVD-RAM Write Speeds | 12x (P-CAV) 5x, 3x, 2x (CLV) |
DVD Read Speeds | 16x Max (DVD-ROM Single Layer) 12x Max (DVD-ROM Dual Layer) 16x Max (DVD±R) 12x Max (DVD±RW) 12x Max (DVD±R DL) 12x Max (DVD-RAM) |
CD Read Speeds | 48x Max (CD-ROM) 40x Max (CD-R/CD-RW) |
DAE Speed | 40x Max |
Buffer Size | 2 MB |
Random Access Times |
110 ms (CD) 130 ms (DVD) |
CD Formats | CD-DA CD-ROM CD-ROM XA CD-R CD-RW CD+E(G) CD-MIDI Mixed Mode CD Photo CD Video CD CD-Extra CD-I CD-I Bridge Multisession CD CD-Text |
DVD Formats | DVD-ROM DVD-R/RW DVD+R/RW DVD+R DL DVD-R DL DVD-RAM |
CD Recording Modes | Track At Once Session At Once Disc At Once Packet Writing |
DVD Recording Modes | Random Write Sequential Write |
More Features:

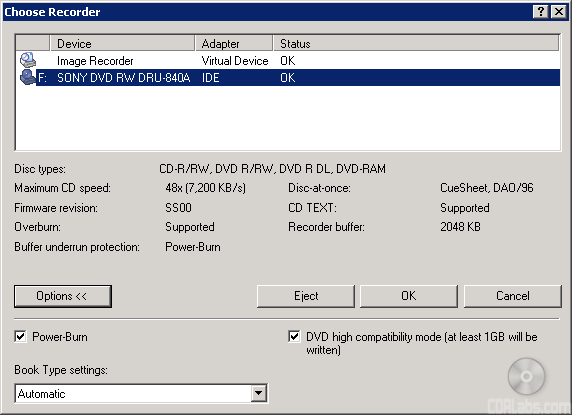

By looking at the picture below, you can see that Sony's new DVD writer is identified as a "SONY DVD RW DRU-840A."
Nero also shows that the DRU-840A has a maximum CD writing speed of 48x and a 2048KB buffer. This buffer is also backed up by Sony's Power-Burn buffer underrun protection. According to Nero, the DRU-840A can also write CD-Text and overburn. When testing the drive's capacity, it had no problems overburning up to 99 minutes with our CompUSA media.
Using Alex Noe's Weak Sector Utility we were able to determine that the DRU-840A is a "two sheep" burner and is capable of backing titles protected by SafeDisc 2.90. Like most drives, it did not pass the "three sheep" test.
Here is a screen shot from Nero's InfoTool. This program queries the drive to see what its reading and writing capabilities are. InfoTool had no problems detecting the DRU-840A's maximum reading and writing speeds, recording modes, buffer underrun protection and 2MB buffer.
InfoTool also shows that the DRU-840A is an RPC-2 DVD drive. This means that the drive's region is stored in the firmware. The region can be changed five times and after that it cannot be changed anymore. Unfortunately, a patched RPC-1 firmware is not yet available for this drive.
While InfoTool gives us a quick glance at the DRU-840A's features, DVDINFOpro provides a little more information on some of the drive's reading and writing capabilities. By looking at the screenshot above you can see that Sony's new drive can read and write to DVD+R DL, DVD-R DL and DVD-RAM media. Take note that unlike its Samsung counterpart, the DRU-840A does not support the Mt. Rainier format.
Sony's new DVD writer also supports a feature called "bitsetting".Using software like Nero, you can set the book type forDVD+R, DVD+RW and DVD+R DL media to "DVD-ROM". This feature comes in handy if you have an older DVD player that has problems playing recordable media.
Sony has once again turned to Nero for their software bundle. The CD that comes with the DRU-840A contains a slimmed down version of the Nero 7 Essentials suite which includes Nero Express, Nero Vision, and Nero ShowTime.

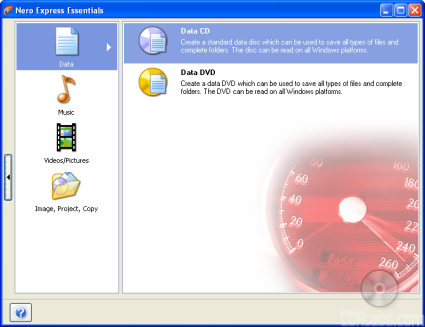

Nero Express 7 - With Nero Express, Nero has taken the features and performance people have come to expect from Nero Burning Rom and combined them with a user friendly interface. Redesigned to maximize ease-of-use, Nero Express gives users the ability to quickly and easily burn audio, data and video to CD or DVD.
The version of Nero Express that Sony included with their new DVD±RW drive is 7.5.14.2. You can download the latest version of the software from Nero's website.
Nero Vision 4 - Nero Vision 4 is the latest version of Nero's video authoring application. Thanks to a user friendly interface, Nero Vision makes it easy for users to capture, edit and then burn their favorite videos to VCD, SVCD or DVD or export it to Nero Digital format.
Nero Vision also lets users add things like transitions, custom backgrounds, animated menus and text effects. You can even use it to turn your photos into custom slide shows.
Nero ShowTime 3 - Nero ShowTime is Nero's software DVD player. Along with support for DVD's, ShowTime can be used to play back VCD's, SVCD's and miniDVD's as well as any MPEG, AVI or Nero Digital files you might have on your hard drive.
With the DRU-840A, Sony has delivered yet another feature packed DVD writer. Like the Samsung drive its based on, the DRU-840A supports all major DVD formats and sports some pretty impressive specs. The drive is capable of 20x DVD±R, 10x DVD±R DL, 8x DVD+RW, 6x DVD-RW and 12x DVD-RAM writing speeds and a maximum DVD read speed of 16x. Sony's new drive also includes features like Power-Burn buffer underrun protection, support for bitsetting and a software bundle from Nero. With all this it's easy to see why the Sony DRU-840A gets an 8 out of 10 for its features.
Installing Sony's new "Super Multi" drive took only a couple of minutes. I took the DRU-840A out of the box, left the jumper set to master and installed it on the secondary IDE chain by connecting the IDE cable and power connector. When I turned on the computer the BIOS detected it as a drive supporting UDMA 66. After making sure that the DMA was enabled in the Device Manager, I was ready to start installing the software.
Software Installation:
As I mentioned earlier, the DRU-840A comes with a CD full of software from Nero. If you have autorun enabled on your computer, the menu shown below will appear when you insert the disc. As you can see, the software and documentation is available in a number of different languages.
After selecting your preferred language, you'll be given a short list of options. From here you can choose to install the bundled software, check out the manual or visit Sony's user support web page.
By default the setup program will install the entire Nero 7 Essentials suite onto your computer. If you don't want to install everything, select the custom installation. From here you can choose the components you want.
Documentation:
Instead of including one big manual, the DRU-840A's documentation is spread out between a number of small, fold out "guides." To help people get their drive up and running as quickly as possible, Sony has included a "Quick Start Guide."This guide takes the user step by step through the entire installation process and covers all the basics including how to set the jumpers, install the drive into an empty drive bay and hook up the cables. If you're not sure whether the drive should be set up as a master or slave, it also has a few example configurations along with their corresponding jumper settings.
Sony's new drive also includes a set of "Operating Instructions." The first section of this guide contains information on the DRU-840A's package contents, features and system requirements. It also goes over the various buttons and connectors located on the front and back of the drive. Everything is labeled clearly and the functions of each are explained very well. The guide continues on by going over the physical installation of the drive. The instructions and diagrams are very similar to the ones found in the Quick Start Guide. The guide finishes up by going over the basic operation of the DRU-840A. This section covers a number of topics including compatible discs, region codes and how to enable the Turbo Boost function. If you need additional help, Sony's support website has a number of resources includingFAQ's, guides and software updates.
In the end, installing the DRU-840A was very easy. I had no problems getting the drive or the software installed and working. If you need help for some reason, the documentation Sony has provided is more than sufficient. However, the way it is spread out can make it hard to find what you're looking for. Even then, the DRU-840A scores a solid 8 out of 10 for the installation portion of this review.
While CPU, memory, OS and other variables don't often make a huge difference, there are some nonetheless. We have a computer that is used only for testing hardware. We do this so all tests can be compared reliably.
Test System:
CPU: | AMD Athlon 64 X2 4600+ 2.4GHz | |
Motherboard: | ASUS M2N-SLI Deluxe with BIOS 0304 | |
Memory: | Corsair TWIN2X2048-6400 | |
Video Card: | MSI NX7900GT-T2D256E - ForceWare v93.71 | |
Hard Drive: | Seagate Barracuda 7200.10 SATA 3.0Gb/s 320GB | |
Operating System: | Windows XP SP2 - NVIDIA nForce v9.16 |
For DVD writers the performance tests are broken down into four sections: CD read, CD write, DVD read and DVD write tests. Each benchmark test has been run three times. The score given is an average of the three. DMA has been enabled in device manager for all IDE devices supporting it.
CD Read Tests: For the read performance section of the CD-ROM benchmarks, CD WinBench 99 v3.0 and CD Speed v4.7.7.5 are used to test read speeds, seek times and CPU usage. For DAE testing both CD Speed and CD DAE are used. CD Speed is used to give an overall DAE speed rating and CD DAE is used to give the track by track extraction speeds and to check the extracted tracks for errors the drive may have created.
CD Write Tests: To test the write speeds, Nero Burning Rom is used to write 700MB to our test media. Times are recorded. To test rewrite scores, Nero is used again to time how long it takes to write 400MB of random files and directories. Then Sonic's DLA is used to test packet writing speeds. The same files are copied and pasted in Windows Explorer and timed.
DVD Read Tests: For the read performance section of the DVD benchmarks CD Speed v4.7.7.5 is used to test read speeds, seek times, and CPU usage.
DVD Write Tests: To test the DVD write speeds, Nero Burning Rom is used to write 4GB to our test media. Times are recorded. Then Sonic's DLA is used to test packet writing speeds. The same files are copied and pasted in Windows Explorer and timed.
CD Winbench 99 Scores:
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
CD Winbench 99 | 2370 KB/sec | 2190 KB/sec | 2140 KB/sec | 1638 KB/sec |
Transfer Rate: Inside | 3260 KB/sec | 3070 KB/sec | 3025 KB/sec | 3060 KB/sec |
Transfer Rate: Outside | 6460 KB/sec | 6450 KB/sec | 6470 KB/sec | 6390 KB/sec |
Random Access Time | 81ms | 84ms | 95ms | 100ms |
CPU Utilization | 0.46% | 2.11% | 0.45% | 0.45% |
The CD Winbench test is as close as we can get to testing every day usage. It fires off eight different applications using scripts. This tries to mimic the activities of a person loading these programs onto their own computer.
Sony's new DVD writer performed very well in our CD Winbench tests. In the transfer rate tests, the DRU-840A started reading at 21.7x (3260 / 150) on the inside and reached a maximum speed of about 43.1x (6460 / 150) on the outside. As you can see, this resulted in a very good overall CD Winbench score.
CD Speed v4.7.7.5 - Pressed CD:
For this test I used a pressed CD containing one Mode 1 data track. The disc is 74:38 in size and is full of data and directories.
Turbo Boost On
Turbo Boost Off
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
36.03x 20.94x 47.64x |
35.97x 20.88x 47.57x |
36.07x 21.40x 47.68x |
35.57x 20.47x 47.04x |
Seek Times Random: 1/3: Full: |
94ms 101ms 172ms |
98ms 104ms 174ms |
97ms 112ms 169ms |
103ms 104ms 174ms |
CPU Usage 1x: 2x: 4x: 8x: |
8% 1% 2% 4% |
0% 1% 2% 4% |
1% 3% 5% 8% |
0% 1% 2% 4% |
While Sony's new DVD writer reads pressed discs at 40x by default, its maximum read speed can be bumped up to 48x by enabling the Turbo Boost function. Unfortunately, like the other drives, the DRU-840A came up a little short of this number in our tests.
CD Speed v4.7.7.5 - CD-R Media:
For this test I made a copy of our pressed test CD. I used 12x rated Memorex Gold 74 minute media for the tests.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
36.82x 21.19x 48.80x |
31.31x 18.08x 41.50x |
36.85x 21.10x 48.84x |
36.35x 20.75x 48.16x |
Seek Times Random: 1/3: Full: |
94ms 99ms 171ms |
97ms 104ms 175ms |
97ms 112ms 163ms |
108ms 119ms 178ms |
CPU Usage 1x: 2x: 4x: 8x: |
8% 1% 2% 5% |
0% 1% 2% 5% |
2% 4% 7% 10% |
0% 1% 2% 4% |
The DRU-840A was a little faster when reading CD-R media.Thanks to this small speed boost, it had no problems reaching a maximum transfer speed of 48x in our tests.
Sony's new DVD writer had no problems recognizing our 99 minute CompUSA media. The DRU-840A read our test disc from start to finish, reaching a maximum transfer speed of 51.41x.
CD Speed v4.7.7.5 - CD-RW Media:
For this test I made a copy of a pressed test CD. I used some PNY 80 minute CD-RW media for the tests.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
30.80x 17.99x 40.68x |
30.75x 17.95x 40.61x |
25.64x 14.90x 33.85x |
31.24x 18.10x 41.27x |
Seek Times Random: 1/3: Full: |
87ms 100ms 169ms |
97ms 102ms 172ms |
108ms 122ms 194ms |
106ms 118ms 177ms |
CPU Usage 1x: 2x: 4x: 8x: |
0% 1% 2% 5% |
0% 1% 2% 5% |
2% 10% 8% 14% |
0% 1% 2% 4% |
While the DRU-840A can read pressed and CD-R media at 48x, its CD-RW read speeds are limited to only 40x. As you can see, the drive had no problems reaching this speed in our tests.
CD DAE and CD Speed v4.7.7.5 - Pressed CD:
For this test I used Pure Funk. The CD is almost exactly 74 minutes. This helps to squeeze the maximum performance out of the CD.
Exact Audio Copy can tell us a lot about a drive's capabilities. You can see from the screen shot that while the Sony DRU-840Asupports accurate stream and has the ability to retrieve C2 error information from the CD, it does not cache audio data.
CD Speed | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
Average: Start: End: DAE Quality: Accurate Stream: |
30.99x 17.82x 40.94x 10 Yes |
30.94x 17.85x 40.88x 10 Yes |
36.41x 21.27x 48.12x 10 Yes |
31.43x 18.12x 41.52x 10 Yes |
The DRU-840A did fairly well in our DAE tests. While not nearly as fast as the drive from Lite-On, it hadno problems ripping pressed audio CD's at 40x.
To get a better look at the quality of the extracted audio we use CD DAE. CD DAE is actually designed to be an audio ripping program. It converts the CD-DA on the CD to .wav files. We use it in our testing because it can also be used as a quick and easy way to test the quality. Where CD Speed tests the DAE as one large session, CD DAE extracts each CD track individually. It actually extracts each track twice and then compares them to check for any errors. Every error a drive creates could be a hiss or pop you would hear later in the audio tracks.
CD DAE | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
Average: Min: Max: |
29.4x 18.7x 40.2x |
29.3x 18.7x 40.1x |
34.0x 21.9x 47.2x |
28.9x 18.9x 40.6x |
Errors | 0 | 0 | 0 | 0 |
While the DRU-840A started out a little faster when extracting our test CD with CD DAE, its average and maximum speeds were slower than what we saw with CD Speed.
CD DAE and CD Speed v4.7.7.5 - CD-R Media:
For this test I used a copy of the Pure Funk CD. It's burned onto the same Memorex Gold 74 minute media I used in the CD Speed tests.
CD Speed | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
Average: Start: End: DAE Quality: Accurate Stream: |
30.70x 17.79x 40.48x 10 Yes |
30.65x 17.76x 40.42x 10 Yes |
36.08x 21.33x 47.58x 10 Yes |
31.14x 18.16x 41.08x 10 Yes |
While the DRU-840A was a little slower when extracting audio from CD-R media, this didn't keep it from reaching amaximum DAE speed of 40x in our tests. So how did it do in CD Speed's advanced DAE tests? Take a look below.
Sony's new DVD writer completed CD Speed's advanced DAE tests with an average score of 29.19x. The drive had no problems passing all of the on-the-fly tests and did not create any errors. If you look at the advanced features, you can see that the DRU-840A was able to read the CD-Text and subchannel data but failed to read the lead in and lead out sections of the CD.
CD DAE | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
Average: Min: Max: |
29.1x 18.6x 39.8x |
29.0x 18.6x 39.6x |
33.8x 21.9x 46.6x |
28.7x 18.9x 40.0x |
Errors | 0 | 0 | 0 | 0 |
To see how well Sony's DVD writer can read scratched and dirty discs, I used CD Speed's ScanDisc utility to see how many sectors were damaged or unreadable. This is a very rough, but good way to test the drive's error correcting abilities.

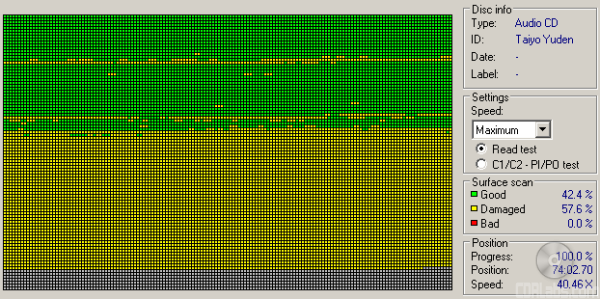

CD Speed - ScanDisc
The DRU-840A handled scratched discs relatively well. By looking at the screenshot, you can see that the drive considered only 57.6% of the CD to be "damaged". More importantly, none of the sectors on the disc were unreadable.
You can also get an idea of how well the drive can read scratched and dirty discs by using CD DAE. CD DAE will extract the audio tracks twice and then compare them. From this information we can see what the drive's average speed was and how many errors it generated.
CD DAE | Avg. Speed | Errors | % of Disc |
Sony DRU-840A |
29.0x | 2345869 | 0.30% |
Samsung SH-S203B |
28.9x | 2418290 | 0.31% |
Lite-On LH-20A1L |
2.1x | 3869615 | 0.50% |
LG GSA-H55L |
10.6x | 2136523 | 0.27% |
Here too, the DRU-840A did pretty well. The scratches on the disc had little effect on the drive's speed and the number of errors remained relatively low.
CD Write and ReWrite Tests - Nero Burning Rom 7.10.1.0 andDLA 5.20:
For this test I randomly generated 700MB of files and directories to test the time it takes the drive to write and close a CD. All of the files are between 1MB and 25MB in size and no more than 10 directories deep. All of the times below include not only the actual writing time, but the lead in and out times too. This gives a more realistic idea of how long it takes to write a CD.
Turbo Boost Off
By default, the DRU-840A has a maximum writing speed of 40x. To reach this speed, it uses P-CAV, or Partial Constant Angular Velocity. By looking at the screenshot, you can see that the drive starts writing at 21.47x and accelerates, reaching its maximum speed at about the 48 minute mark
Turbo Boost On
With the Turbo Boost enabled, the DRU-840A has the ability to write at 48x. Instead of increasing the rotation speed, the drive's writing method switches to CAV. With Fuji's 48x media, the drive started writing at 21.47x and reached a maximum speed of 48.14x at the end of the session. This gave the DRU-840A an average writing speed of about 36.68x.
To test the drive's writing times, I wrote our test data to some Taiyo Yuden manufactured Fujimedia rated at 48x. The results are below.
Size in MB | Size in Time | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
701MB | 79:44:21 | 2:57 | 3:00 | 2:40 | 2:44 |
While faster than the SH-S203B, the DRU-840A took longer than expected to complete our CD writing tests. It trailed behind the drives from Lite-On and LG, taking nearly 3 minutes to write an entire 701MB CD.

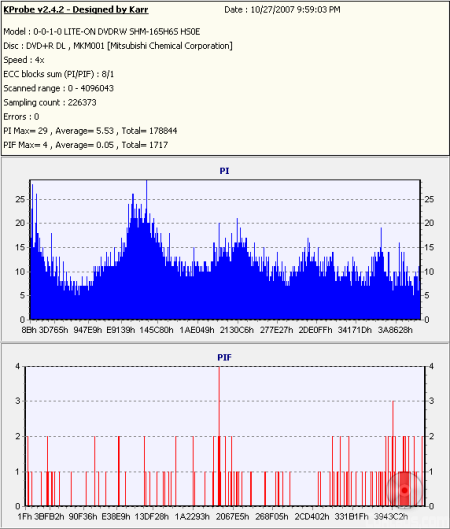

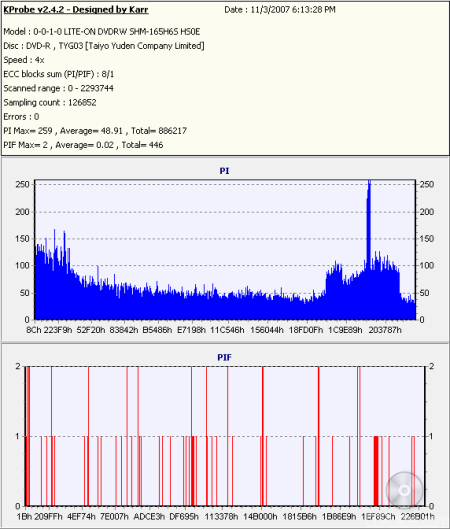

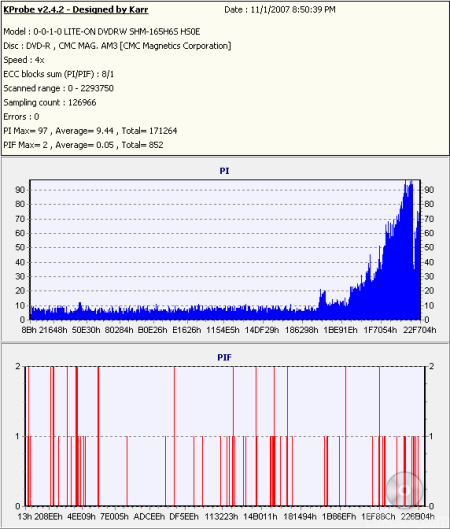

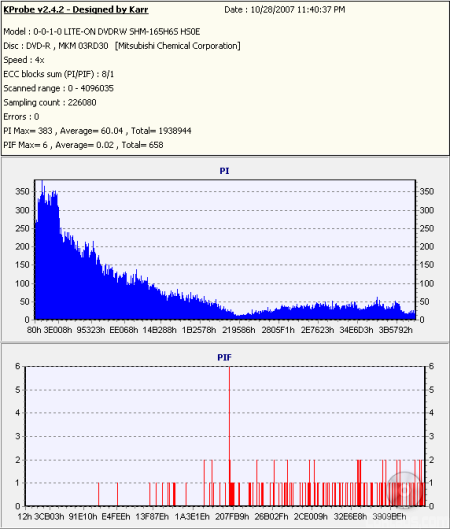

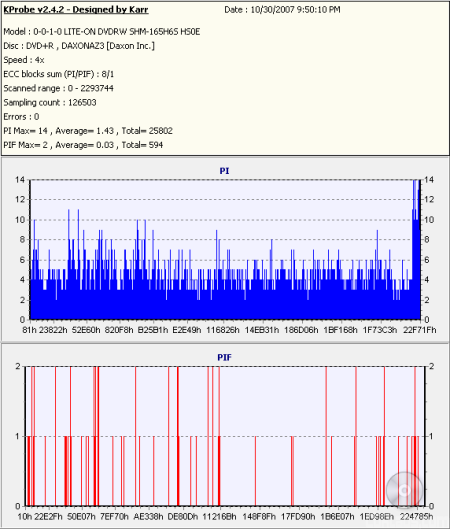

To test the drive's writing quality I used Lite-On IT's KProbe2. Written by Karr Wang, this utility can be used to test the number of C1 and C2 errors on a disc. For these tests I used a Lite-On LTR-52246S (firmware 6S0F) and read the discs at 32x.
The DRU-840As writing quality was very good. By looking at the KProbe screenshots, you can see that the discs burned by the drive had a low number of C1 errors and there were no C2 errors at all.
For the rewriting tests I created 400MB of files on the hard drive and wrote them in DAO mode using Nero. To test the packet writing speeds I copied and pasted the same files off the hard drive onto a CD-RW disc using DLA from Sonic. Verbatim's 32x Ultra Speed CD-RW media was used for these tests.
While the DRU-840A uses CAV when writing to CD-R discs, it uses Z-CLV, or Zone CLV, when rewriting at 32x. By looking at the screenshot above, you can see that it uses a total of three "zones" to reach its maximum speed. The drive starts writing at 16x and jumps to 24x at about the 9 minute mark.The SH-S203B writes at this speed until about the 29 minute mark. When it reaches this point, its writing speed increases to 32x and stays there until the end of the session.
Software | Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
Nero | 2:24 | 2:22 | 2:34 | 2:40 |
DLA Write | 3:28 | 3:28 | 2:38 | 2:33 |
DLA Read | 1:26 | 1:27 | 1:38 | 2:20 |
Sony's new DVD writer didn't do as well as some of the other drives we've tested. Due to its Z-CLV writing method, the DRU-840A took 2:24 to write 400MB with Nero and a whopping 3:28 to do the same with DLA.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Quick Erase | 18 seconds | 18 seconds | 16 seconds | 14 seconds |
Full Erase | 3:16 | 3:15 | 3:39 | 5:01 |
The DRU-840A also erases at 32x. While it didn't have the fastest quick erase time out of the four drives here, it was able to do a full erase in a respectable 3:16.
Nero CD Speed v4.7.7.5 - DVD-ROM:
A little editorial note here. Like a CD-ROM, you will get different benchmark results depending on what kind of discs you are using. You are probably going to get varying results from a full data disc to a single layer movie disc. You're also going to get different results for single and dual layer discs.
The CD Speed website recommends using a single layer DVD-ROM disc with a capacity of at least 4GB. If you use a dual layer disc you probably won't get the best results because most DVD-ROM drives slow down to read them. Some even slow down to read single layer DVD-Video discs. To make a long story short, I am using a 4.37GB single layer, single sided disc for this test.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.15x 6.73x 16.24x |
12.13x 6.72x 16.21x |
12.14x 5.36x 16.08x |
12.00x 6.54x 16.05x |
Seek Times Random: 1/3: Full: |
96ms 116ms 185ms |
96ms 113ms 186ms |
94ms 106ms 166ms |
119ms 148ms 215ms |
CPU Usage 1x: 2x: 4x: 8x: |
10% 8% 14% 27% |
9% 6% 10% 20% |
3% 7% 12% 86% |
5% 9% 18% 34% |
The DRU-840A performed very well when reading single layer DVD-ROM's. In our tests it started reading at 6.73x and reached a maximum transfer speed of 16.24x.Looking at the other scores, you can see that the drive's seek times were also quite good.
Nero CD Speed v4.7.7.5 - DVD-R, DVD-RW and DVD-RAM:
First, we'll look at the drive's DVD-R and DVD-RW reading performance. For this I made copies of our DVD-ROM test disc using some general use 4x DVD-R and 2x DVD-RW media from Verbatim and then ran our usual DVD read tests with CD Speed. For the DVD-RAM tests, media from Maxell was used. The results are below.
Verbatim DVD-R
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.18x 6.74x 16.28x |
12.16x 6.72x 16.25x |
12.18x 5.81x 16.28x |
12.03x 6.59x 16.08x |
Seek Times Random: 1/3: Full: |
113ms 126ms 197ms |
116ms 132ms 202ms |
122ms 126ms 203ms |
127ms 164ms 234ms |
CPU Usage 1x: 2x: 4x: 8x: |
12% 8% 15% 30% |
11% 6% 12% 24% |
4% 7% 23% n/a |
6% 10% 19% 36% |
Verbatim DVD-RW
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.05x 5.00x 12.10x |
9.03x 4.99x 12.08x |
9.23x 5.08x 12.34x |
9.13x 5.01x 12.20x |
Seek Times Random: 1/3: Full: |
121ms 132ms 208ms |
122ms 137ms 213ms |
124ms 134ms 273ms |
133ms 182ms 265ms |
CPU Usage 1x: 2x: 4x: 8x: |
10% 8% 14% 27% |
9% 6% 11% 20% |
5% 9% 26% n/a |
6% 10% 19% 37% |
Verbatim DVD-R DL
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.25x 5.14x 12.32x |
9.23x 5.13x 12.30x |
9.19x 5.07x 12.25x |
9.08x 5.04x 12.11x |
Seek Times Random: 1/3: Full: |
122ms 127ms 201ms |
122ms 137ms 206ms |
121ms 130ms 204ms |
154ms 193ms 266ms |
CPU Usage 1x: 2x: 4x: |
13% 9% 18% |
12% 8% 15% |
7% 99% n/a |
6% 10% 19% |
The DRU-840A had no problems reading DVD-R, DVD-RW and DVD-R DL media. In our tests, the drive read DVD-R discs at 16x, and both DVD-RW and DVD-R DL media at a respectable 12x.
Maxell 12x DVD-RAM
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
10.22x 5.92x 12.05x |
10.20x 5.91x 12.02x |
10.23x 5.93x 12.00x |
10.24x 5.93x 12.03x |
Seek Times Random: 1/3: Full: |
138ms 150ms 258ms |
138ms 157ms 253ms |
177ms 205ms 341ms |
175ms 204ms 274ms |
CPU Usage 1x: 2x: 4x: 8x: |
10% 11% 16% 26% |
15% 9% 12% 19% |
13% 9% 15% n/a |
5% 10% 18% 36% |
Sony's new drive has a maximum transfer speed of 12x when reading DVD-RAM discs. By looking at the screenshot you can see that it starts reading at 5.92x and accelerates, reaching 12x at the 2.7GB mark.
Nero CD Speed v4.7.7.5 - DVD+R and DVD+RW:

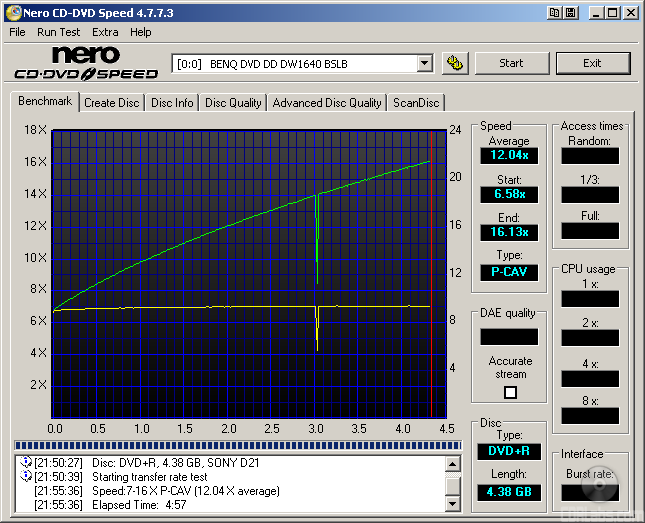

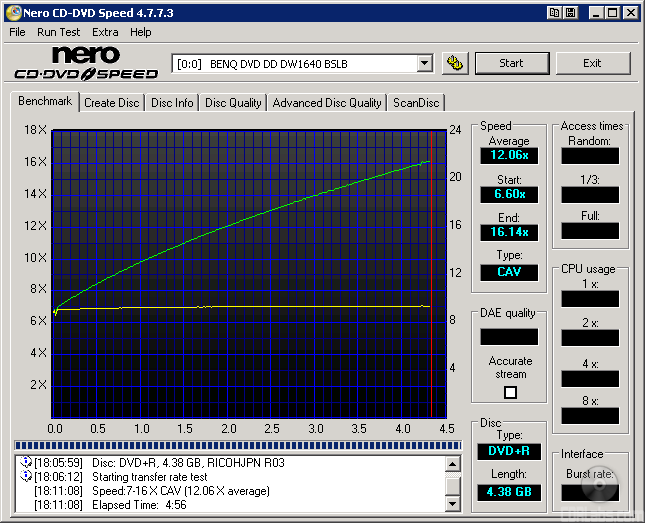

Next we'll look at the drive's DVD+R and DVD+RW reading performance. For this I made a copy of our DVD-ROM test disc using some 4x DVD+R and 2.4x DVD+RW media from Verbatim. I then ran our usual DVD read tests with CD Speed. The results are below.
Verbatim DVD+R
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.16x 6.73x 16.26x |
12.14x 6.73x 16.23x |
12.16x 5.77x 16.26x |
12.04x 6.58x 16.11x |
Seek Times Random: 1/3: Full: |
113ms 124ms 201ms |
114ms 132ms 202ms |
119ms 132ms 212ms |
127ms 162ms 244ms |
CPU Usage 1x: 2x: 4x: 8x: |
13% 8% 15% 31% |
12% 6% 11% 23% |
6% 7% 25% 90% |
6% 10% 19% 37% |
Verbatim DVD+RW
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.05x 5.01x 12.10x |
9.03x 5.00x 12.08x |
9.23x 5.10x 12.34x |
9.13x 5.04x 12.20x |
Seek Times Random: 1/3: Full: |
121ms 136ms 203ms |
122ms 137ms 205ms |
140ms 159ms 263ms |
138ms 184ms 268ms |
CPU Usage 1x: 2x: 4x: 8x: |
10% 8% 15% 27% |
9% 6% 11% 21% |
13% 10% 31% 98% |
6% 10% 19% 36% |
The DRU-840A's performance with DVD+R and DVD+RW media was very similar to what we saw with DVD-R and DVD-RW media.The drive read DVD+R discs at 16x and DVD+RW media at 12x.
Verbatim DVD+R DL
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
9.25x 5.14x 12.33x |
9.23x 5.12x 12.30x |
9.19x 5.02x 12.26x |
9.09x 5.02x 12.11x |
Seek Times Random: 1/3: Full: |
126ms 139ms 204ms |
122ms 134ms 204ms |
112ms 119ms 190ms |
153ms 186ms 273ms |
CPU Usage 1x: 2x: 4x: |
13% 9% 19% |
12% 8% 15% |
28% 7% n/a |
5% 10% 18% |

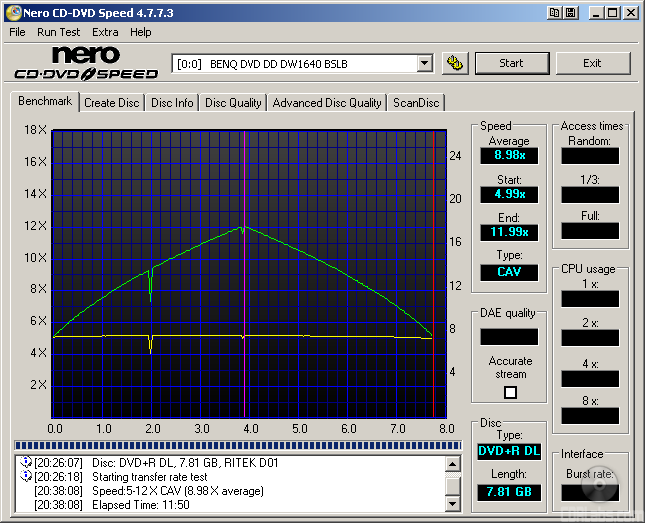

Reading Verbatim's double layer DVD+R media wasn't an issue for Sony's new drive either. The DRU-840A started reading at 5.14x and reached a maximum transfer speed of 12.33x.
Nero CD Speed v4.7.7.5 - DVD-Video:
For these tests I am using the US version of Transformers: The Movie on DVD. The disc is over 4GB and single sided.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
Transfer Speed Average: Start: End: |
12.02x 6.63x 16.08x |
12.00x 6.65x 16.05x |
12.02x 5.36x 16.08x |
6.03x 3.33x 8.07x |
Seek Times Random: 1/3: Full: |
96ms 112ms 184ms |
95ms 112ms 181ms |
94ms 106ms 165ms |
126ms 153ms 217ms |
CPU Usage 1x: 2x: 4x: 8x: |
10% 8% 14% 28% |
9% 5% 11% 22% |
3% 7% 12% 86% |
5% 9% 18% 38% |
The DRU-840A didn't slow down very much when reading single layer DVD videos. It started out at about 6.63x and reached a maximum read speed of 16.08x. Sony's new drive was also fairly quick when reading dual layer discs. By looking at the screenshot below, you can see that the drive's transfer speeds peaked at about 12x.
To see how well the DRU-840A worked as a DVD player, I watched a few scenes from Transformers: The Movie and Star Wars: The Phantom Menace using Nero Showtime. The drive had no problems playing back these movies with either program and was fairly quiet.
DVD Write and ReWrite Tests - Nero Burning Rom 7.10.1.0 andDLA 5.20:
To test the DVD writing performance of Sony's new drive I used Taiyo Yuden 16x DVD+R, Taiyo Yuden 16x DVD-R, Verbatim 8x DVD+RW and Verbatim 6x DVD-RW media. To get the writing times, a 4.38GB image was burned to our test discs using Nero.
When writing to DVD+R and DVD-R media at 20x, the DRU-840A uses CAV. By looking at the screenshots above, you can see that Sony's new drive starts writing at about 8.4x and accelerates, reaching its maximum speed at the end of the disc.
The DRU-840A also features 8x DVD+RW and 6x DVD-RW writing speeds. While the drive uses CLV when writing to DVD-RW media, it uses Z-CLV to reach its maximum DVD+RW writing speed.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
DVD+R | 4:51 | 4:54 | 5:08 | 5:16 |
DVD-R | 4:40 | 4:41 | 5:05 | 4:47 |
DVD+RW | 7:28 | 7:31 | 8:04 | 7:40 |
DVD-RW | 10:01 | 10:02 | 10:47 | 10:20 |
Sony's new "Super Multi" drive performed very well in our DVD writing tests. The DRU-840A turned in some of the fastest DVD±R and DVD±RW writing times we've seen, beating the drives from Lite-On and LG by a small margin.
To check the media compatibility of the DRU-840A, I ran a few tests using some of the media available in my area. The media types, along with the average time it took the drive to write our 4.38GB image, are listed below.
Manufacturer ID | Max Write Speed |
Average Write Time |
|
Daxon 16x DVD+R | DAXONAZ3 | 16x | 5:48 |
Memorex 16x DVD+R | RICOHJPN R03 | 18x | 5:15 |
RiDATA 16x DVD+R | RITEKR04 | 16x | 5:48 |
Sony 16x DVD+R | SONYD21 | 16x | 5:47 |
Taiyo Yuden 16x DVD+R | YUDEN000T03 | 20x | 4:51 |
Verbatim 16x DVD+R | MCC-004 | 20x | 4:53 |
Daxon 16x DVD-R | DAXON016S | 16x | 5:42 |
Memorex 16x DVD-R | CMC MAG.AM3 | 18x | 5:10 |
RiDATA 16x DVD-R | RITEKF1 | 16x | 5:49 |
Sony 16x DVD-R | SONY16D1 | 18x | 5:07 |
Taiyo Yuden 16x DVD-R | TYG03 | 20x | 4:40 |
Verbatim 16x DVD-R | MCC 03RG20 | 18x | 5:08 |

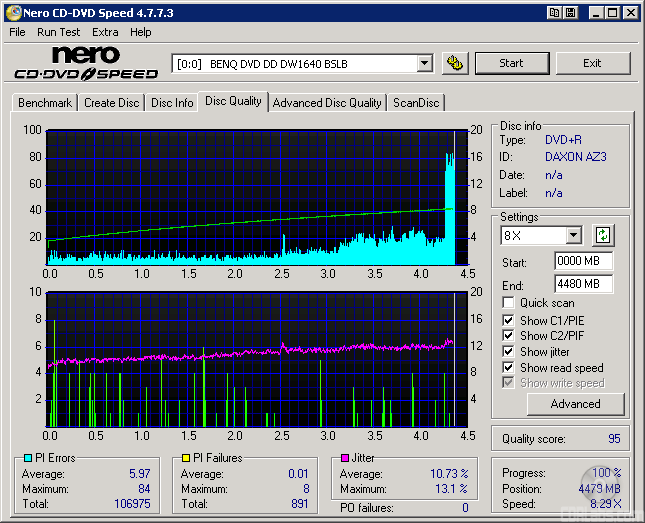

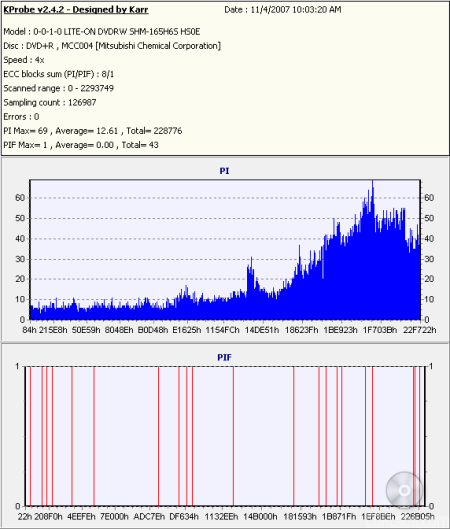

So what about writing quality? Testing a drive's DVD writing quality isn't easy. Until now, there were very few options, unless you wanted to shell out thousands of dollars for a certified test machine. Thanks to KProbe, we can test a disc's PI (Parity Inner) and PIF (Parity Inner Fail) rates.For these tests I used a Lite-On SHM-165H6S (firmware HS0E) and read the discs at 4x with the PI and PIF ECC sums set to 8 and 1 respectively. For comparison, I also tested the discs on a BenQ DW1640 (firmware BSLB). When combined with Nero CD Speed, the DW1640 is able to report PI Errors, PI Failures, Parity Outer Failures and even jitter levels. For this test, the discs are read at 8x with both the PI and PIF ECC sums set to 8.

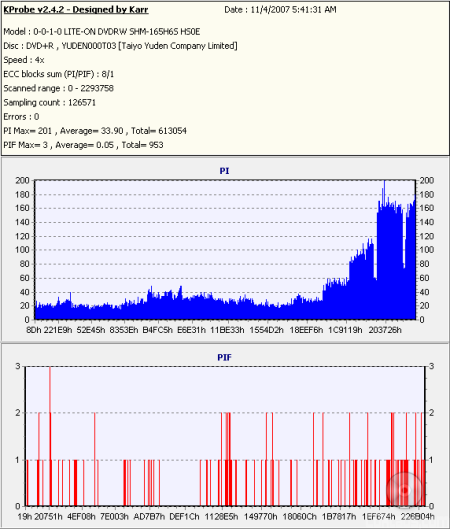

So what are "good" results supposed to look like? With KProbe, the PI errors should not exceed 280 and the number of PIF errors should stay below 4. When testing with CD Speed, the number of PI errors should stay below 280 as well. However, because it scans with an ECC sum of 8, a higher number of PIF errors is acceptable, as long as they do not exceed 32. Since POF errors are uncorrectable, we really don't want to see any of them at all.

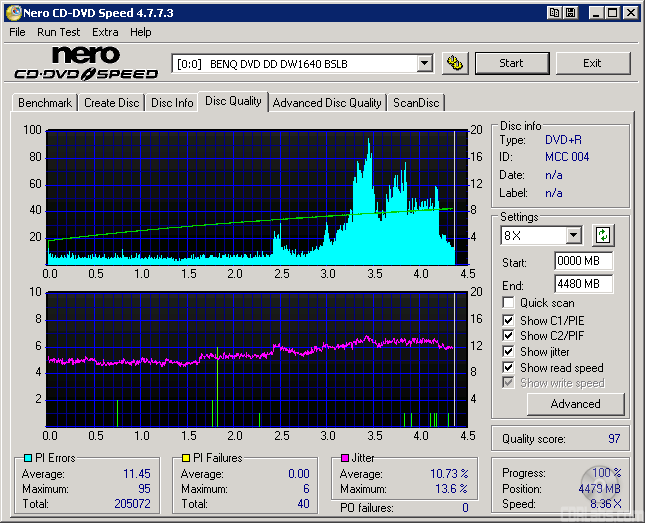

I also put these discs through a "stress test" by reading them back at 16x with the DW1640. By reading these discs back at this speed, we can see if there are any readability issues caused by the number of errors or high levels of jitter.
|
|
|
|
|
|

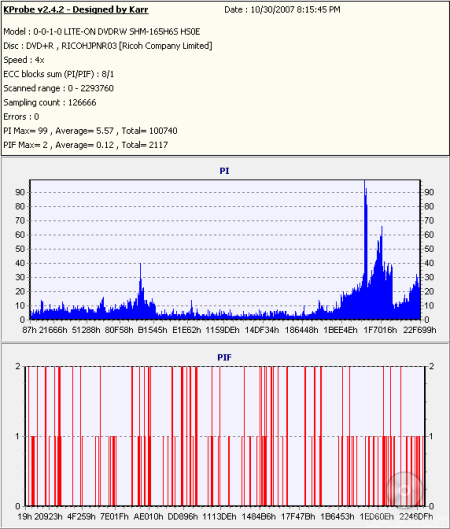

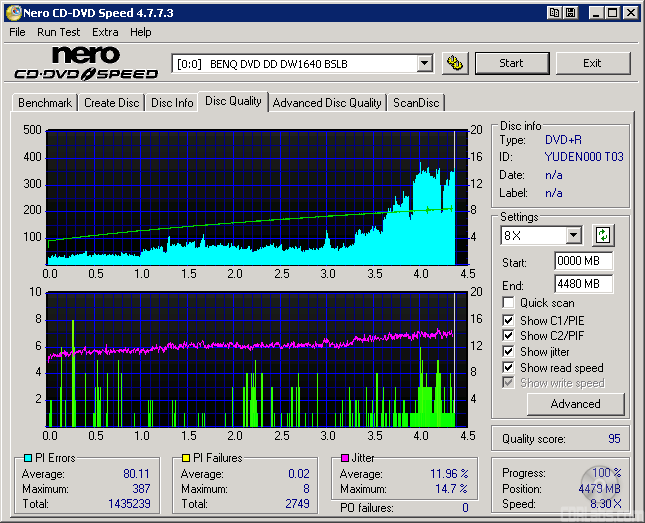

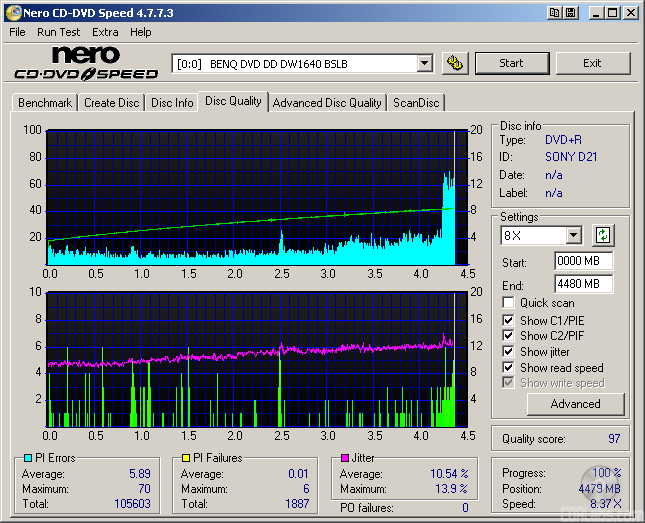

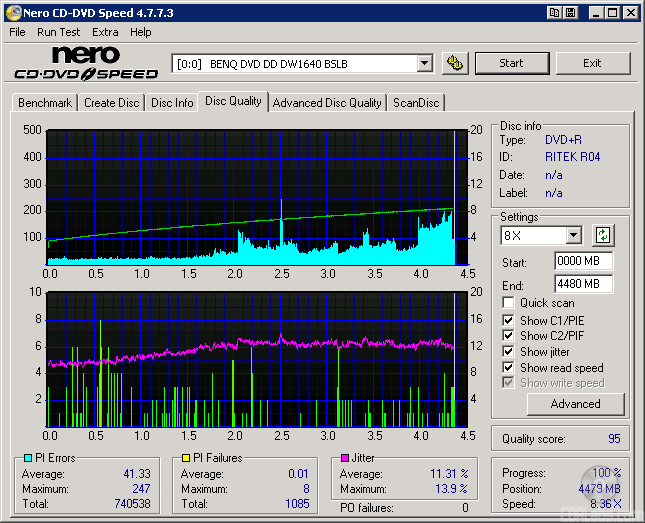

The DRU-840A's writing quality was fairly good with most of the DVD+R media we tested. In most cases, the PI/PIF rates stayed well within acceptable limits. Surprisingly, the worse results came from Taiyo Yuden's 16x DVD+R media. When scanned with the BenQ DW1640, the PI rate was a lot higher than we'd like to see.
|
|
|
|
|
|

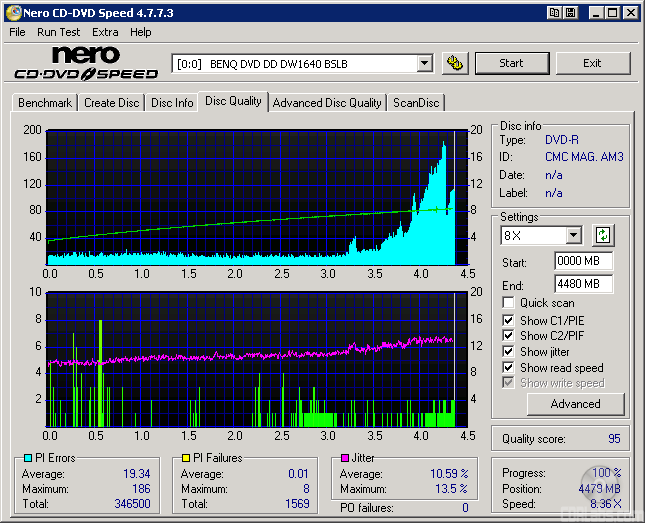

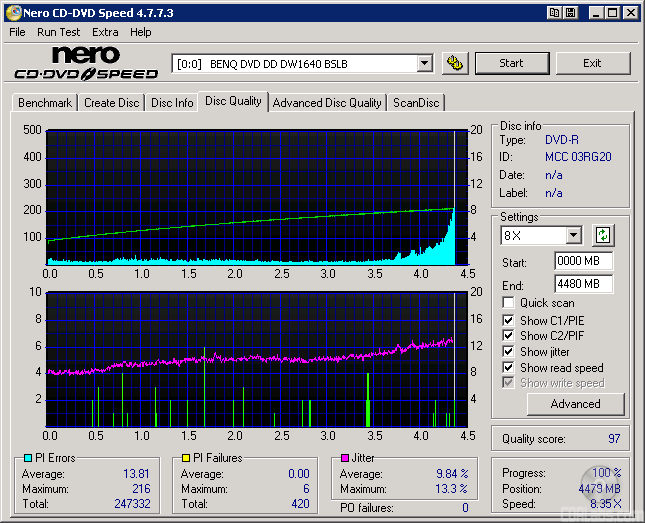

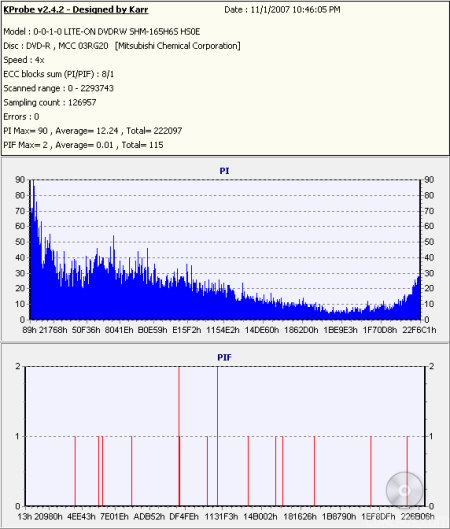

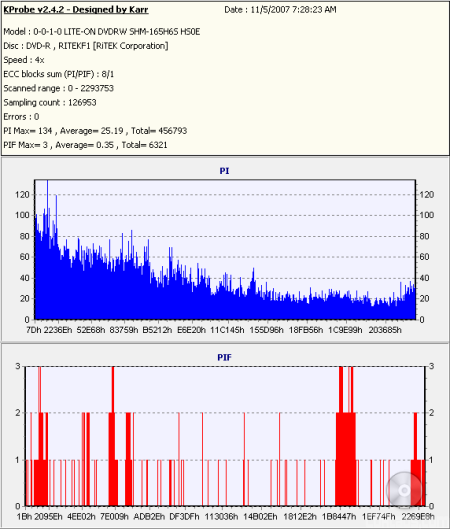

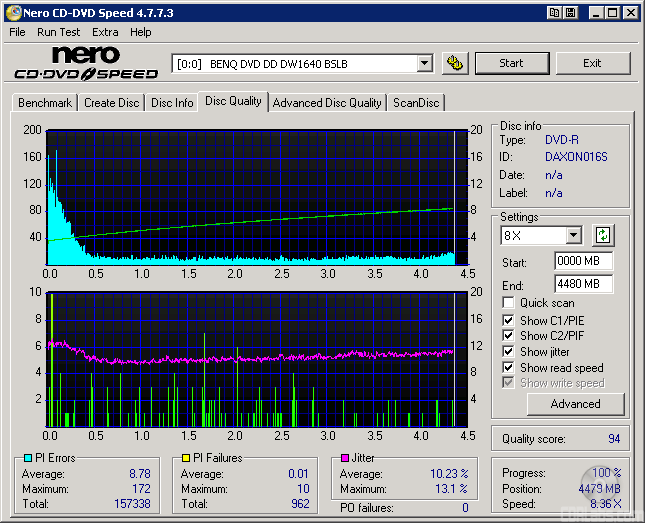

Lastly, here are some results from our DVD-R test media. With the exception of Taiyo Yuden's 16x DVD-R media,the PI/PIF rates remained within acceptable limits when tested with both KProbe and CD Speed.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
DVD+RW Quick | 2 seconds | 3 seconds | 5 seconds | 5 seconds |
DVD+RW Full | 7:28 | 7:28 | 8:07 | 7:31 |
DVD-RW Quick | 27 seconds | 27 seconds | 57 seconds | 27 seconds |
DVD-RW Full | 9:55 | 9:56 | 10:52 | 10:26 |
To test the DRU-840A's packet writing performance I used DLA 5.20. Verbatim 8x DVD+RW, Verbatim 6x DVD-RW and Maxell 12x DVD-RAM media were used once again.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
DVD+RW Write | 6:43 | 6:44 | 7:15 | 7:02 |
DVD+RW Read | 6:57 | 6:46 | 6:12 | 6:38 |
DVD-RW Write | 8:21 | 8:25 | 9:02 | 8:24 |
DVD-RW Read | 6:29 | 6:55 | 6:12 | 6:31 |
DVD-RAM Write | 11:12 | 12:50 | 13:52 | 13:12 |
DVD-RAM Read | 5:24 | 6:17 | 5:28 | 5:32 |
Sony's new drive performed pretty well in our packet writing tests. The DRU-840A turned in some impressive times when writing to DVD-RW, DVD+RW and DVD-RAM media, but wasn't as fast as some of the other drives when reading the data back.
Double Layer DVD Write Tests - Nero Burning Rom 7.10.1.0:
To test the double layer DVD writing performance of the DRU-840A, I used DVD+R DL and DVD-R DL media from MAM-A, Memorex, RiDATA and Verbatim. I created about 8GB of random files and directories on my hard drive and then burned them to our test discs with Nero.
While the DRU-840A is able to write to DVD+R DL media at 12x, discs capable of this speed have not gone into mass production yet. Once 16x DVD+R DL media starts to ship, I'll go back and rerun these tests. In the meantime, here are some results with media that is currently available
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
DVD+R DL Write | 13:15 | 13:07 | 17:48 | 14:12 |
When writing at 10x, Sony's new drive took a little more than 13 minutes to write 8001MB of data. While this wasn't enough to top the SH-S203B, the DRU-840A was a good minute faster than the GSA-H55L and more than four minutes faster than the LH-20A1L. So what about writing quality? Take a look below.
|
|
|
|

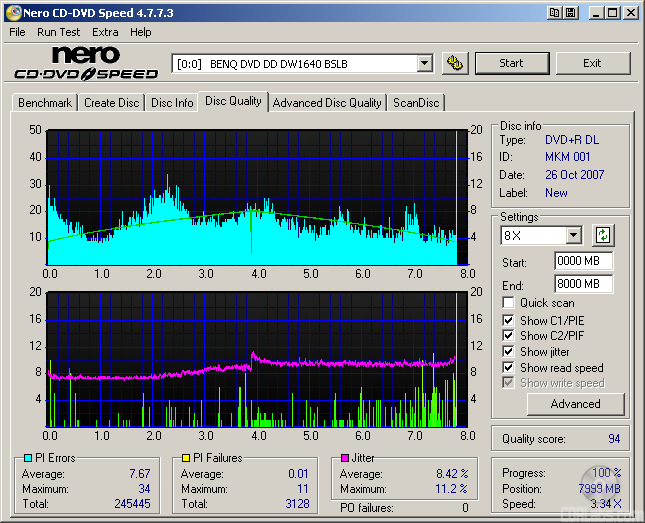

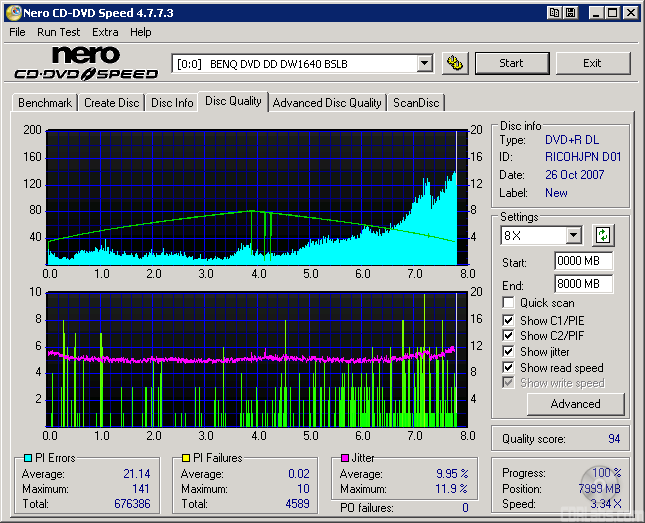

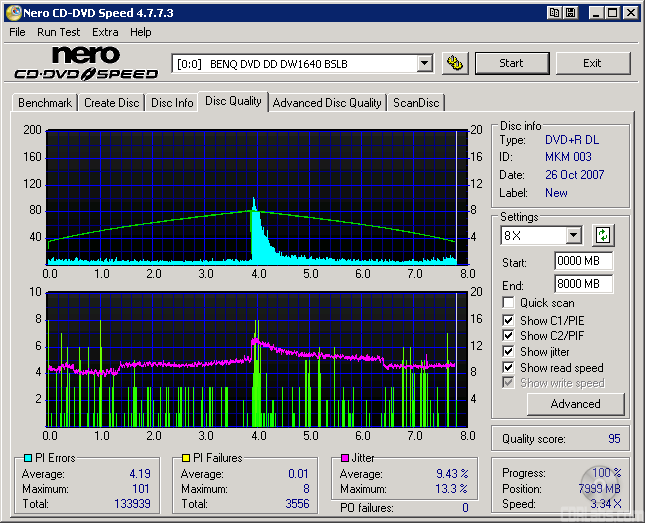

The writing quality was pretty good with the DVD+R DL media from Verbatim and MAM-A. Aside from a few isolated spikes, the PI/PIF rates stayed within acceptable limits. Unfortunately, the results weren't as good with Memorex's 2.4x DVD+R DL media. When tested with KProbe and CD Speed, the error rates were very high at the layer change.
The DRU-840A also features 12x DVD-R DL writing speeds. Unfortunately, media capable of these speeds isn't available yet either. Once discs rated at this speed start to ship, I'll go back and rerun these tests. Until then, here are some results with media that is currently available.
Sony DRU-840A |
Samsung SH-S203B |
Lite-On LH-20A1L |
LG GSA-H55L |
|
DVD-R DL Write | 13:38 | 13:36 | 18:33 | 13:26 |
The DRU-840A performed very well when writing to DVD-R DL media. While not as fast as the drives from Samsung and LG, it took only 13:38 to write 8001MB of data. So what about writing quality? Take a look below.
|
|
|

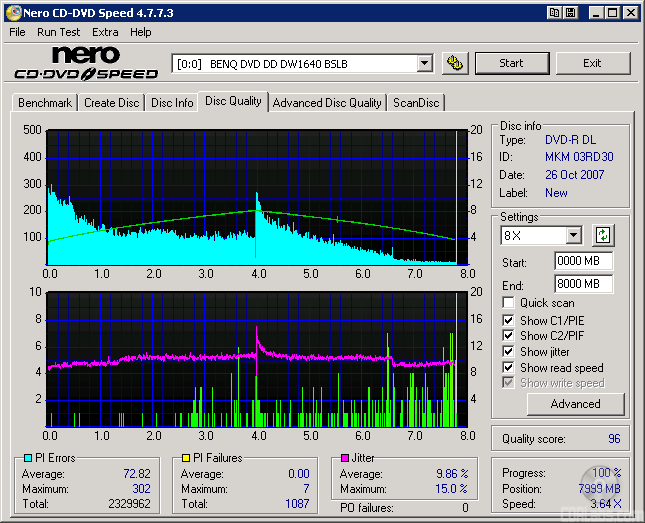

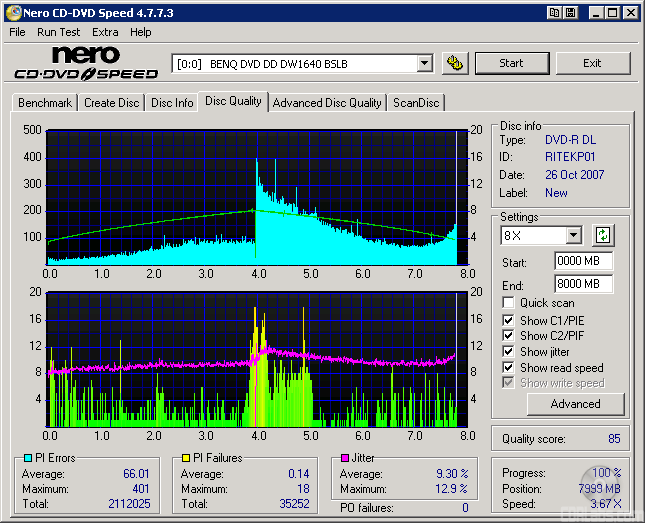

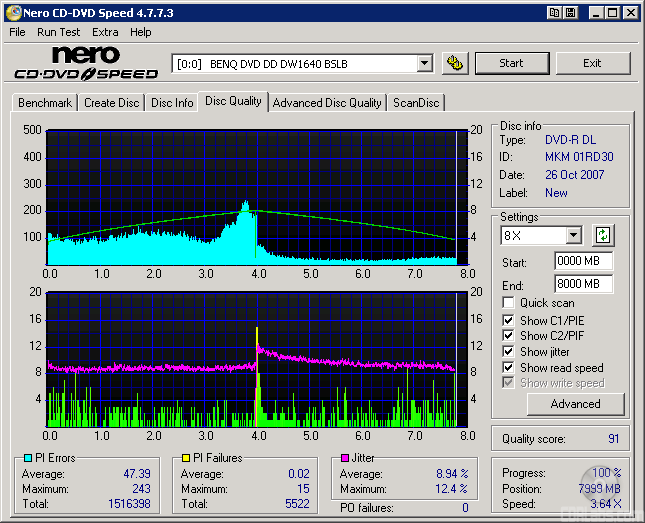

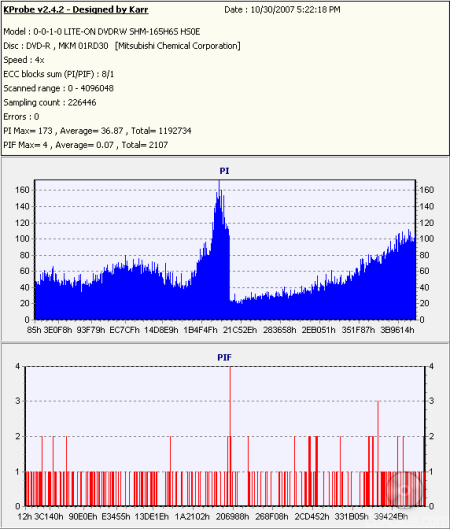

The DRU-840A yielded some acceptable results with Verbatim's 4x DVD-R DL media. The PI/PIF rates stayed within acceptable limits and there were no readability problems. Unfortunately, the writing quality wasn't nearly as good with RiDATA's 4x DVD-R DL or Verbatim's 8x DVD-R DL media. The error rates were considerably higher, especially when scanned with the DW1640.
Performance Revisited:
Sony's new "Super-Multi" drive performed as expected throughout most of our tests. When writing DVD's, the DRU-840A turned in some impressive times with DVD±R, DVD±R DL and DVD-RAM media. However, there were a few cases where the writing quality could have been better. Reading DVD's wasn't a problem for the drive either. The DRU-840A was able to read single layer DVD-ROM's and DVD±R discs at 16x and other types of recordable media at an impressive 12x.
The DRU-840A also did relatively well in our CD read tests. With the Turbo Boost enabled, the drive read pressed and CD-R discs at speeds as high as 48x and had some fairly good seek times. Unfortunately, its CD writing performance wasn't as impressive. The DRU-840A took longer than some of the other drives when writing to CD-R media and its Z-CLV writing method put it at a slight disadvantage in our rewriting tests. With all things considered, the Sony DRU-840A gets a 7 out of 10 for the performance section of this review.
Over the years, we've had a number of Sony's DVD writers in the 'Labs. Traditionally, these drives have gotten top marks for their features, performance and consumer friendliness and the DRU-840A is no exception. Based on the Samsung SH-S202H, Sony's new "Super-Multi" drive offers a healthy dose of features and some of the fastest DVD reading and writing speeds available.
The DRU-840A is the first drive from Sony with the ability to write to both DVD-R and DVD+R media at 20x. One of the faster drives we've tested, it took less than 5 minutes to write an entire 4.7GB DVD. The DRU-840A also turned in some respectabletimes with DVD-RW, DVD+RW and DVD-RAM media. However, without compatible media, we weren't able to test its full potential when writing to DVD±R DL discs. Nevertheless, the DRU-840A performed very well in our tests, burning 8GB of data in a little more than 13 minutes.
When it came to media compatibility, the DRU-840A gave us some mixed results. While the drive wrote toall of our test media at its rated speed or better, only three types worked at 20x. The DRU-840A's writing quality was fairly good for the most part. However, there is still room for improvement, especially with Taiyo Yuden 16x DVD±R and select DVD±R DL media. Hopefully, Sony can address this in a future firmware update.
Sony's new drive also performed relatively well in our DVD read tests. The drive was able to read single layer DVD-ROM's and DVD-Videos at 16x and had some very good seek times. Reading recordable media wasn't a problem for the DRU-840A either. In our tests, it read DVD±R discs at 16x, and DVD±RW, DVD±R DL and DVD-RAM media at an impressive 12x.
The DRU-840A was also fairly quick when reading CD's. With SpeedRead enabled, the drive read pressed and CD-R media at speeds as high as 48x and CD-RW discs at 40x. This level of performance carried over to our DAE tests, where the drive ripped audio CD's at 40x. Unfortunately, the DRU-840A lagged behind some of the other drives when writing CD's. It took longer than expected when writing to CD-R media and its Z-CLV writing method also put it at a slight disadvantage in our rewriting tests. Nevertheless, the DRU-840A's writing quality was quite good.
Like Sony's previous DVD writers, the DRU-840A isn't short on features. Along with support for all major CD and DVD formats, it has a 2MB buffer that is backed up by Sony's Power-Burn technology. While this buffer is a little smaller than what we'd like to see on a 20x DVD writer, this system worked flawlessly in our tests. The DRU-840A also has a good number of writing and rewriting speeds to choose from as well as the ability to set the book type of DVD+R/RW and DVD+R DL media. To top it off, Sony has included some pretty good documentation, a software bundle from Nero and a black replacement bezel.
Sony's new DVD writer is shipping now and can be purchased through some of the vendors listed on Pricegrabber.Prices vary depending on the seller, but the retail version of the DRU-840A can be picked up for less than $60.
Sony DRU-840A 20x DVD±RW/RAM |
|
Features: Installation: Performance: |
8 8 7 |
Overall: | 8 |
Highs:
- Writes to DVD-R and DVD+R media at 20x
- Writes to DVD+RW media at 8x
- Writes to DVD-RW media at 6x
- Writes to DVD+R DL and DVD-R DL media at 12x
- Reads and writes DVD-RAM media at 12x
- Reads single layer DVD-ROM's at 16x
- Reads DVD±R media at 16x
- Reads DVD±RW and DVD±R DL media at 12x
- Features 48x CD-R and 32x CD-RW writing speeds
- Good selection of writing and rewriting speeds
- Low seek times
- Features Sony's Power-Burn technology
- Supports bitsetting for DVD+R/RW and DVD+R DL media
- Includes software from Nero
- Supports 99 minute media
- Includes extra bezel
- Nice looking design
Lows:
- Questionable writing quality with some DVD±R and DVD±R DL media
- Had a hard time reaching its rated speeds when reading pressed CD's
- Slower than other drives when writing to CD-R and CD-RW media
