burning ISO images: ImgBurn vs. CDSpeed

SlySoft, Alcohol, VSO Software, NTI, etc.

burning ISO images: ImgBurn vs. CDSpeed

Postby dodecahedron on Fri May 05, 2006 12:40 pm

i burned the same ISO image to DVD-R with ImgBurn 1.3 and CDSpeed 4.51.1, the burn quality of CDSpeed seems better. scans below.

i haven't tested this thoroughly, but it seemed to me more than once that when i did a quality scan of certain media, it wasn't always as good as the test burns i did on the same media (before starting to use it regularly). the test burns are with CDSpeed.

i've never considered before the influence of the burning program on the burning quality.

anyone else encountered this ?
MediumRare, i know you use CDSpeed for burning images. can you make a test burn and compare ?

here are the 2 scans. same image, same media (same spindle), same burn speed etc.
(note: this is fake TY)
when i have more images of which i need more than 1 copy i'll test this again and see what happens.
Attachments
burned with CDSpeed.png
burned with CDSpeed.png (60.25 KiB) Viewed 2716 times
burned with ImgBurn.png
burned with ImgBurn.png (57.03 KiB) Viewed 2723 times
One Ring to rule them all, One Ring to find them,
One Ring to bring them all and in the darkness bind them
In the land of Mordor, where the Shadows lie
-- JRRT
M.C. Escher - Reptilien
User avatar
dodecahedron
DVD Polygon

Posts: 6865
Joined: Sat Mar 09, 2002 12:04 am
Location: Israel

Re: burning ISO images: ImgBurn vs. CDSpeed

Postby MediumRare on Sat May 06, 2006 4:35 am

dodecahedron wrote:anyone else encountered this ?
MediumRare, i know you use CDSpeed for burning images. can you make a test burn and compare ?

It's an extra step to create an image file so I can burn it with Nero CD-Speed. I do this because the trace of the burning speed is then recorded on the media and this shows up on quality scans with CD-Speed. I'm an "information junky":wink:- otherwise I wouldn't bother and would just do a burn with Nero itself. (OT: storing this information directly within Nero would be a wonderful enhancement). In contrast to other people, I have no issues with Nero (6.6).

I suspect you're just seeing a normal variation in media quality- esp. if these are "fake" TY (it's really only ~30% with 2 PIF spikes near the end). In cases like this, I tend to do additional scans to see if the problem is reproducible (I've seen a factor of 5 or more in PIE levels in repeated scans with my old SOHW-1213S). However, if you're seeing this on a regular basis, it's worth looking into.

I'll give it a try when I have some more time. I've been rather busy at work the last while and developing a display tool for KProbe results in my "spare time". And this weekend I have to help my wife with setting up an exhibition, so I don't know if I'll get around to doing this test.

G
User avatar
MediumRare
CD-RW Translator

Posts: 1768
Joined: Sun Jan 19, 2003 3:08 pm
Location: ffm

Re: burning ISO images: ImgBurn vs. CDSpeed

Postby dodecahedron on Sun May 07, 2006 1:52 am

MediumRare wrote:It's an extra step to create an image file so I can burn it with Nero CD-Speed. I do this because the trace of the burning speed is then recorded on the media and this shows up on quality scans with CD-Speed. I'm an "information junky":wink:- otherwise I wouldn't bother and would just do a burn with Nero itself. (OT: storing this information directly within Nero would be a wonderful enhancement). In contrast to other people, I have no issues with Nero (6.6).

1. what do you mean "an extra step"? do you mean when you're making data DVDs?
BTW how do you do that? which program do you use to make an ISO image of the data files?

2. you also get the drive and firmware recorded on the media.
One Ring to rule them all, One Ring to find them,
One Ring to bring them all and in the darkness bind them
In the land of Mordor, where the Shadows lie
-- JRRT
M.C. Escher - Reptilien
User avatar
dodecahedron
DVD Polygon

Posts: 6865
Joined: Sat Mar 09, 2002 12:04 am
Location: Israel

Postby MediumRare on Sun May 07, 2006 4:16 pm

dodecahedron wrote:1. what do you mean "an extra step"? do you mean when you're making data DVDs?
BTW how do you do that? which program do you use to make an ISO image of the data files?

I don't use ISO's- the images I burn are normally .NRG's, generated by (what else?) Nero.
Almost everything I burn starts out as a bunch of files on my hard drive (often they reside in a VIDEO_TS folder :wink:), so going via image file is always one step more than just just burning a compilation.
dodecahedron wrote:2. you also get the drive and firmware recorded on the media.

The drive used to write a disc is available on every DVD- at least in a rudimentary way.

You can see it with Nero. Click on the "Info" icon and then "Shift Control Refresh" to display the "Enhanced Disc Information".

This shows a wealth of infomation (including the ADIP with MID-Information). Look for "Disc Control Blocks"- there will be a lot of these entires. The first one shows information about the drive reading this info in the Vendor-ID. In my case, the LiteOn SHM-16P6S is identified as its Sony equivalent:
Code: Select all
<SONY            DW-G120AMV8Q   >
(this text is stored in the firmware, version MV8Q in this case).

The other entries all apply to the drive that wrote the disc, so to definitely identify it, it's easiest just to jump to the end of the displayed list to find this information, in this case:
Code: Select all
<SONY            DRU-510A    ®Sé¹>
(as highlighted in the attached screenshot).

G
Attachments

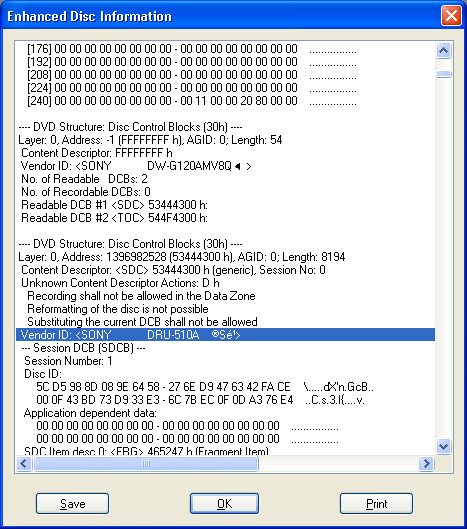

Excerpt from "Enhanced Disc Information". The burning drive is highlighted.
User avatar
MediumRare
CD-RW Translator

Posts: 1768
Joined: Sun Jan 19, 2003 3:08 pm
Location: ffm

Postby dodecahedron on Mon May 08, 2006 1:24 am

1. do you find that there's any difference if you burn a DVD video your way: burn the VIDEO_TS and AUDIO_TS to an .nrg image and then that to disc (with CDSpeed) vs. simply burning the DVD Video content directly with Nero ?
some people say Nero's Video DVD aren't quite compliant and sometimes make problems, i was wondering if it makes any difference how you burn the stuff.

2. here's Enahced Disc Information from a data DVD+R i burned:
Enhanced Disc Information

---- DVD Structure List (FFh) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 50
DVD Structure: 00 h: Physical, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 01 h: Copyright, SendDS: NO, ReadDS: YES, Struct Len: 4
DVD Structure: 02 h: Disc Key, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 04 h: Manufacturer's Info, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 05 h: Copyright Management, SendDS: YES, ReadDS: YES, Struct Len: 4
DVD Structure: 0C h: RMD in last Border-Out, SendDS: NO, ReadDS: YES, Struct Len: 30720
DVD Structure: 0D h: RMD recorded in RMA, SendDS: NO, ReadDS: YES, Struct Len: 32776
DVD Structure: 0E h: Pre-Recorded Info in Lead-In, SendDS: NO, ReadDS: YES, Struct Len: 106
DVD Structure: 0F h: Unique Disc Identifier, SendDS: NO, ReadDS: YES, Struct Len: 18
DVD Structure: 10 h: Physical Info in Lead-In, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 30 h: Disc Control Block, SendDS: NO, ReadDS: YES, Struct Len: 32768
DVD Structure: FF h: Structure List, SendDS: NO, ReadDS: YES, Struct Len: 48

---- DVD Structure: Physical Format Information (00h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-ROM (0), Part Version: 1.0x (1)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 1C523F h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Media Specific [16..63]:
00 00 00 4D 43 43 00 00 - 00 00 00 30 30 34 00 38 ...MCC.....004.8
23 54 37 12 02 54 6C 02 - 92 5F 15 15 0B 0B 08 08 #T7..Tl.._......
01 19 1B 0C 0C 0C 0D 01 - 00 00 00 00 00 00 00 00 ................

---- DVD Structure: DVD Copyright Information (01h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
Copyright Protection System Type: No copyright protection system (0)
Region Management Information: 0 h

---- DVD Structure: DVD Disc Manufacturing Information (04h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Data: 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
...

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 16 (10 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 16384 (4000 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: ADIP Information (11h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 258
Disc Category: DVD+R (Ah), Version Number: 1 (A1 h)
Disc size: 120 mm, Max read transfer rate: not specified (0F h)
Disc structure (02 h):
Recording layers per side: 1
Track path: -
Write-once recording layer
Recording density: channel bit length 0,133 µm, average track pitch 0,74 µm (00 h)
Data Zone allocation:
PSN of the first Physical Sector of the Data Zone: 30000 h ( 196608)
PSN of the last Physical Sector of the Data Zone: 26053F h ( 2491711)
Disc Application Code: Disc for General Purpose (0)
Extended Information indicators (07 h): [64..95] [96..127] [128..159] (2,4x, 4x, 6-8x, 6-16x)
Disc Manufacturer ID: MCC
Media Type ID: 004
Product revision number: 0
Number of Physical format information bytes in use in ADIP up to byte 63: 56 (38 h)
Primary recording velocity for the basic write strategy: 3.490 m/s (35)
Upper recording velocity for the basic write strategy: 8.440 m/s (84)
Wavelength: 655 nm
Normalized Write power dependency on Wavelength: 18
Maximum read power, P[r] at Primary velocity: 0.800 mW
P[ind] at Primary velocity: 9.200 mW
[target] at Primary velocity: 0.080
Maximum read power, P[r] at Upper velocity: 0.800 mW
P[ind] at Upper velocity: 12.300 mW
[target] at Upper velocity: -0.050
Extended Information block 0:
Format Number: 1 (4x+)
Primary recording velocity for the parameter set in this EI block: 14.000 m/s
Upper recording velocity for the parameter set in this EI block: 14.000 m/s
Extended Information block 1:
Format Number: 2 (6x+, 8x param.)
Primary recording velocity for the parameter set in this EI block: 21.000 m/s
Upper recording velocity for the parameter set in this EI block: 28.000 m/s
Extended Information block 2:
Format Number: 3 (6x+, 16x param.)
Primary recording velocity for the parameter set in this EI block: 21.000 m/s
Upper recording velocity for the parameter set in this EI block: 55.750 m/s
ADIP Information Block:
[000] A1 0F 02 00 00 03 00 00 - 00 26 05 3F 00 00 00 00 .........&.?....
[016] 00 00 07 4D 43 43 00 00 - 00 00 00 30 30 34 00 38 ...MCC.....004.8
[032] 23 54 37 12 02 54 6C 02 - 92 5F 15 15 0B 0B 08 08 #T7..Tl.._......
[048] 01 19 1B 0C 0C 0C 0D 01 - 00 00 00 00 00 00 00 00 ................
[064] 01 00 38 38 02 2C 5A 1A - 05 2E 23 10 04 1E 1D 01 ..88.,Z...#.....
[080] 00 00 02 2C 5A 1A 05 2E - 23 10 04 1E 1D 01 00 00 ...,Z...#.......
[096] 02 00 54 70 02 30 63 3C - 24 14 0C 0C 01 20 00 00 ..Tp.0c<$.......
[112] 00 00 02 40 66 42 24 14 - 0C 0C 01 20 00 00 00 2B ...@fB$........+
[128] 03 00 54 DF 02 30 63 3C - 24 14 0C 0C 01 20 00 00 ..T..0c<$.......
[144] 00 00 02 75 5E 58 24 14 - 0A 0A 01 20 00 00 00 59 ...u^X$........Y
[160] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
[176] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
[192] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
[208] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
[224] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
[240] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

---- DVD Structure: Write Protection Status (C0h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
Status: 00 h
Software Write Protection until Power down (SWPP): no
Persistent Write Protection (PWP): no
Media Cartridge Write Protection (CWP): no
Media Specific Write Inhibition (MSWI): no



and here's Enahced Disc Information from a video DVD-R i burned (with ImgBurn if i'm not mistaken. otherwise it would be CDSpeed):
Enhanced Disc Information

---- DVD Structure List (FFh) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 50
DVD Structure: 00 h: Physical, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 01 h: Copyright, SendDS: NO, ReadDS: YES, Struct Len: 4
DVD Structure: 02 h: Disc Key, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 04 h: Manufacturer's Info, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 05 h: Copyright Management, SendDS: YES, ReadDS: YES, Struct Len: 4
DVD Structure: 0C h: RMD in last Border-Out, SendDS: NO, ReadDS: YES, Struct Len: 30720
DVD Structure: 0D h: RMD recorded in RMA, SendDS: NO, ReadDS: YES, Struct Len: 32776
DVD Structure: 0E h: Pre-Recorded Info in Lead-In, SendDS: NO, ReadDS: YES, Struct Len: 106
DVD Structure: 0F h: Unique Disc Identifier, SendDS: NO, ReadDS: YES, Struct Len: 18
DVD Structure: 10 h: Physical Info in Lead-In, SendDS: NO, ReadDS: YES, Struct Len: 2048
DVD Structure: 30 h: Disc Control Block, SendDS: NO, ReadDS: YES, Struct Len: 32768
DVD Structure: FF h: Structure List, SendDS: NO, ReadDS: YES, Struct Len: 48

---- DVD Structure: Physical Format Information (00h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 0.0 (0)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 1CA65F h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 0 h
Start sector number of the next Border-In: 0 h
Media Specific [16..63]:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

---- DVD Structure: Physical Format Information of Control Data Zone in the Lead-in (10h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 0.0 (0)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 26127F h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 2FE10 h
Start sector number of the next Border-In: 2FFA0 h
Media Specific [16..63]:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

---- DVD Structure: DVD Copyright Information (01h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
Copyright Protection System Type: No copyright protection system (0)
Region Management Information: 0 h

---- DVD Structure: DVD Disc Manufacturing Information (04h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Data: 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
...

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 16 (10 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Media Type: 0, Layer: 0, Address: 16384 (4000 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Pre-recorded Information in Lead-in (0Eh) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 108
Field ID1: 1
Disc Appl. code: 40 h (64): Disc for unrestricted use, Consumer purpose disc
Disc Phys. code: C1 h (193)
Track pitch: 0,74 um
Reference velocity: 3.49 m/sec
Disc diameter: 12 cm
Reflectivity (1): 45 to 85 %
Reflectivity (2): 0 (reserved)
Media type (1): Organic dye
Media type (2): Recordable
Recording wavelength: 650 nm
Last adr. of Data Recordable Area: FD9ED8 h (16621272)
Part Version: 2.0x, Extension code: 2; (52 h)
Field ID2: 2
OPC Suggested Code: 87 h
Wavelength Code (all R media)/OPC Suggested Code (RW Ver.1.0): 0D h
Write Strategy Code: 10 66 78 80 hex
Field ID3: 3
Manufacturer ID: TYG02
Field ID4: 4
Manufacturer ID:
Field ID5: 5
[R V1.0] Manufacturer ID: ×¢""
[RW V1.0/R for General V2.0/R for Author V2.0] Write Strategy Code: AA A2 22 22 20 02 hex

---- DVD Structure: RMD in the last Border-out (0Ch) ----
Layer: 0, Address/Field: 0 (0 h), AGID: 0; Length: 30722
[ 0] RMD Format: 1
Disc Status: 1 (01 h, Disc is in DAO recording mode [Format 1])
Unique Disc ID: Random No: 30 h, Date[dmy]/Time[hms]: 00.00.0000 00:00:00
... (Copy of Pre-pit Information)
[ 1] Drive Manufacturer ID:
Serial Number #1:
Model Number #1:
1st field of Write Strategy code #1: 00000000 h
Recording Power #1: 00000000 h
Timestamp #1: 00 00 00 00 00 00 00 00 h
Power Calibration Address #1: 00000000 h
Running OPC Information #1:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
2nd field of Write Strategy code #1: 00000000 h
Recording Power by the 8-bit coded power #1: 0000 h
... (#2..4)
[ 2] User specific data [hex]: 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
[ 4] Invisible/Incomplete RZone Number (Last RZone Number): 0
Current Appendable Reserved RZone Number 1: 0
Current Appendable Reserved RZone Number 2: 0
[13] Drive Manufacturer ID #1:
Serial Number #1:
Model Number #1:
Recorded RMA address (ECC block address) #1: 0 h
Drive specific data #1:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 - 00 00 00 00
...(#2..8)
[14] Flexible Outer Disc Testing Area flag: 0
Testing address: 0 h

---- DVD Structure: Recording Management Area Data (0Dh) ----
Layer: 0, Address/Field: 0 (0 h), AGID: 0; Length: 32774
Last Recorded Sect No./Start Sect No. of Valid Format 3 RMD Set: 0 h (0)

---- DVD Structure: Unique Disc Identifier (0Fh) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 20
Random Number: 48
Date[dmy]/Time[hms]: 00.00.0000 00:00:

---- DVD Structure: Write Protection Status (C0h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
Status: 00 h
Software Write Protection until Power down (SWPP): no
Persistent Write Protection (PWP): no
Media Cartridge Write Protection (CWP): no
Media Specific Write Inhibition (MSWI): no


no vendor ID !!
i can't see in either any idication of which drive burned the disc.
maybe it's a software feature?
One Ring to rule them all, One Ring to find them,
One Ring to bring them all and in the darkness bind them
In the land of Mordor, where the Shadows lie
-- JRRT
M.C. Escher - Reptilien
User avatar
dodecahedron
DVD Polygon

Posts: 6865
Joined: Sat Mar 09, 2002 12:04 am
Location: Israel

Postby MediumRare on Mon May 08, 2006 5:29 pm

1. I haven't seen a difference since a finalizing bug in CD-Speed was eliminated. I know that there have been reports on incompatibility with Nero video DVD's. The only confirmed one I've seen is re. short VOB's: see http://forum.digital-digest.com/showthr ... adid=45025 (alexnoe occsionally refered to this in normal acerbic style).

2. Your information shows that one shouldn't make sweeping conclusions from limited data. [-X

Here's the (almost) complete Enhanced Date Information from the disc that the posted sample was from:

Code: Select all
Enhanced Disc Information

---- DVD Structure List (FFh) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 102
DVD Structure: 00 h: Physical, SendDS:  NO, ReadDS: YES, Struct Len: 2052
DVD Structure: 01 h: Copyright, SendDS:  NO, ReadDS: YES, Struct Len: 8
DVD Structure: 02 h: Disc Key, SendDS:  NO, ReadDS:  NO, Struct Len: 2052
DVD Structure: 03 h: BCA Info, SendDS:  NO, ReadDS:  NO, Struct Len: 192
DVD Structure: 04 h: Manufacturer's Info, SendDS:  NO, ReadDS: YES, Struct Len: 2052
DVD Structure: 05 h: Copyright Management, SendDS:  NO, ReadDS: YES, Struct Len: 8
DVD Structure: 06 h: Media Identifier, SendDS:  NO, ReadDS:  NO, Struct Len: 24
DVD Structure: 07 h: Media Key Block, SendDS:  NO, ReadDS:  NO, Struct Len: 24580
DVD Structure: 08 h: DDS Info, SendDS:  NO, ReadDS:  NO, Struct Len: 2052
DVD Structure: 09 h: DVD-RAM Medium Status, SendDS:  NO, ReadDS:  NO, Struct Len: 8
DVD Structure: 0A h: DVD-RAM Spare Area Info, SendDS:  NO, ReadDS:  NO, Struct Len: 16
DVD Structure: 0B h: DVD-RAM Recording Type Information, SendDS:  NO, ReadDS:  NO, Struct Len: 8
DVD Structure: 0C h: RMD in last Border-Out, SendDS:  NO, ReadDS:  NO, Struct Len: 30724
DVD Structure: 0D h: RMD recorded in RMA, SendDS:  NO, ReadDS:  NO, Struct Len: 32776
DVD Structure: 0E h: Pre-Recorded Info in Lead-In, SendDS:  NO, ReadDS:  NO, Struct Len: 110
DVD Structure: 0F h: Unique Disc Identifier, SendDS:  NO, ReadDS:  NO, Struct Len: 22
DVD Structure: 10 h: Physical Info in Lead-In, SendDS:  NO, ReadDS:  NO, Struct Len: 2052
DVD Structure: 11 h: ADIP Info, SendDS:  NO, ReadDS: YES, Struct Len: 260
DVD Structure: 20 h: DVD+R9 Layer Boundary Information, SendDS:  NO, ReadDS:  NO, Struct Len: 12
DVD Structure: 21 h: Shifted Middle Area Start Address (DVD-R DL), SendDS:  NO, ReadDS:  NO, Struct Len: 12
DVD Structure: 22 h: Regular Interval Layer Jump, SendDS:  NO, ReadDS:  NO, Struct Len: 12
DVD Structure: 23 h: Layer Jump Logical Block Address, SendDS:  NO, ReadDS:  NO, Struct Len: 12
DVD Structure: 24 h: Remapping Address (DVD-R DL), SendDS:  NO, ReadDS:  NO, Struct Len: 12
DVD Structure: 30 h: Disc Control Block, SendDS:  NO, ReadDS:  NO, Struct Len: 32772
DVD Structure: C0 h: Write Protection, SendDS:  NO, ReadDS:  NO, Struct Len: 8

---- DVD Structure: Physical Format Information (00h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD+R   (10), Part Version: 1.0x (1)
Disc Size: 120 mm,      Maximum Rate: <not specified> (F h)
Number of Layers: 1,    Track Path: Parallel Track Path (PTP),  Layer Type: recordable
Linear Density:         0,267 um/bit,  Track Density:  0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area:      23089F h
End Sector Number in Layer 0:                 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
  Disc Application Code: 0 / 0 h
  Extended Information indicators: 1 h
  Disc Manufacturer ID: MCC.....
  Media type ID: 002
  Product revision number: 0
  Number of Physical format information bytes in use in ADIP up to byte 63: 56
Media Specific [16..63]:
      00 00 01 4D 43 43 00 00 - 00 00 00 30 30 32 00 38    ...MCC.....002.8
      23 54 37 13 02 4A 71 02 - 90 66 16 16 0B 0B 0A 0A    #T7..Jq..f......
      01 1C 1E 0B 0C 12 12 01 - 00 00 00 00 00 00 00 00    ................

---- DVD Structure: DVD Copyright Information (01h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
Copyright Protection System Type: No copyright protection system (0)
Region Management Information: 0 h

---- DVD Structure: DVD Disc Manufacturing Information (04h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Data: 00 00 00 00 00 00 00 00 -  00 00 00 00 00 00 00 00
       ...

---- DVD Structure: Copyright Management Information (05h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Layer: 0, Address: 16 (10 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: Copyright Management Information (05h) ----
Layer: 0, Address: 16384 (4000 h), AGID: 0; Length: 6
CPR_MAI: 00 h

---- DVD Structure: DVD-RAM Spare Area Information (0x0A) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 0

---- DVD Structure: ADIP Information (11h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 258
Disc Category: DVD+R (Ah), Version Number: 1  (A1 h)
Disc size: 120 mm, Max read transfer rate: not specified  (0F h)
Disc structure (02 h):
    Recording layers per side: 1
    Track path: -
    Write-once recording layer
Recording density: channel bit length 0,133 µm, average track pitch 0,74 µm  (00 h)
Data Zone allocation:
   PSN of the first Physical Sector of the Data Zone: 30000 h (  196608)
   PSN of the last Physical Sector of the Data Zone: 26053F h ( 2491711)
Disc Application Code: Disc for General Purpose (0)
Extended Information indicators (01 h): [64..95]      (2,4x, 4x)
Disc Manufacturer ID: MCC
Media Type ID: 002
Product revision number: 0
Number of Physical format information bytes in use in ADIP up to byte 63: 56 (38 h)
Primary recording velocity for the basic write strategy: 3.490 m/s (35)
Upper recording velocity for the basic write strategy: 8.440 m/s (84)
Wavelength: 655 nm
Normalized Write power dependency on Wavelength: 19
Maximum read power, P[r] at Primary velocity: 0.800 mW
P[ind] at Primary velocity: 8.700 mW
ß[target] at Primary velocity: 0.130
Maximum read power, P[r] at Upper velocity: 0.800 mW
P[ind] at Upper velocity: 12.200 mW
ß[target] at Upper velocity: 0.020
Extended Information block 0:
  Format Number: 1 (4x+)
  Primary recording velocity for the parameter set in this EI block: 14.000 m/s
  Upper recording velocity for the parameter set in this EI block: 14.000 m/s
ADIP Information Block:
   [000] A1 0F 02 00 00 03 00 00 - 00 26 05 3F 00 00 00 00    .........&.?....
   [016] 00 00 01 4D 43 43 00 00 - 00 00 00 30 30 32 00 38    ...MCC.....002.8
   [032] 23 54 37 13 02 4A 71 02 - 90 66 16 16 0B 0B 0A 0A    #T7..Jq..f......
   [048] 01 1C 1E 0B 0C 12 12 01 - 00 00 00 00 00 00 00 00    ................
   [064] 01 00 38 38 02 26 60 38 - 06 30 22 10 08 20 1C 01    ..88.&`8.0".....
   [080] 00 00 02 26 60 38 06 30 - 22 10 08 20 1C 01 00 00    ...&`8.0".......
   [096] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [112] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [128] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [144] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [160] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [176] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [192] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [208] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [224] 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
   [240] 00 00 00 00 00 00 00 00 - 00 11 00 00 20 80 00 00    ................

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 0, Address: -1 (FFFFFFFF h), AGID: 0; Length: 54
Content Descriptor: FFFFFFFF h
Vendor ID: <SONY            DW-G120AMV8Q   >
No. of Readable   DCBs: 2
No. of Recordable DCBs: 0
Readable DCB #1 <SDC> 53444300 h:
Readable DCB #2 <TOC> 544F4300 h:

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 0, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 0
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 1, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 1
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 2, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 2
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 3, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 3
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 4, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 4
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 5, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 5
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 6, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 6
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 7, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 7
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 8, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 8
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 9, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 9
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h


...   ...

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 181, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 181
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 182, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 182
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 183, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 183
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 184, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 184
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 185, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 185
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 186, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 186
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 187, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 187
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 188, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 188
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 189, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 189
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 190, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 190
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 191, Address: 1396982528 (53444300 h), AGID: 0; Length: 8194
Content Descriptor: <SDC> 53444300 h (generic), Session No: 191
Unknown Content Descriptor Actions: D h
   Recording shall not be allowed in the Data Zone
   Reformatting of the disc is not possible
   Substituting the current DCB shall not be allowed
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- Session DCB (SDCB) ---
  Session Number: 1
  Disc ID:
      5C D5 98 8D 08 9E 64 58 - 27 6E D9 47 63 42 FA CE    \.....dX'n.GcB..
      00 0F 43 BD 73 D9 33 E3 - 6C 7B EC 0F 0D A3 76 E4    ..C.s.3.l{....v.
  Application dependent data:
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
      00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00    ................
  SDC Item desc 0: <FRG> 465247 h (Fragment Item)
   Fragment number: 1
   Fragment start address: 30000 h
   Fragment end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 0, Address: 1414480640 (544F4300 h), AGID: 0; Length: 8194
Content Descriptor: <TOC> 544F4300 h (generic), Session No: 0
Unknown Content Descriptor Actions: 0 h
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- TOC Blocks ---
  TOC Item desc 0: <TCI> 544349 h
   Session Status: last Session shall be the final Session on the disc. The disc has been finalized. (1)
   Session Number: 1
   Session start address: 30000 h
   Session end   address: 23089F h

---- DVD Structure: Disc Control Blocks (30h) ----
Layer: 1, Address: 1414480640 (544F4300 h), AGID: 0; Length: 8194
Content Descriptor: <TOC> 544F4300 h (generic), Session No: 1
Unknown Content Descriptor Actions: 0 h
Vendor ID: <SONY            DRU-510A    ®Sé¹>
--- TOC Blocks ---
  TOC Item desc 0: <TCI> 544349 h
   Session Status: last Session shall be the final Session on the disc. The disc has been finalized. (1)
   Session Number: 1
   Session start address: 30000 h
   Session end   address: 23089F h

All recorded DVD's (-R, +R, +RW, +RDL), I've looked at have had this information, in particular those I didn't burn myself (Sony DRU-510A, Philips, NEC, Samsung), so I assumed that the information is always present. It may be that they were all burned by Nero and that Nero and/or Nero CD-Speed add this information. Or maybe only LiteOn drives report it?

In any case, if you're not seeing this information, it's not universal. Someone else with better background knowledge or greater variety of burners/burning programs will have to nail this down. My information is apparently too one-sided. :o

G
User avatar
MediumRare
CD-RW Translator

Posts: 1768
Joined: Sun Jan 19, 2003 3:08 pm
Location: ffm

Postby dodecahedron on Mon May 08, 2006 5:47 pm

that is certainly a lot of Enhanced Disc Information :D
One Ring to rule them all, One Ring to find them,
One Ring to bring them all and in the darkness bind them
In the land of Mordor, where the Shadows lie
-- JRRT
M.C. Escher - Reptilien
User avatar
dodecahedron
DVD Polygon

Posts: 6865
Joined: Sat Mar 09, 2002 12:04 am
Location: Israel

Re: burning ISO images: ImgBurn vs. CDSpeed

Postby MacClipper on Fri Jul 14, 2006 9:29 am

MediumRare wrote:I'm an "information junky":wink:- otherwise I wouldn't bother and would just do a burn with Nero itself. (OT: storing this information directly within Nero would be a wonderful enhancement).


Same thinking here which is why my main burning program is CDSpeed for the past year or two now. Guess Nero still does not store metadata of the burn unlike CDSpeed.

Anyway, is there a good way to use CDSpeed to burn proper dual layer images (and its metadata of the burn with it) since CDSpeed does not make use of the MDS file unlike Imgburn/DD?

TIA.
MacClipper
Buffer Underrun

Posts: 36
Joined: Fri Aug 26, 2005 2:41 pm


Return to Other CD, DVD and Blu-ray Burning Software

Who is online

Users browsing this forum: No registered users and 0 guests

All Content is Copyright (c) 2001-2018 CDRLabs Inc.
